5 - 18
MAINTENANCE AND SERVICE
T9406

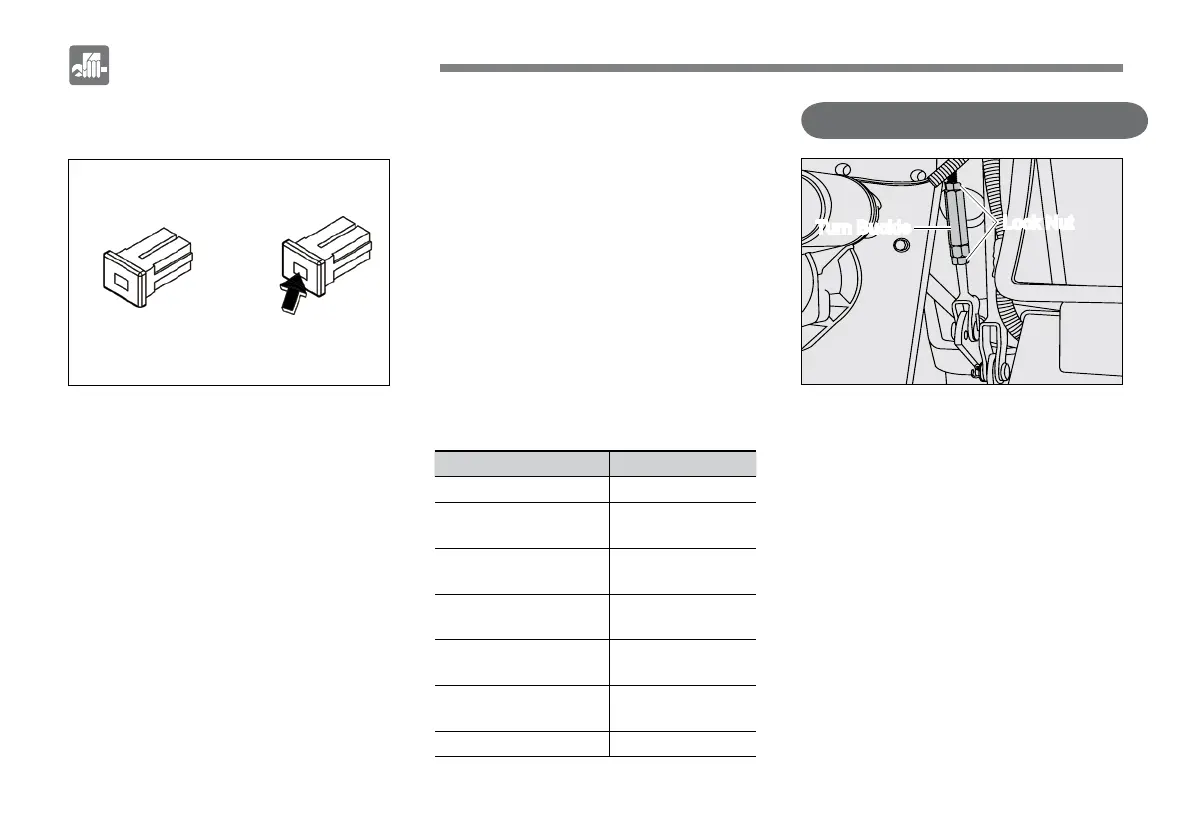

Open circuitNormal
<Inspection>
Check the fuse through the trans-
parent window to see if it is blown.
REPLACING LAMP BULB
If a lamp does not come on by oper-
ating the corresponding switch:
① Check the corresponding fuse.
②
If the fuse is intact, remove the
bulb socket from the lamp.
③ Remove the bulb from the socket
and check for blown filament.
④
If the filament is blown, replace
the bulb with a new bulb with the
same capacity.
►
Bulb Specifications
Headlamp
12V H4 55W
Turn signal lamp
(Front)
12V 21W
Turn signal lamp
(Rear)
12V 21W
Position lamp
(Front)
12V 5W
Stop lamp/
position lamp
12V 21W / 5W
Instrument cluster
lamp
12V 3.4W
Work lamp(
Rear)
12V 25W
ADJUSTING CLUTCH PEDAL
INCHING CABLE
After prolonged use of the clutch
pedal, play of its inching cable can
become excessive.
<Adjustment>
①
Open the side cover (left).
②
Loosen the lock nut and turn the
turnbuckle to adjust the free play
to the proper level.
③
After adjustment, make sure to
tighten the lock nut firmly.
④
Close the side cover.
►
12. CHECK AND ADJUST EACH PART
Lock Nut
Turn Buckle
T0407
