MAINTENANCE AND SERVICE
43
5
FUEL HOSE CHECKING

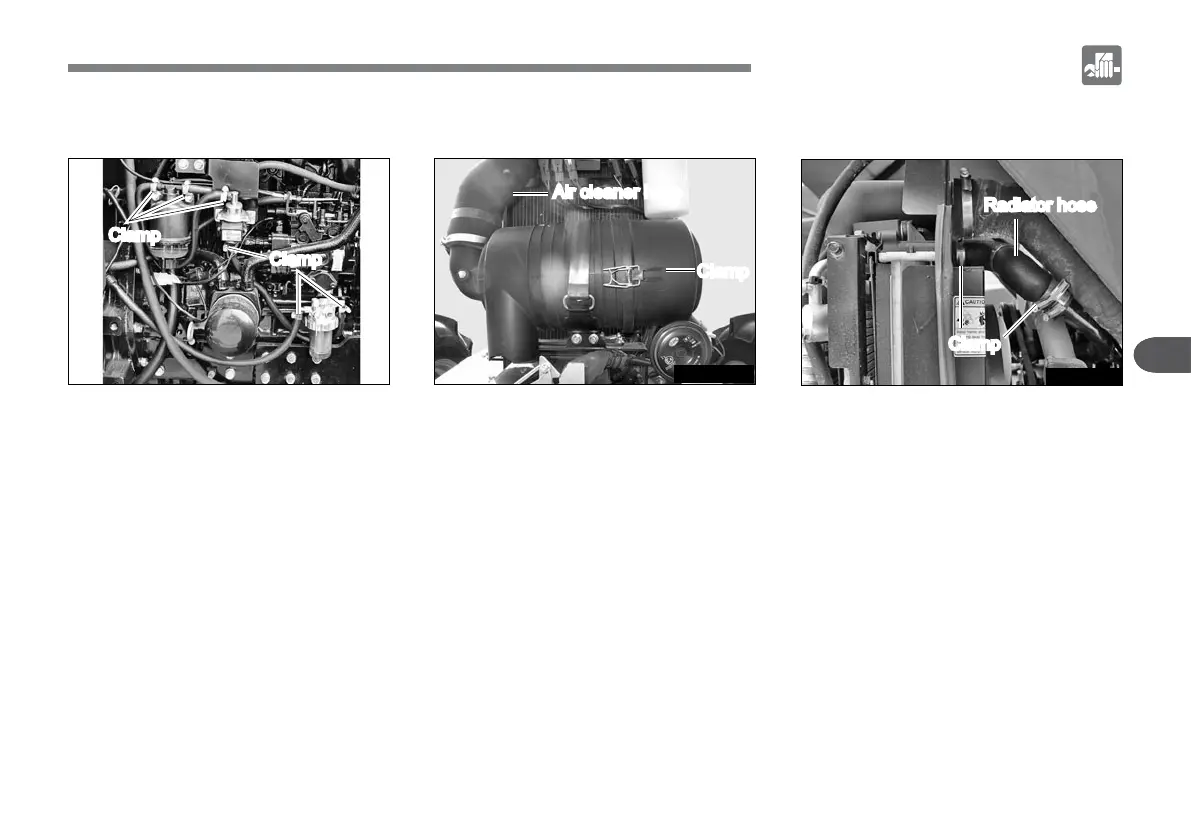

Check the fuel hose as follows :
①
Stop the engine. After the engine
is sufficiently cooled down, open
the hood.
② Check if the fuel hose is dam-
aged or leaks. Replace it if nec-
essary.
③ Tighten the clamp.
►
Clamp
T5NO504A
T4NO505A
Clamp
A I R C L E A N E R H O S E
CHECKING
Check the air cleaner hose as fol-
lows :
①
Stop the engine. After the engine
is sufficiently cooled down, open
the hood.
② Check if the air cleaner hose is
damaged or leaks. Replace it if
necessary.
③ Tighten the clamp.
►
Air cleaner hose
Clamp
RADIATOR HOSE CHECK-
ING
Check the radiator hose as follows :
①
Stop the engine. After the engine
is sufficiently cooled down, open
the hood.
② Check if the radiator hose is
damaged or leaks. Replace it if
necessary.
③ Tighten the clamp.
►
45NO507A
Radiator hose
Clamp
