CABIN SYSTEM
6
43
6

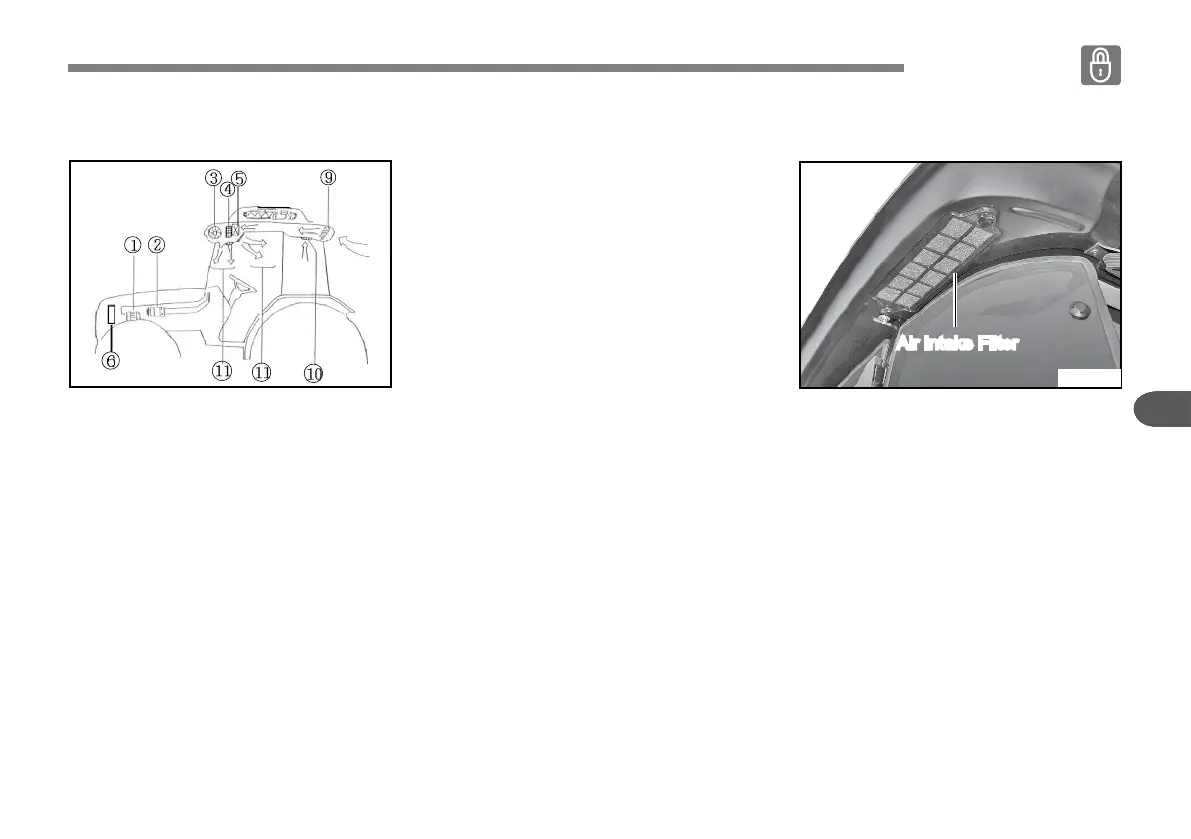

►CIRCULATION VENT
With the circulation vent set in any
position outside Air will still be pulled
into the cab.
① Alternator
② Compressor
③ Speed fan
④ Electric resistance
⑤ Evaporator
⑥ Condenser
⑨ Air filter
⑩ Recirculation inlets
⑪ Air vents
T72O616A
CAB AIR INTAKE FILTER
The "paper" filter is not suitable for
the treatment of pesticides and so
must be replaced by an "active car-
bon" filter available optionally. Once
the pesticide treatment is finished, it
is necessary to once again replace
the "Active carbon" filter with the pa-
per filter, since this is the only type
suited for filtering foreign particles
from the air.
►
45NO608A
Air Intake Filter
