TYPHOON Q500+ - ST10+ and CGO2+ Binding

ST10+ and CGO2+ Binding

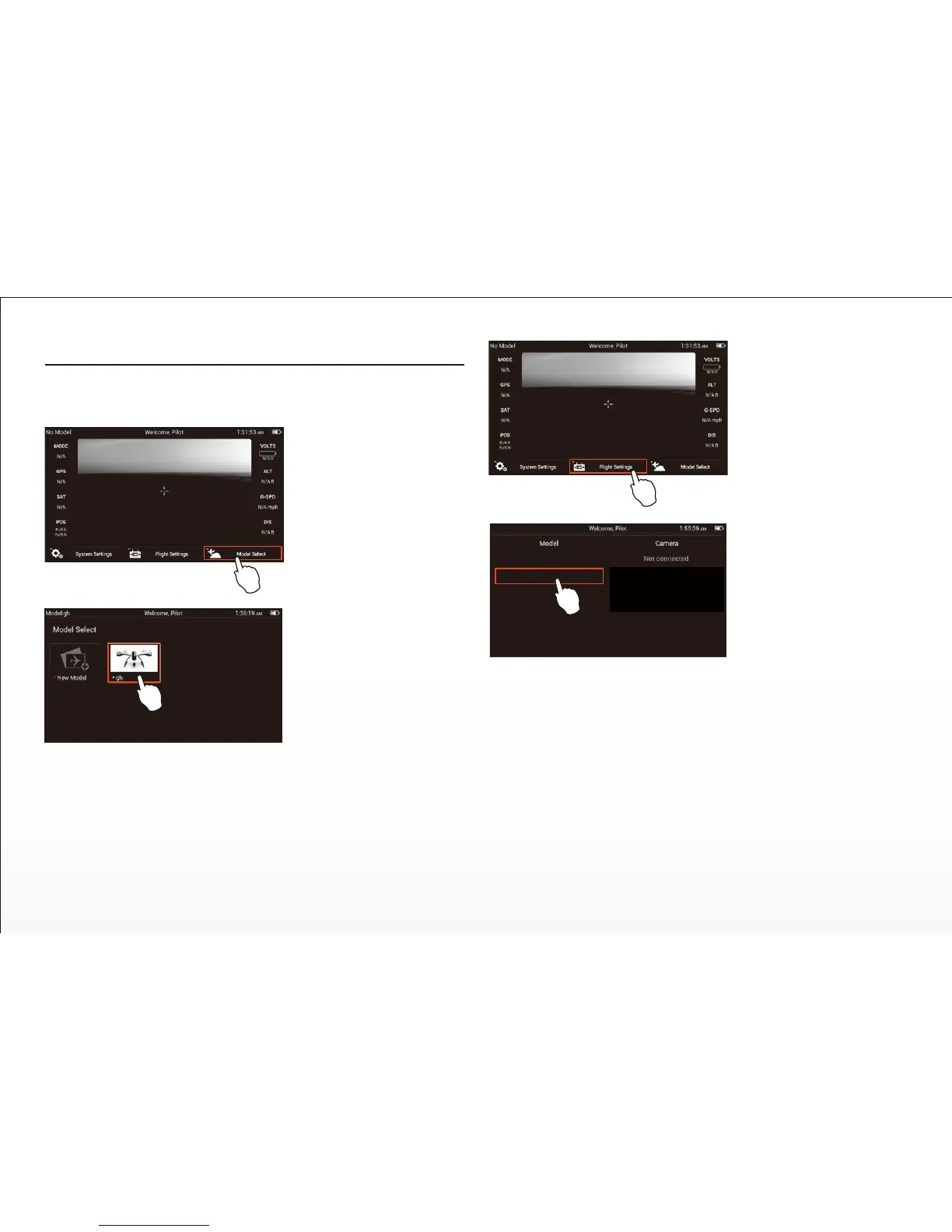

Step 1) Turn on the ST10+, and if required tap the screen (outside of the
pop up status window) to bypass the RC and WiFi connecon process.
Step 5) if required tap the
screen (outside of the pop
up status window) to
bypass the RC and WiFi
connecon process, then
tap the ‘Flight Sengs’
buon and press ‘OK’ to
bypass any pop up
warnings/alerts.
Step 6) Tap the ‘Bind’
buon and select the
‘CGO2_XXXXXX’ camera
listed in the column under
‘Camera’, then enter the
password ‘1234567890’
when prompted and tap
‘OK’ aer the connecon
has been established.
Step 7) Tap the ‘Back’ buon two (2) mes to return to the main screen and
the camera should automacally connect to the ST10+.
IMPORTANT NOTE: Streaming video from the CGO2+ to the ST10+ and
to a separate phone/tablet (or another Yuneec transmier/personal
ground staon) at the same me is NOT recommended as it will result in a
very significant lag in the video downlink.
Step 2) Tap the ‘Model
Select’ buon, and if
required press ‘OK’ to
bypass any pop up
warnings/alerts.
Step 3) Select the exisng
model (for example:
‘TYPHOON’) you would like
to bind to (or create a ‘New
Model’), and if required
press ‘OK’ to bypass any
pop up warnings/alerts.
Step 4) Turn on TYPHOON
and ensure that the CGO2+
is powered on.
SR24_16042
SR24_16042
28
