If activated, the Geofence status LED indicates the current Geofence status, i.e. in or outside a
designated area.
See the ZED-F9P Interface Description [2] for help with configuring the Time Pulse output or
activating the Geofence pin.

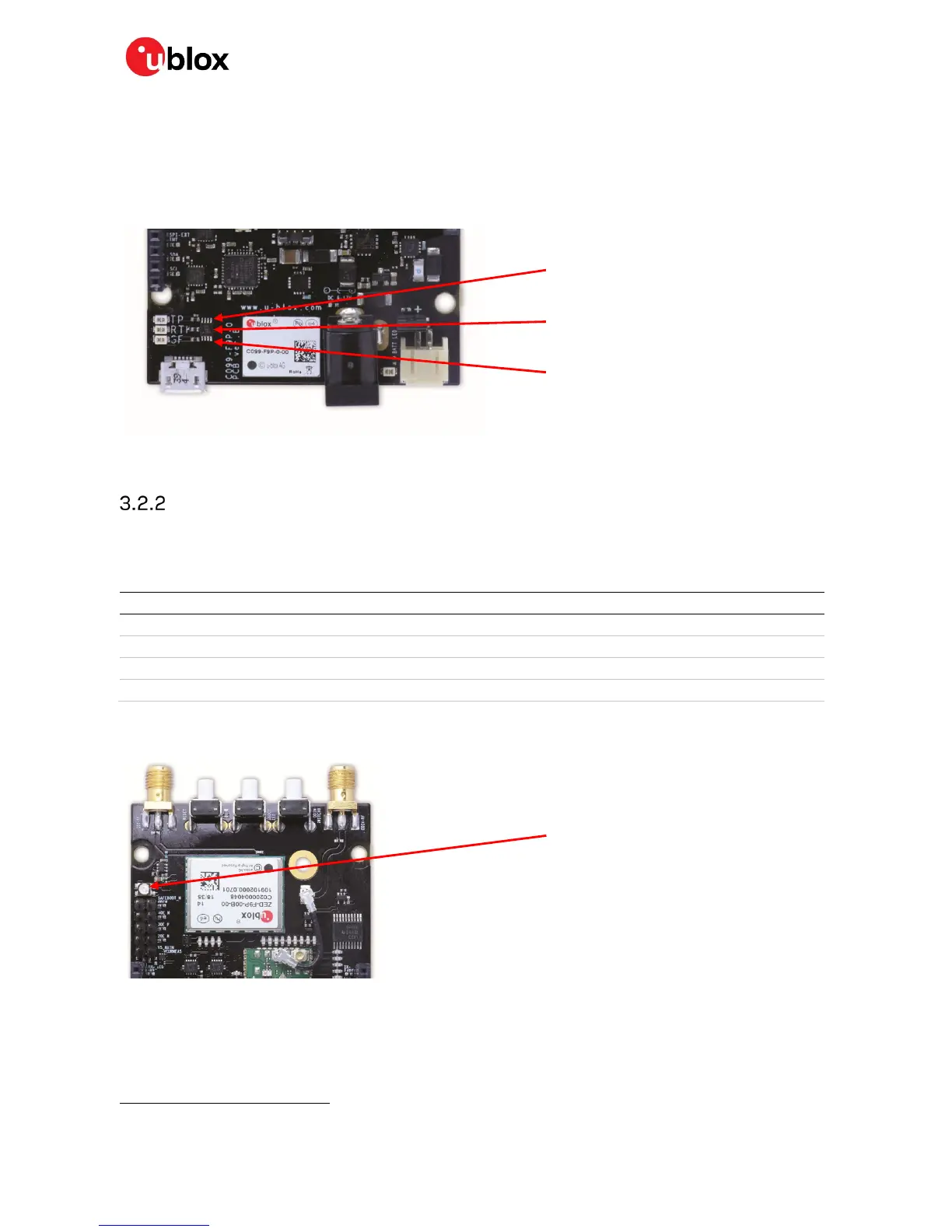

Figure 7: ZED-F9P LEDs
ODIN-W2 activity LED
The ODIN-W2 module uses a multi-colored LED to show particular activity status. This is positioned
adjacent to the ZED-F9P reset switch and shown below in Figure 8. The activity status is summarized
in Table 1 below.
Mode Status LED color
Data mode, EDM IDLE Green
Command mode IDLE Orange
Data mode, Command mode, EDM CONNECTING Purple
Data mode, Command mode, EDM CONNECTED
2
Blue
Table 1: LED activity states and colors
Figure 8: ODIN-W2 Activity LED position on C099-F9P board
2
On data activity, the active LED flashes.
ODIN-W2 activity LED
ZED-F9P Geofence status LED
ZED-F9P RTK status LED
ZED-F9P Time pulse LED
