C099-F9P - User Guide
UBX-18055649 - R02 Appendix Page 36 of 48
D Reference station ODIN-W2 UDP client.txt
Copy all the text below this line and put it in a text file named “Base ODIN-W2 Station UDP client.txt”.
AT+UWSCA=0,4
AT+UWSC=0,0,1
AT+UWSC=0,2,"UBXWifi"
AT+UWSC=0,5,1
AT+UWSC=0,100,2
AT+UWSCA=0,1
AT+UWSCA=0,3
AT+UWCFG=1,0
AT+UMSM=1
AT+UDDRP=0,"udp://192.168.0.10:5003",2
AT+UMRS=460800,2,8,1,1,0
AT&W
AT+CPWROFF

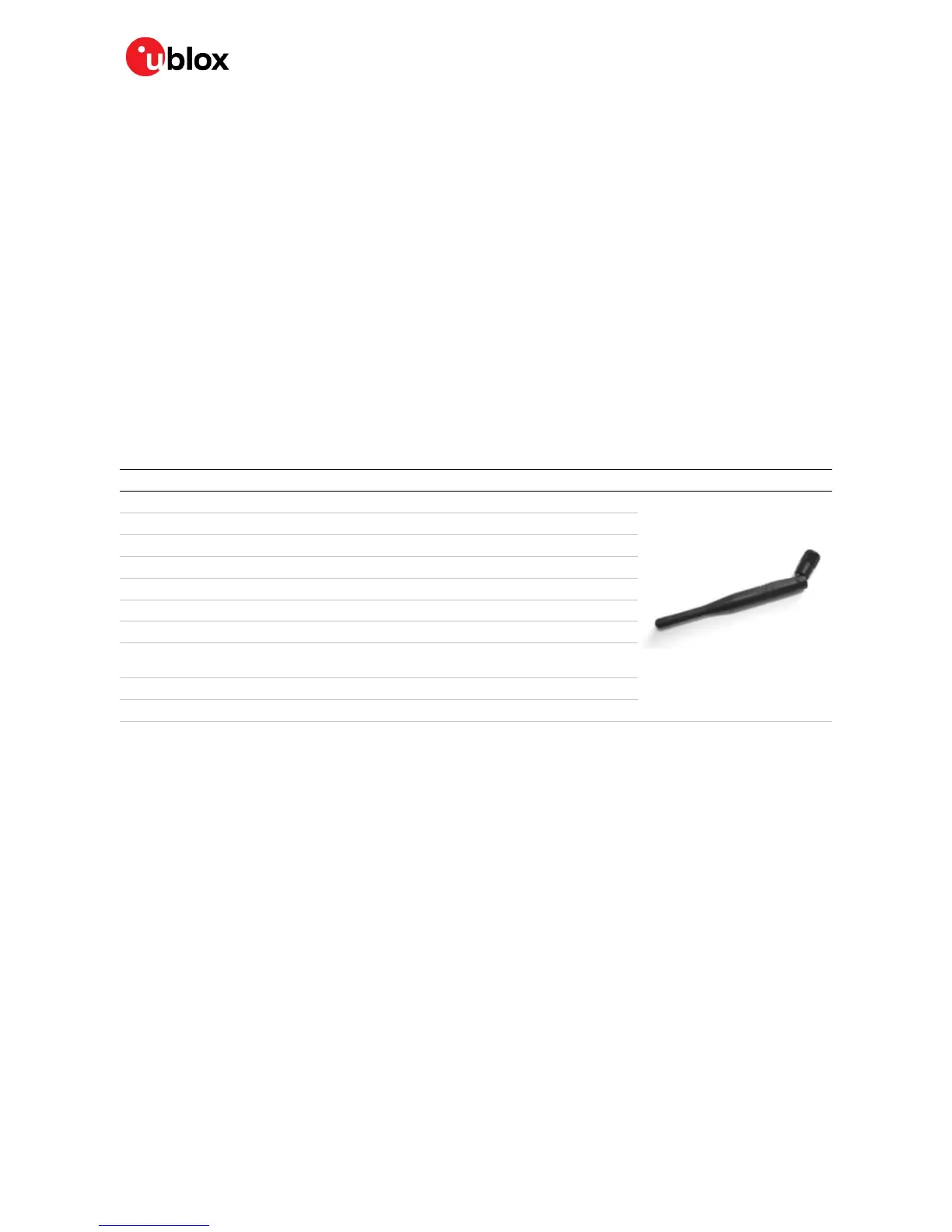

E C099-F9P antenna specification
E.1 Wi-Fi/Bluetooth antenna specification
EX-IT WLAN RPSMA / Ex-IT WLAN SMA
Manufacturer ProAnt
Type ½ wave dipole dual-band antenna
Polarization Vertical
Gain +3 dBi
Impedance 50 Ω
Size 107 mm (straight)
Type Monopole
Connector
Reverse polarity SMA plug (inner thread and pin receptacle)
•
SMA plug (inner thread and pin)
Comment To be mounted on the U.FL to SMA or reverse polarity SMA adapter cable
Approval FCC, IC, RED, MIC, NCC, KCC*, ANATEL, and ICASA
Table 3: Wi-Fi/Bluetooth antenna
☞ The variant included in the C099-F9P kit is with SMA connector and has to be mounted on the
corresponding antenna connector of the C099-F9P board if you wish to use Wi-Fi or Bluetooth
connectivity.
