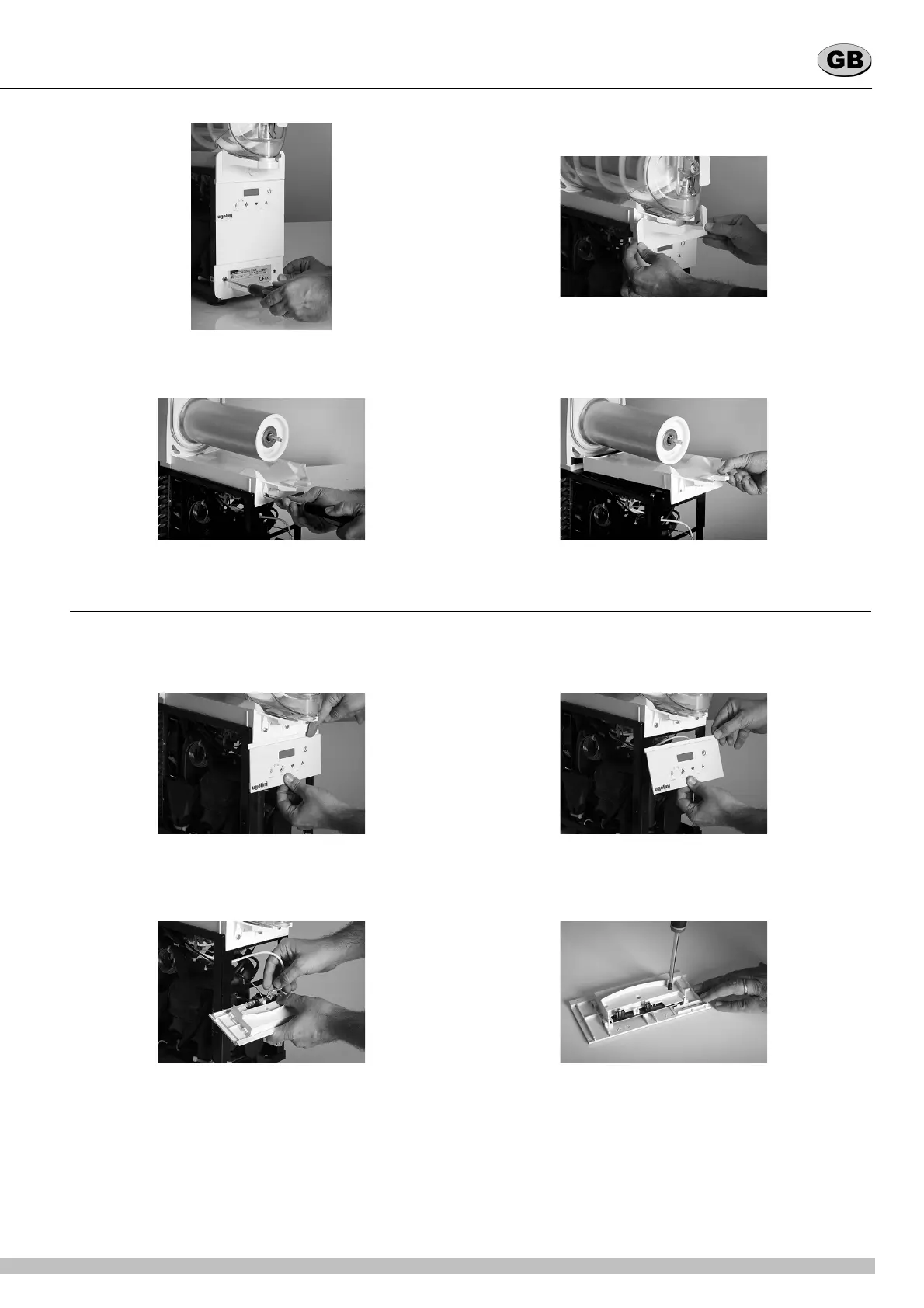

3 Loosen the screws and remove the front panel. Then remove the condensation water drain cover.
4 Once you have removed the cover, the tank and mixer, loosen the fastening screws on the condensation water collection tray
and remove it by pulling it out from the front.
10. 2 DISASSEMBLING THE CIRCUIT BOARDS
1 Remove the control board housing by pushing it down.
2 Disconnect all connectors at the rear of the board. Loosen all the housing securing screws and then remove the board itself.
3 To remove the power board, you need to disconnect all the connectors then pull down the two side anchor tabs and pull out the
