Ultraflux Minisonic II Portable User Manual

29

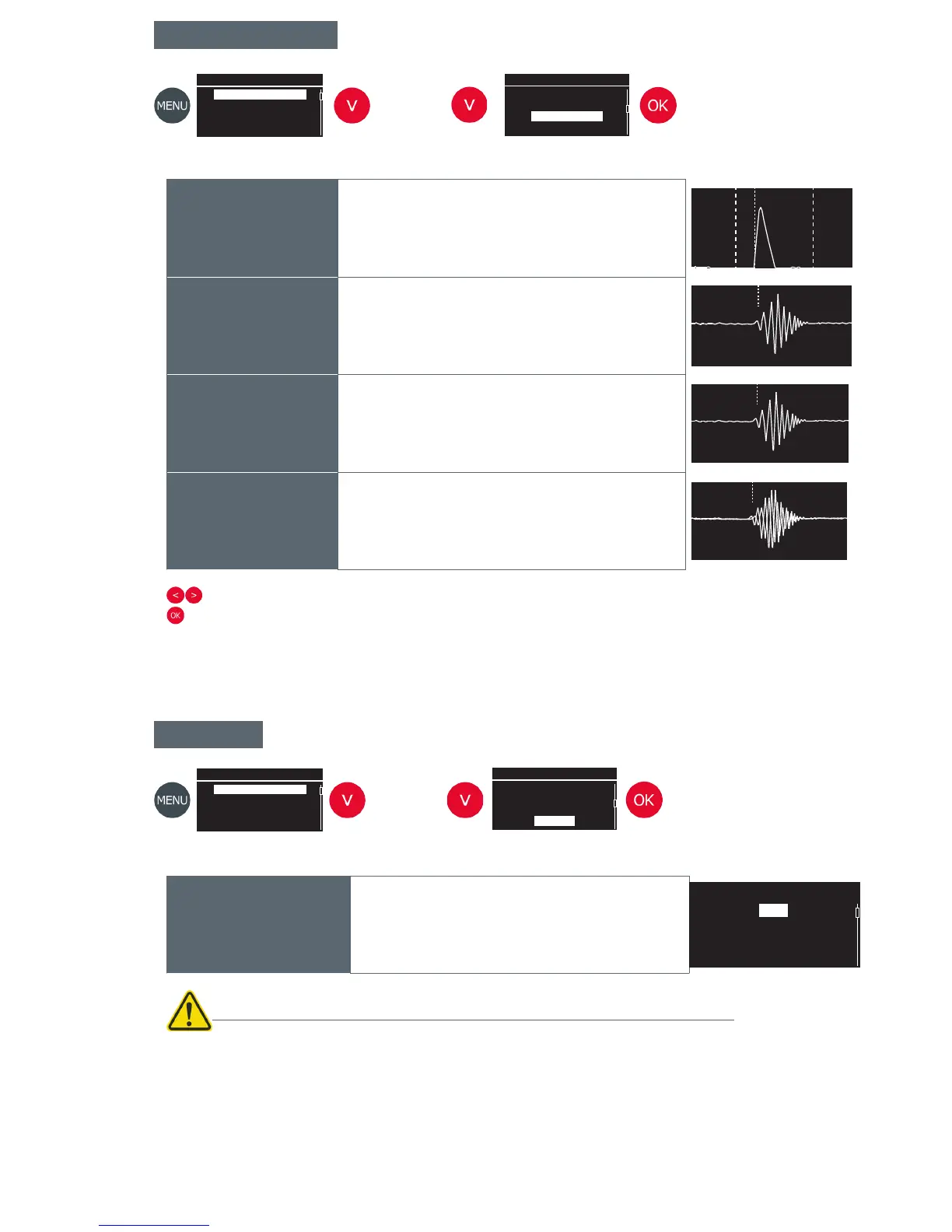

Signal echo visualisation
US signal display
Wide vision
Wide view of the quality of the signal measured, according to the
programmed parameters and the measurement conditions
79.7 μs
13 dB
Signal from probe
A to B
View of the ultrasound echo emitted by probe A and received
by probe B.
13 dB AB
0.5 ns
Signal from probe
B to A
View of the ultrasound echo emitted by probe B and received
by probe A.
13 dB BA
0.5 ns
Déphasage AB-BA
View of the ultrasound wave’s transit time dierence between an
AB transit and a BA transit
13 dB ABBA
79.3 ns
Moves the viewing window for appraising the signal
Re-centres the view on the measurement point
Menu
Measurement config.
Probes distance
US Signal display
Auto zero
Menu
Measurement config.
Probes distance
US Signal display
Auto zero
Adjustment of the Minisonic II Portable at zero flow
Auto Zero
Auto zero
Determine the auto zero duration.
Long duration : fine «zero» tuning
30 s
Auto zero
1 min
2 min
5 min
Note, this operation can only be carried out under strict conditions of:
• Full pipe
• Zero flowrate
Menu
Measurement config.
Probes distance
US Signal display
Auto zero
Menu
Measurement config.
Probes distance
US Signal display
Auto zero
(....)
(....)
