YK15-0009-DI-002-04
xiv
Install the machine horizontal to a place where there are less dust and humidity.
In case you fix the Pump to floor, fix the Pump to the floor with bolts at four places.
Fix the Pump horizontally so that there is not a wobble.
Refer to “3.1 Storage/ Installation”, too.

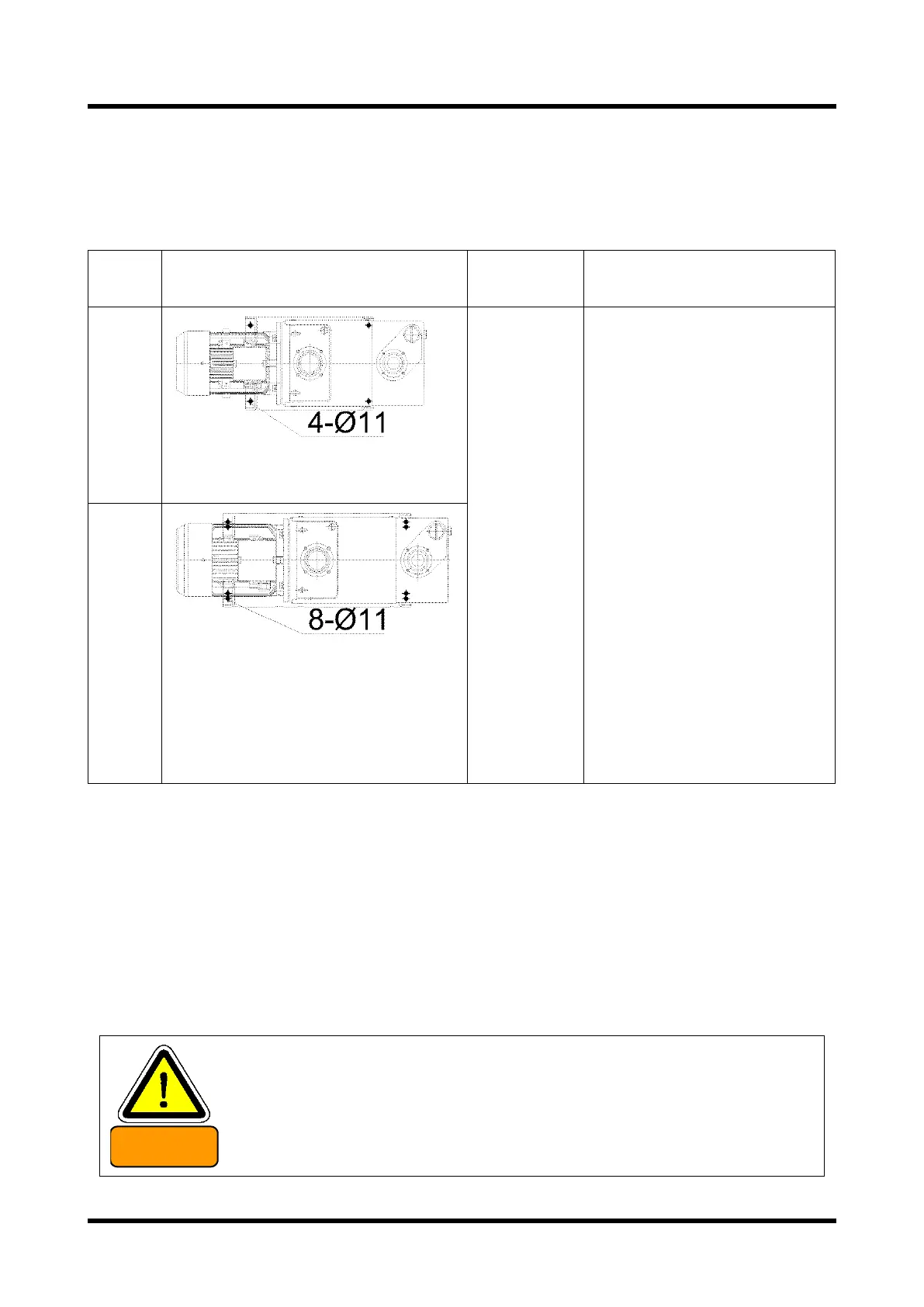

Model
Foot print Bolt
Anti-vibration
Rubber mount
VD30C
VD40C
VD60C
The Pump has four holes.
The Pump is fixed with four bolts.
More than
“M8 x 20mm”
Kurashiki Kako., Ltd.
Model：
KLB-3560(Recommended)
* NOT included
VD90C
The Pump has eight holes.
The Pump is fixed with four bolts:
Four places of outside
or
center side of the Pump.
The detail of the holes position: Refer to the Fig. 3 ~ Fig. 10.
0.6 Protective Device
This machine is equipped with the Three-phase AC motor.
This motor is not equipped with the protective device. Put an overload protective device to
connect through the motor with the Power Supply.
Refer to “3.5 Electrical Connection” to select the overload protective device. It is
recommended to put together another protective device such as a earth leakage breaker.
WARNING
It is imperative to put the Overload protection device.
Otherwise it would cause the motor burn out and/or fire.
To Next Page
