3.5 Electrical Connection
Conduct the electrical connection referring to the Fig. 16, Fig.17 and Table.5..
Without changing motor, it is possible to run the Pumps both with 200V and 400V class utilities
by changing wire connection in the motor terminal box because multi voltage motor, for both
200V and 400V classes, is used for this pump.
WARNING
The motor is set up the connection matched to voltage for each
destination at factory shipment.
Before starting the pump, check first that the connection is matched to
used voltage.

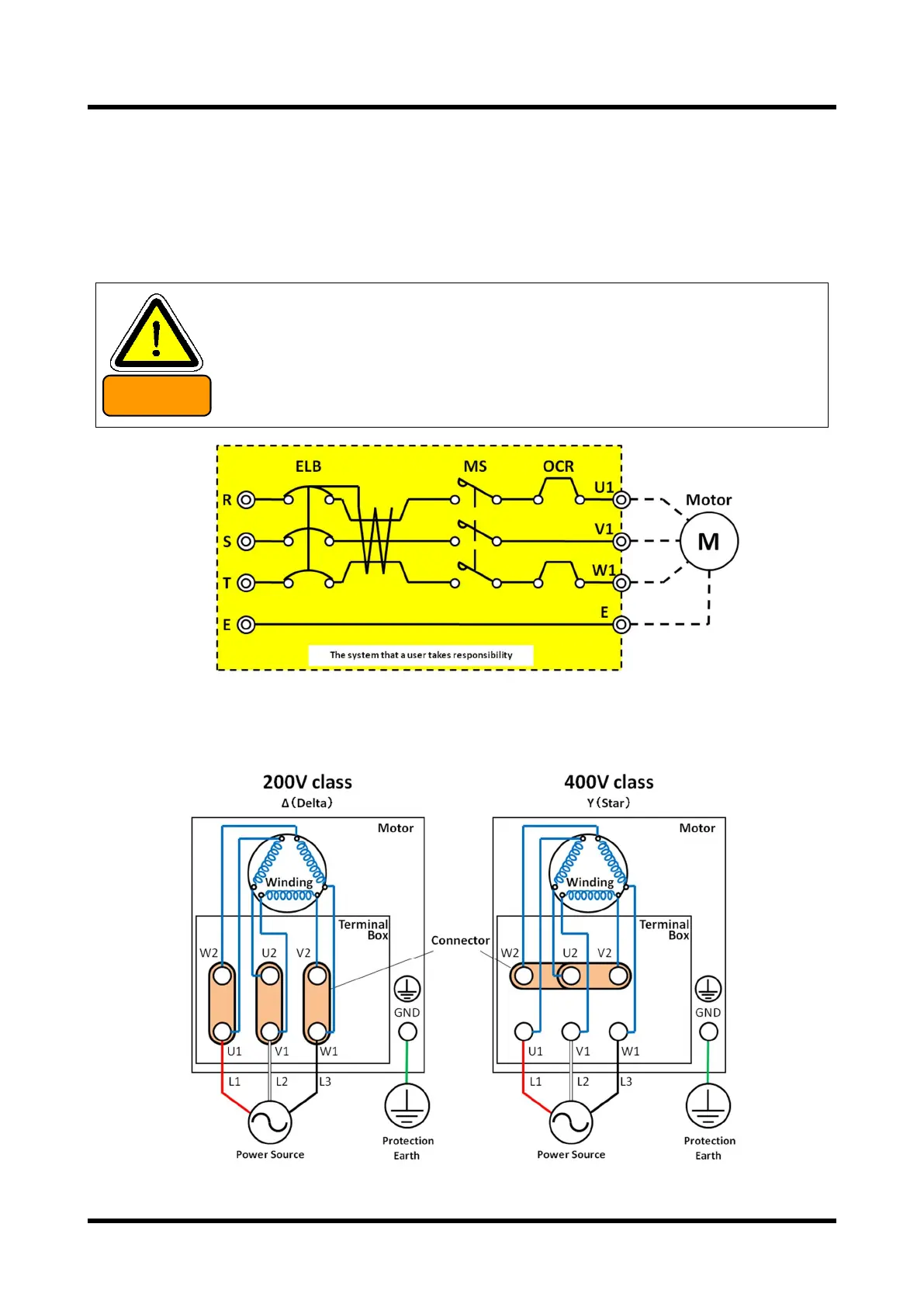

Fig. 16 Recommended connection diagram
Fig. 17 Electrical wiring diagram
