UXPW 125 ENGINE SERVICE MANUAL AND EFI DIAGNOSTIC
- 14 -
using the wrong UM filter or a non-UM filter which is
not of equivalent quality may cause engine damage.
2.7.6 Install locating pin. Fix a new sealing washer on
the filter cover, then install the cover on the right
cover.
2.7.7 Install and tighten the filter cover bolt
Oil filter cover bolts torque: 12N.m

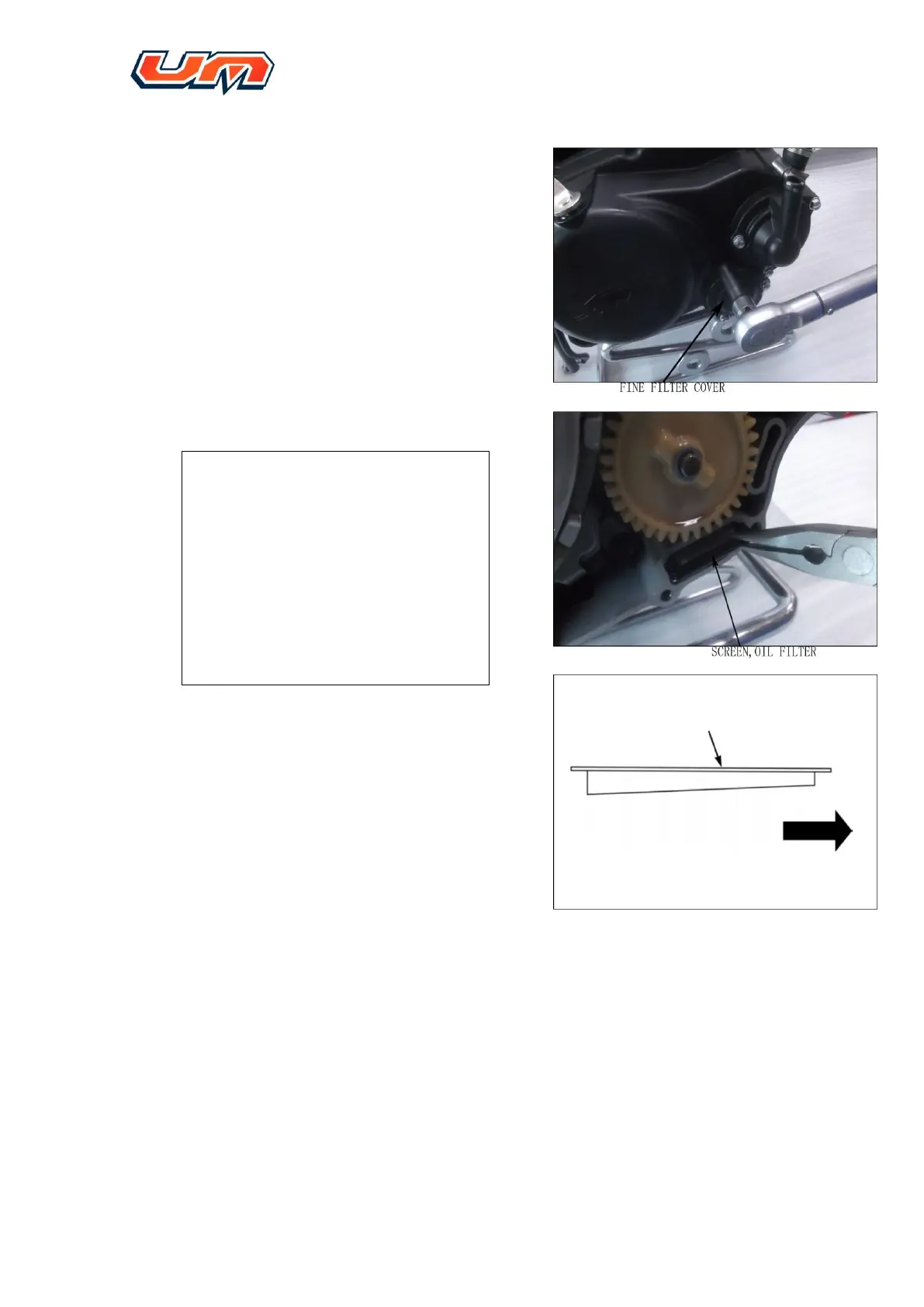

2.7.8 If necessary, clean the oil screen, Remove the
right cover. (refer to 6.5 section for extraction of right
cover). Take out oil screen to clean strange elements
from it. Then reinstall it according to direction shown
in the figure.
Note
Strange elements on the oil screen can be
used to determine preliminarily if there is
abnormal damage on the engine. If too
much metallic dust is detected, the
engine shall be subject to inspection.
The oil screen shall not be cleaned with
gasoline or other solvents that may
damage rubber.
Reinstall the right cover (refer to 6.5 section).
2.7.9. Check if drain bolt and sealing washer are in
good condition. Replace the drain bolt and sealing
washer, then tighten the bolt. Always replace the
sealing washer whenever renewing the engine oil.
Tightening torque of engine oil drain bolt: 24N.m
2.7.10. Fill the engine with oil of equivalent grade
according to requirements of maintenance
(SJ/10W-40); Reinstall the oil level gauge.
2.7.11. Start the engine and let it idle for 3-5minutes.
2-3minutes after stopping the engine, check that oil
level is at the upper level mark in the inspection
window with the vehicle upright on firm level ground.
2.7.12. Confirm the engine is free of any leakage.
