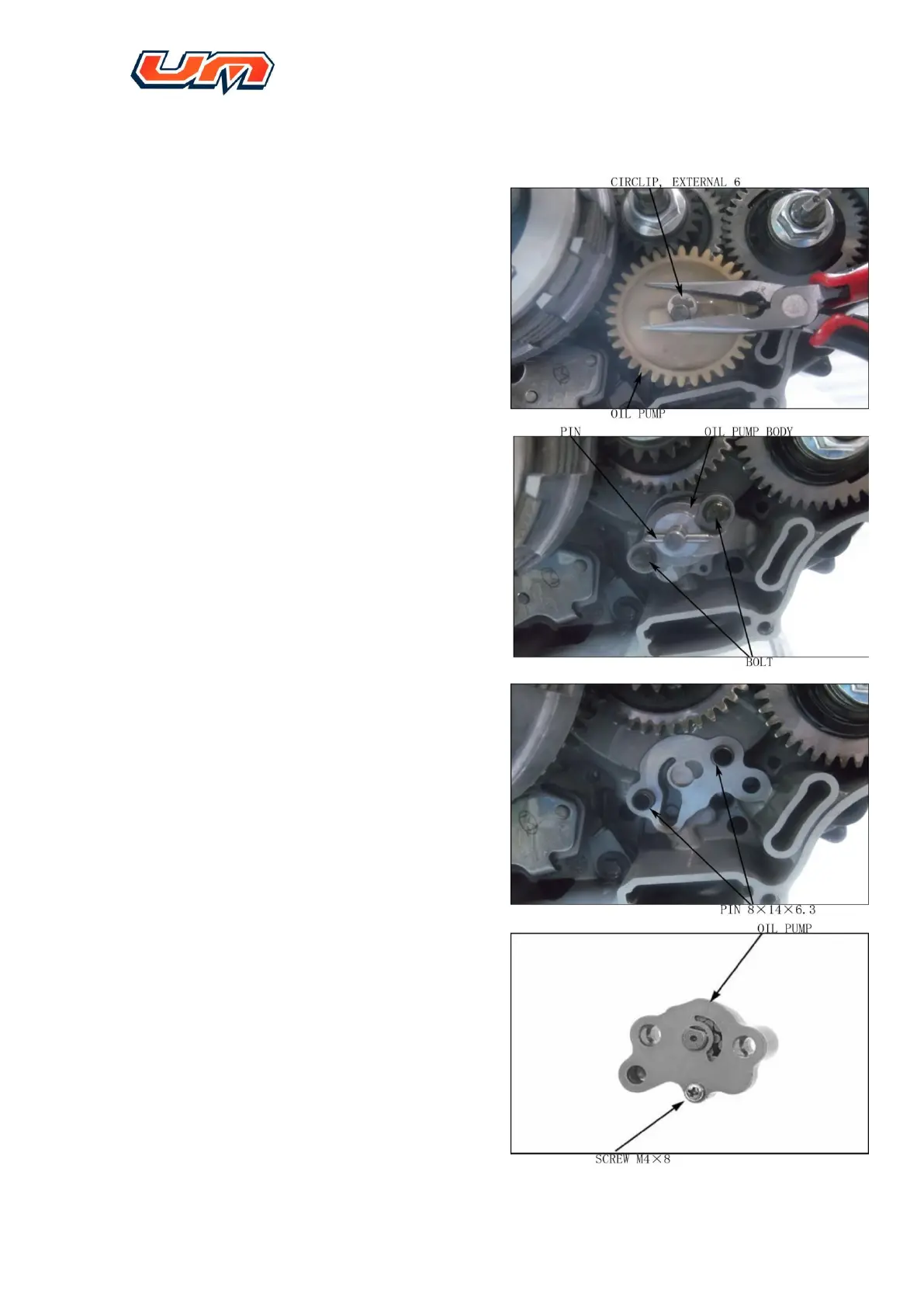

3.4 Oil pump (extraction and installation)
3.4.1. Oil pump dismantle
3.4.1.1 Dismantle right cover (refer to 6.5 section),
then remove circlip and take out gears of oil
pump.
3.4.1.2 Take out the pin and remove fastening bolt
of oil pump. Take out oil pump.
3.4.1.3 Remove the two location pins.
3.4.2. Oil pump disassembly
3.4.2.1. Remove set screw from cover plate.
