UXPW 125 ENGINE SERVICE MANUAL AND EFI DIAGNOSTIC
- 27 -

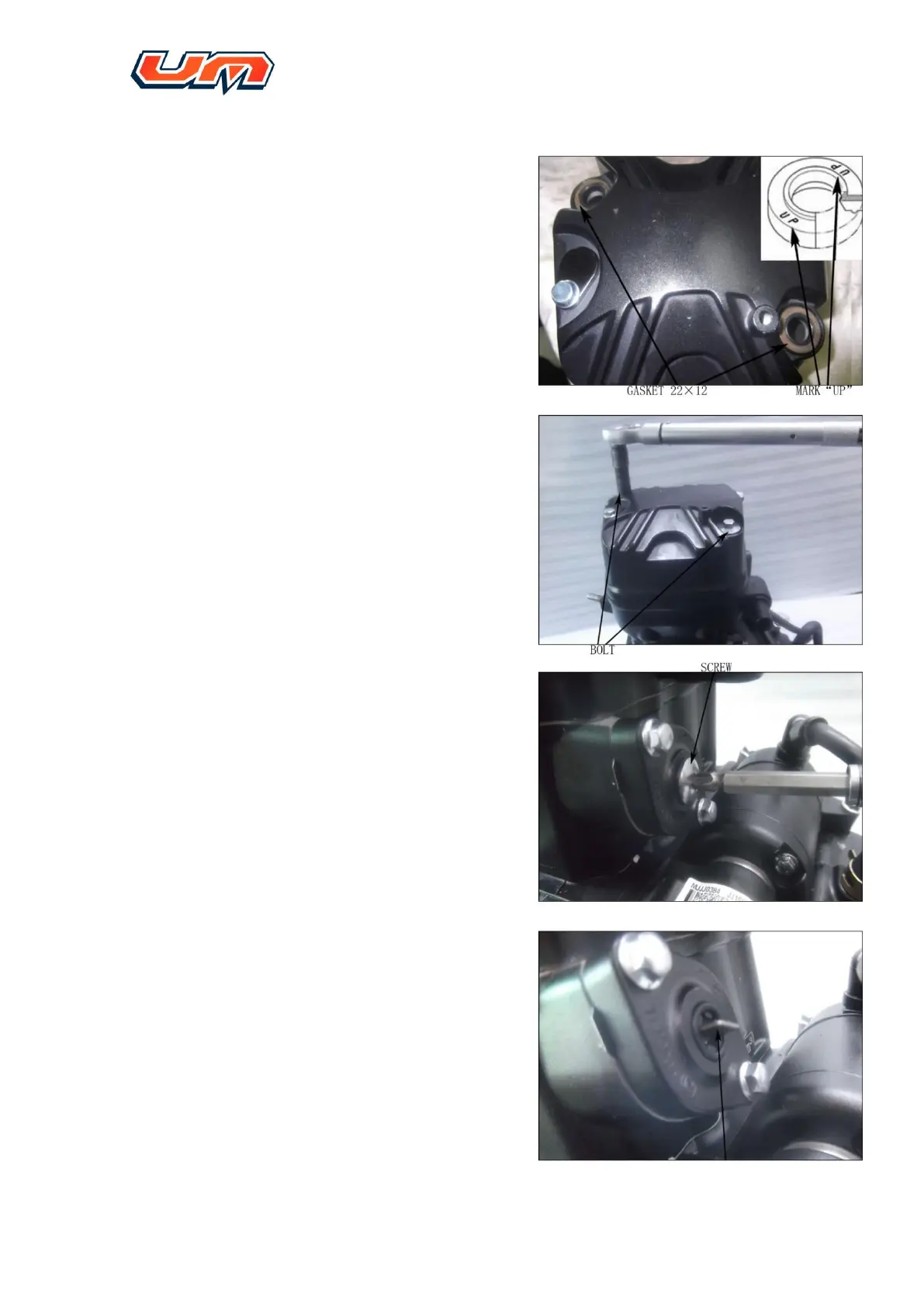

4.2.9 After confirming that the upper cover is installed
at right place, install rubber gasket of bolt of cylinder
head (with mark UP upwards).
4.2.10 Assembling head cap upper cover bolts and
tighten.
Tightening torque: 10N • m
4.3 Rocker arm set maintenance
4.3.1.
Disassembling of rocker arm assembly
4.3.1.1. Remove
tensioner screws
4.3.1.2. Adjust the tensioning device to the loosened
position.
