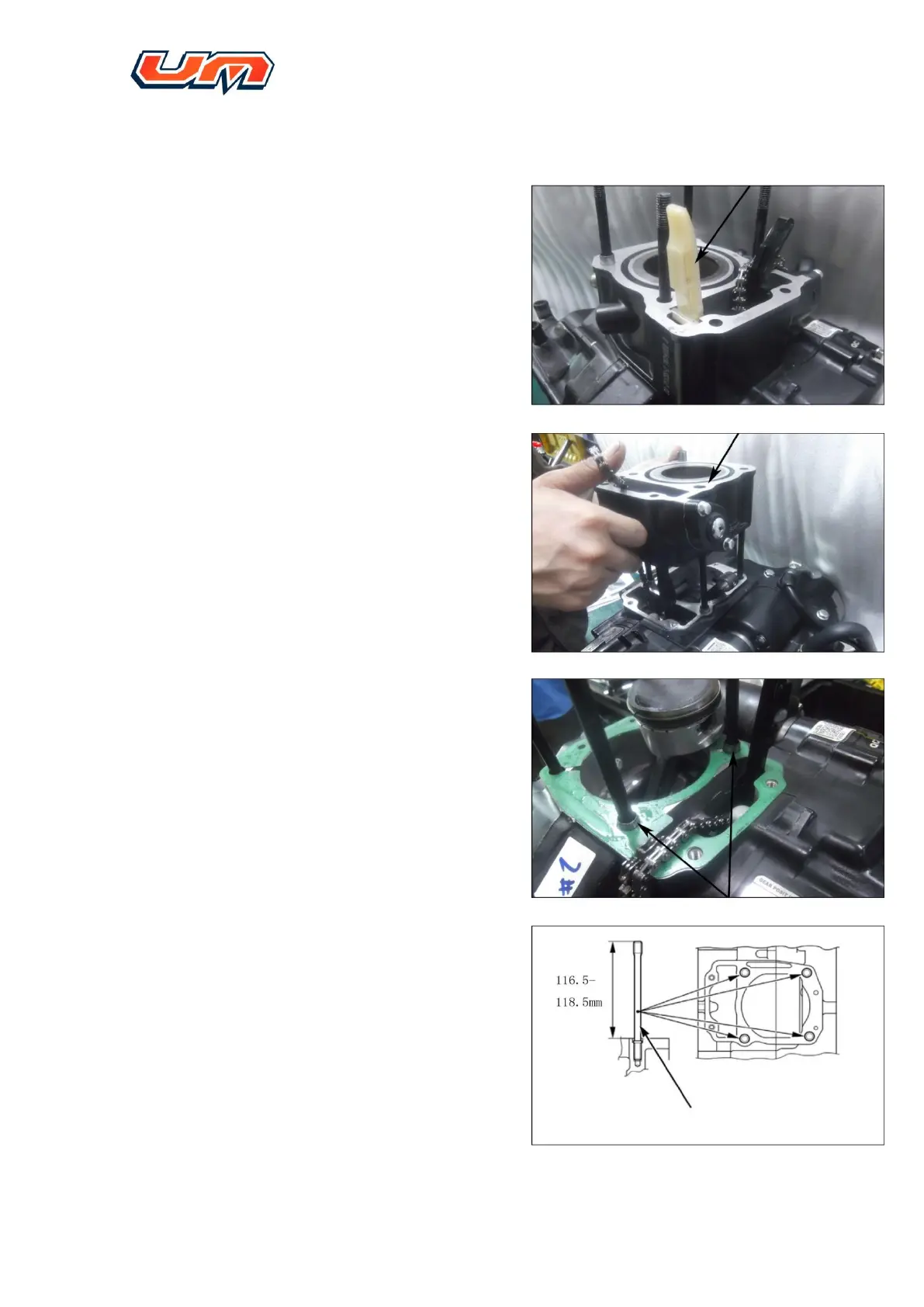

5.4 Cylinder block - piston (disassembly and installation)
5.4.1 Disassembly and inspection of cylinder block
5.4.1.1. Dismantle cylinder head (refer to 4.2 section).
Remove the guide plate
5.4.1.2. Knock cylinder block slightly with rubber
hammer to separate cylinder block from crankcase.
Take out cylinder block upwards. Care shall be taken to
not damage piston when dismantling cylinder block
5.4.1.3. Remove the location pins and the cylinder
block gasket
5.4.1.4. Check AB bolts. When replace AB bolts with
new ones, pay attention to check projection length of
the installed AB bolt, which shall satisfy the
requirements shown in the figure.
