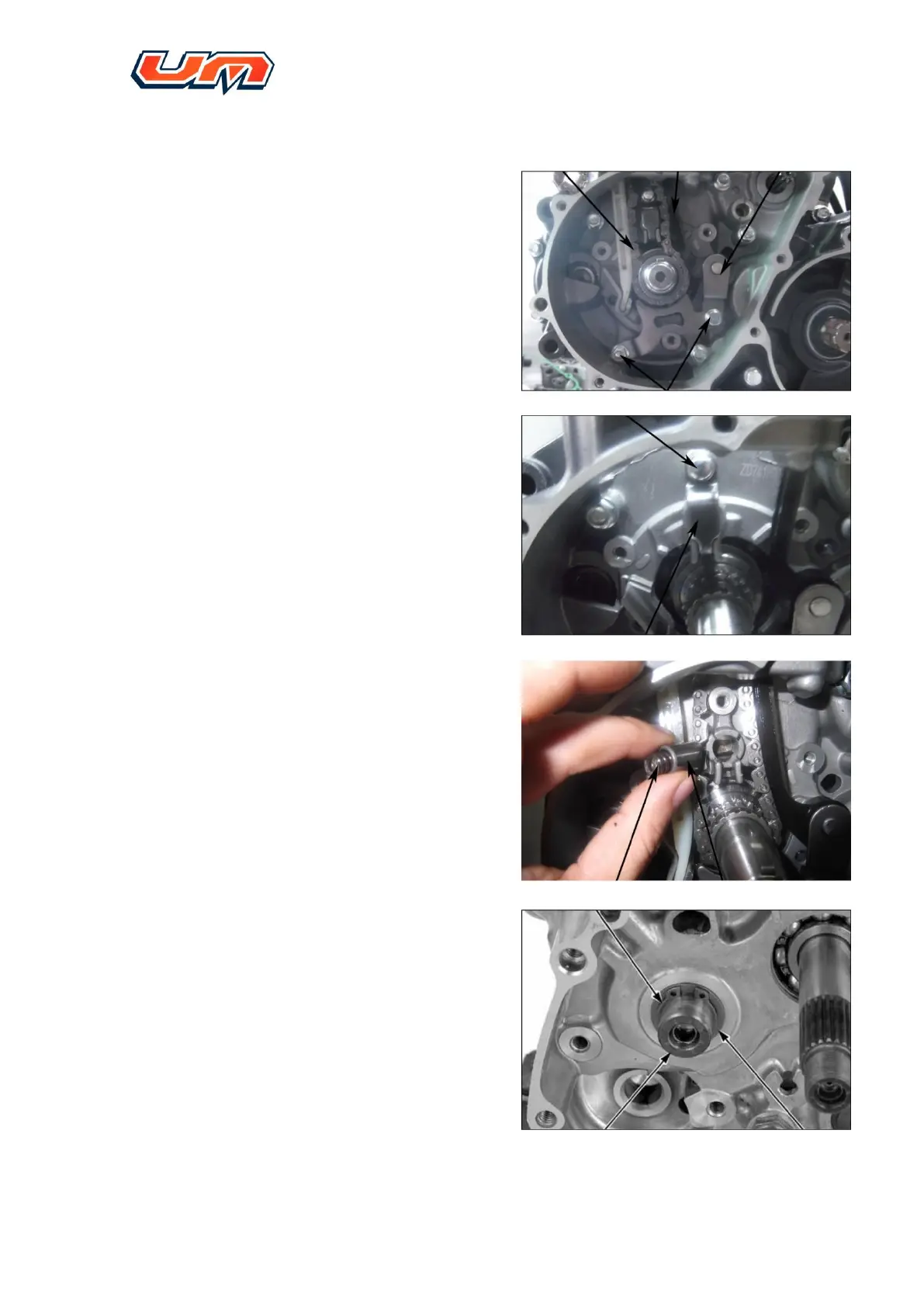

8.3. Crankshaft extraction
8.3.1. Dismantle corresponding components and
parts (cylinder head, cylinder block, right
cover, left cover) in accordance with steps
described above.
8.3.2. Loosen and dismantle fastening bolt on chain
guard, then take out chain guard, tension
plate, guide plate and chain
8.3.3. Dismantle fastening bolt on pressing pin body,
then take out guard plate of pressing pin body
8.3.4. Take out pressing pin body and spring.
8.3.5. Remove circlip and washer on counter shaft.
