UXPW 125 ENGINE SERVICE MANUAL AND EFI DIAGNOSTIC
- 22 -

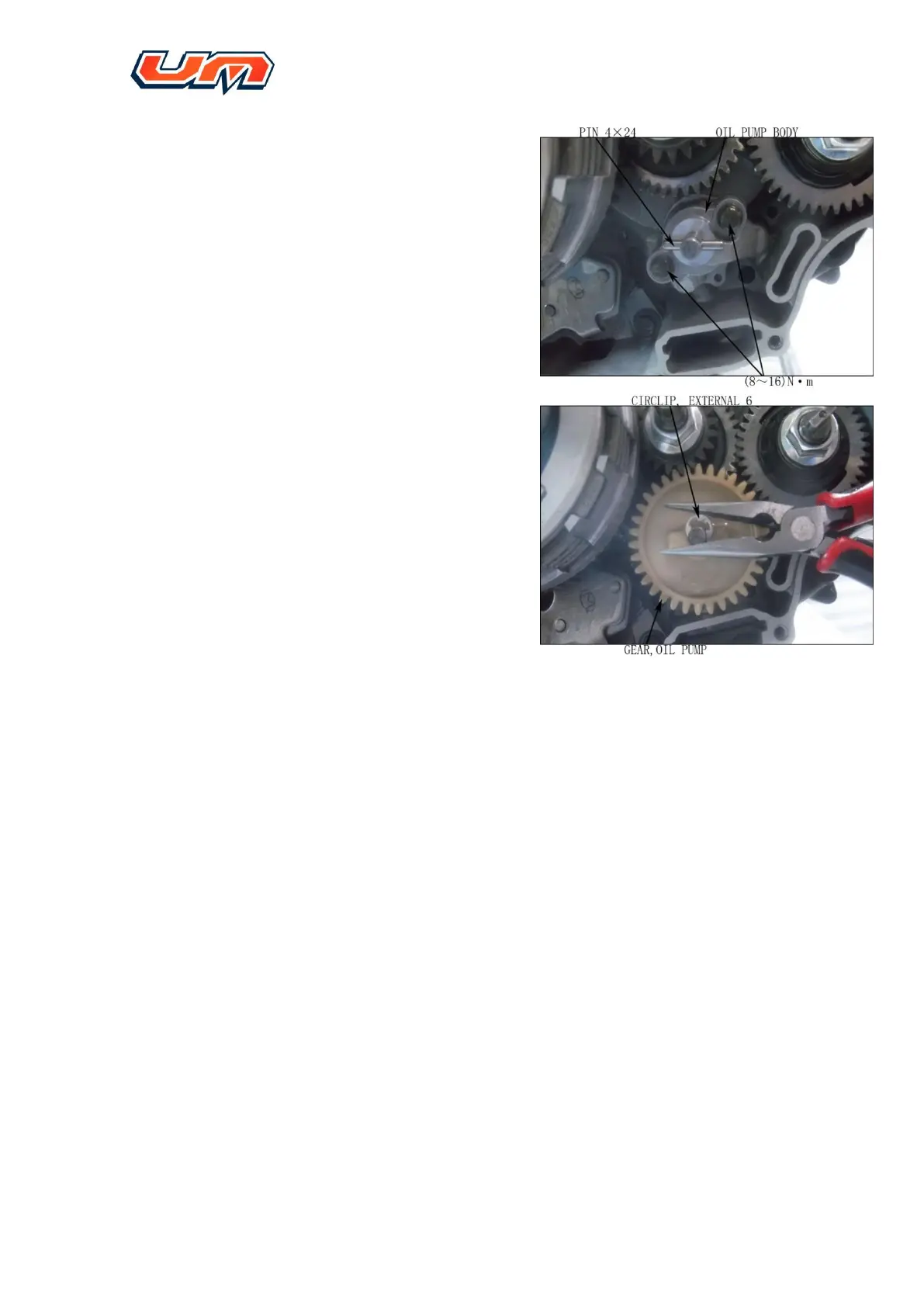

3.4.4.5. Assemble oil pump and tighten the bolt.
Assemble the pin.
3.4.4.6. Install oil pump gears onto pin shaft and install
circlip. Apply an appropriate amount of lube oil on the
gears.
3.4.4.7. Install the cover plate of clutch onto engine
(refer to 6.5 section).
