UXPW 125 ENGINE SERVICE MANUAL AND EFI DIAGNOSTIC
- 31 -
4.3.2.

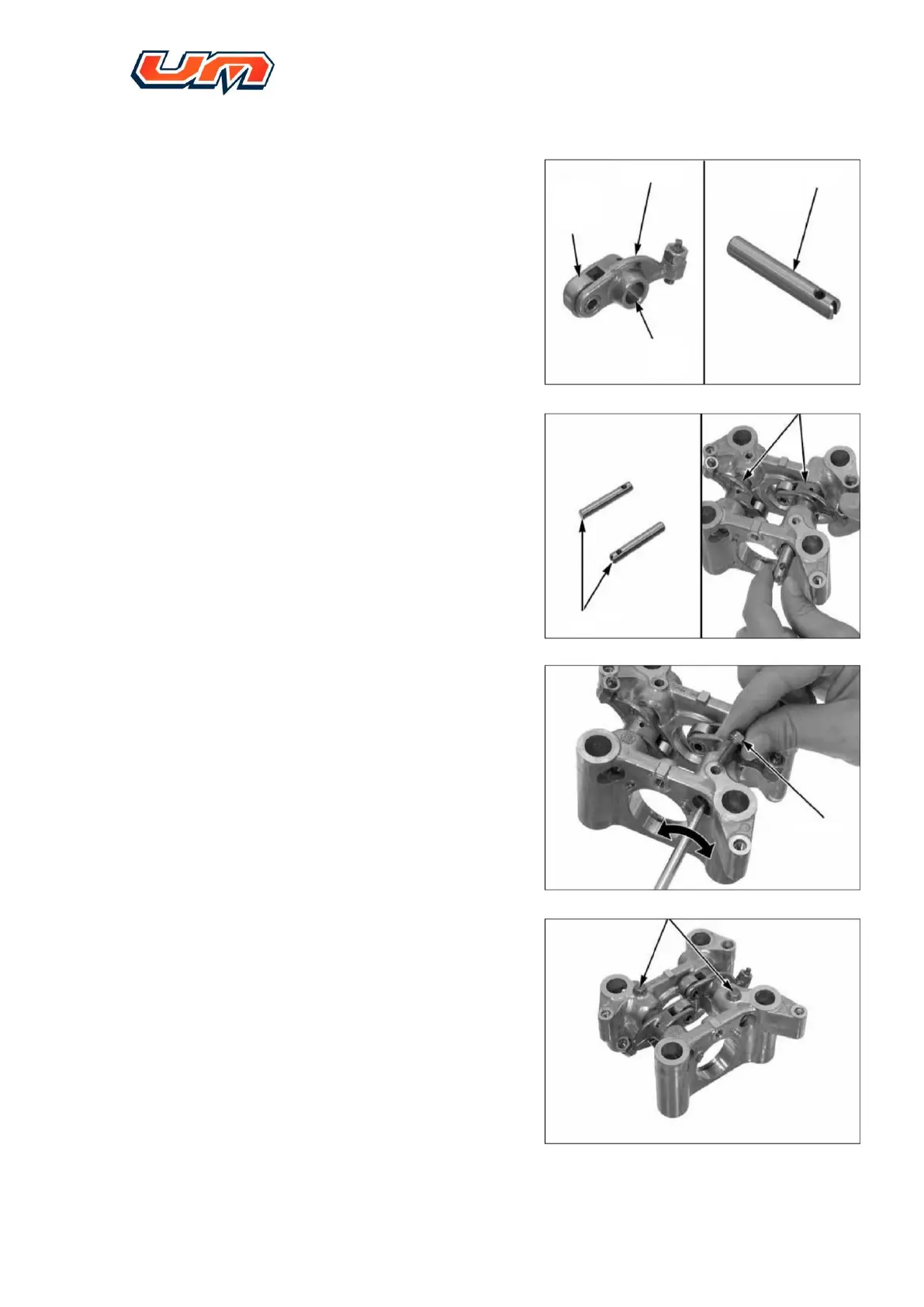

Installation rocker arm set
4.3.2.1. Apply the right amount of lube oil on Rocker
shaft hole, roller and rocker arm shaft before installing
them
4.3.2.2. Assemble rocker arm and rocker shaft in
accordance with sequence shown in the illustration
4.3.2.3.
Use flat screwdriver to turn rocker arm shaft,
so verify that screw hole on rocker arm shaft is
aligned with through hole on rocker arm bracket.
Then install fastening bolt manually.
4.3.2.4. Confirm that the bolts are installed in the right
position, then use a torque wrench to tighten bolts
with the specified torque
Tightening torque: 32N • m
