UXPW 125 ENGINE SERVICE MANUAL AND EFI DIAGNOSTIC
- 33 -

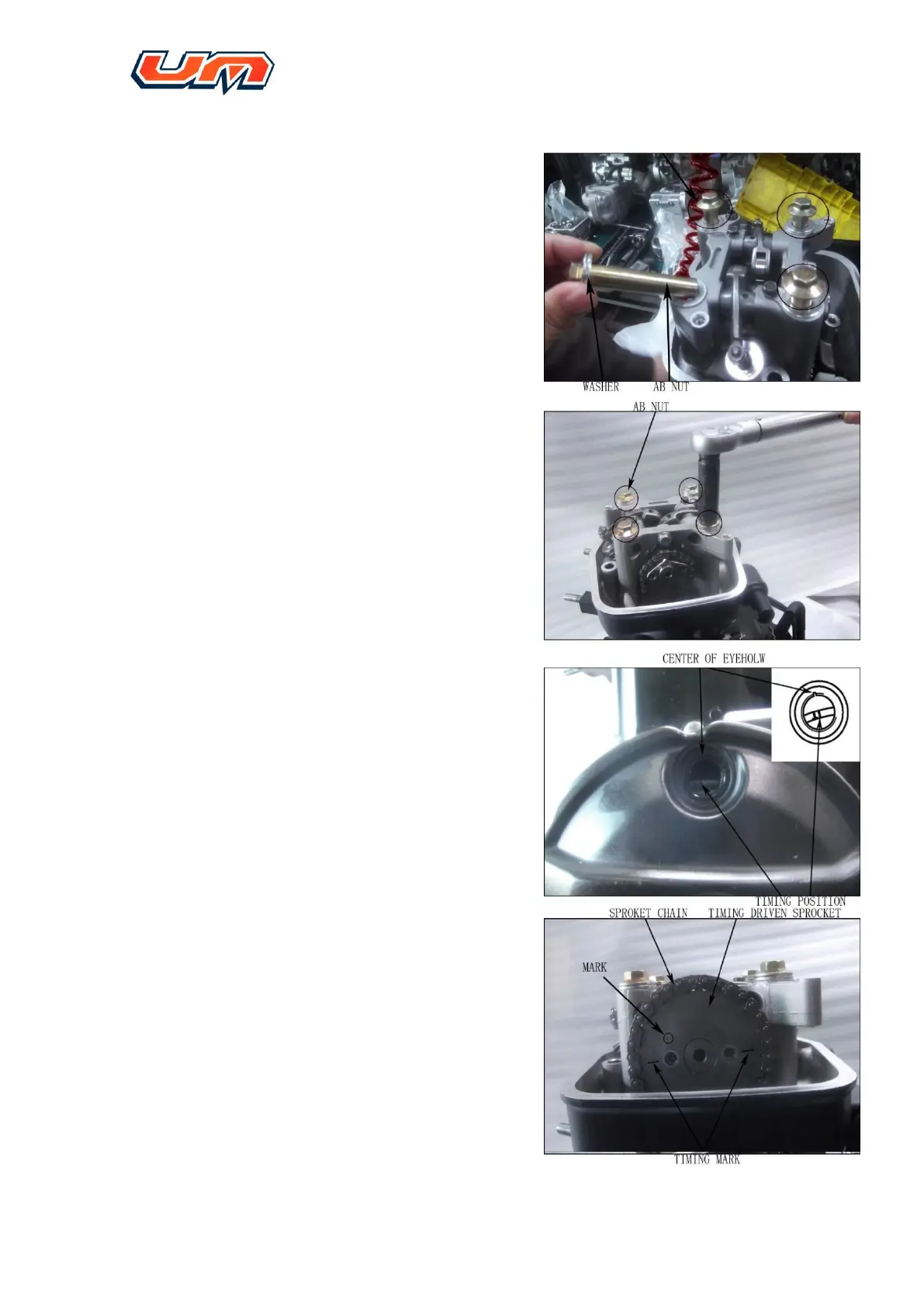

4.3.2.9. Apply appropriate amount of lube oil onto both
sides of gasket and external surface of nut, then install
them into rocker arm bracket.
4.3.2.10. Tighten AB bolt nut in turn
Fastening torque: 3N • m
4.3.2.11. Follow the preceding steps to adjust the engine
to the top death center position (TDC).
4.3.2.12. Assemble chain and timing sprocket, adjust
sprocket to position as shown in figure
