UXPW 125 ENGINE SERVICE MANUAL AND EFI DIAGNOSTIC
- 65 -

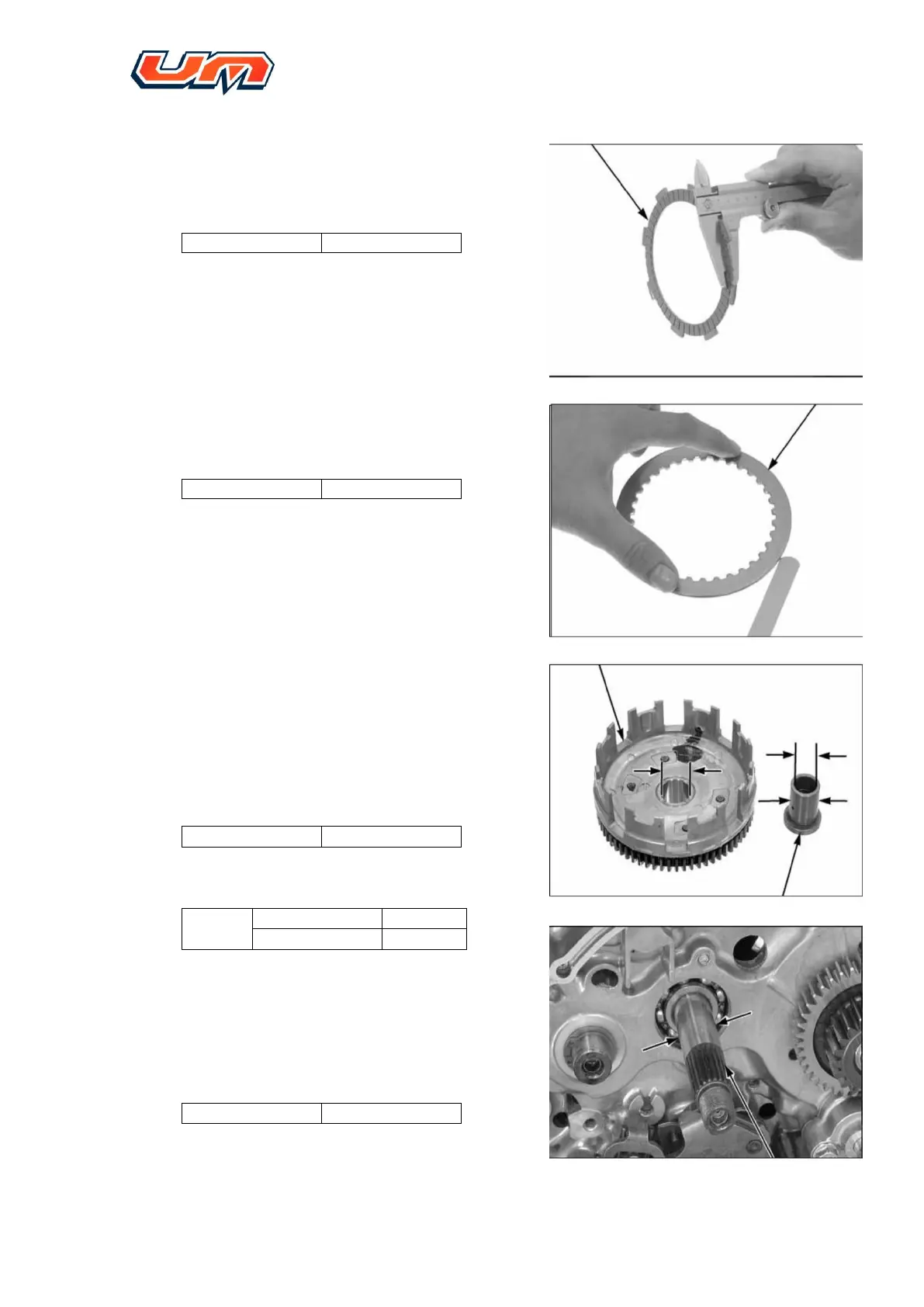

6.6.2.4. Check if drive friction plates discolors,
measure thickness of drive friction
plate.
Service limit
2.6mm
6.6.2.5. Check driven friction plates flatness.
Service limit
0.20mm
6.6.2.6. Check outer case of clutch and shaft
sleeve for abnormal geometry.
Measure inner hole diameter of
driven gear on outer case.
Service limit
23.08mm
Measure inner and outer diameter in shaft sleeve.
Service
limit
Inner diameter
17.04mm
Outer diameter
22.93mm
6.6.2.7. Measure main shaft diameter
.
Service limit
16.95mm
