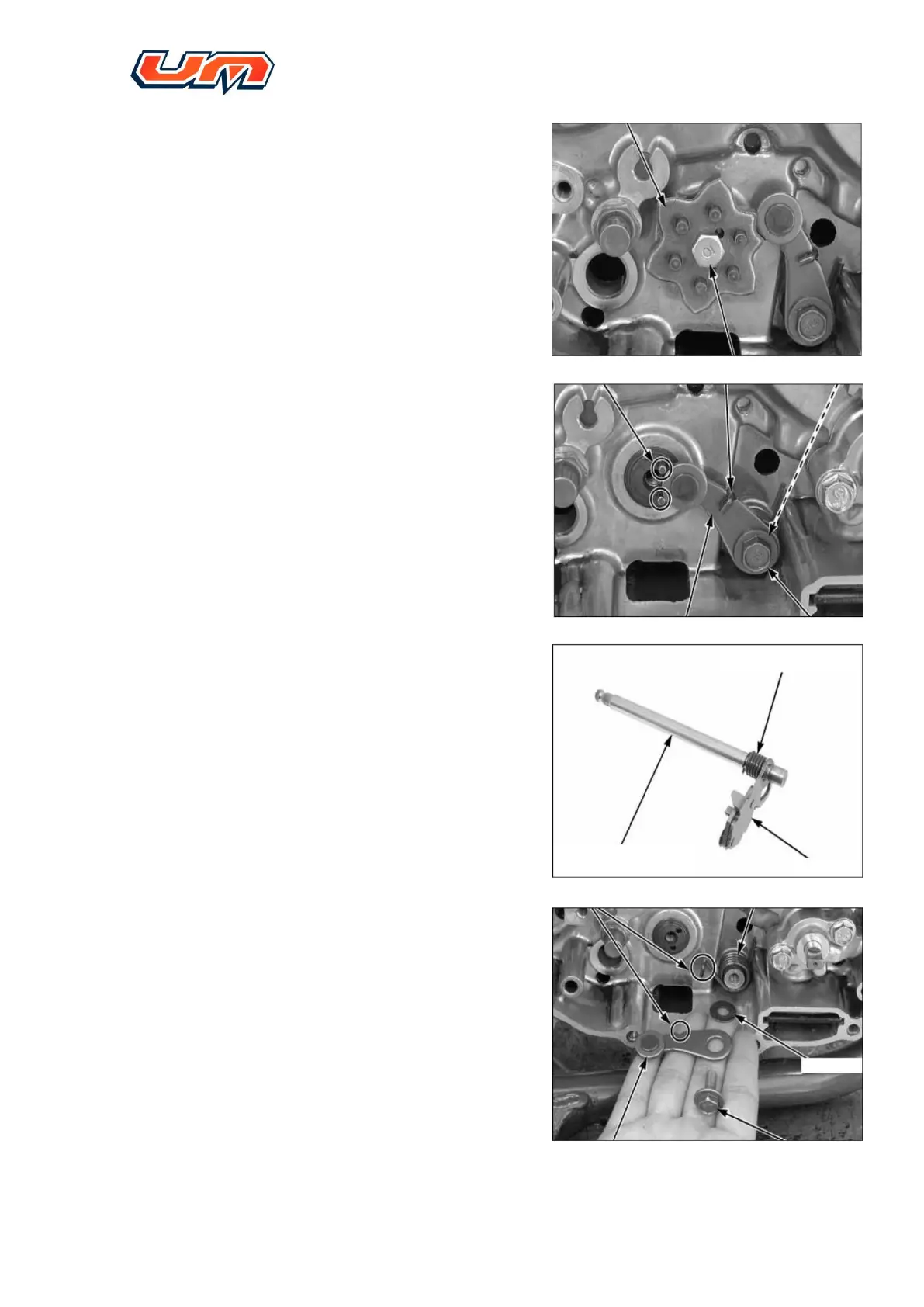

6.7.2. Remove bolt of star-shaped plate, then
dismantle the plate
6.7.3. Dismantle components and parts in order:
•
Pin
•
Locating plate
•
Locating plate bolt
•
Locating plate spring
•
Washer
6.7.4. Check of gearshift arm. Check if lever of
arm bends, deforms or wears abnormally;
check spring for damage and break;
6.7.5. Assemble locating plate, spring, bolt and
washer. Hook of spring shall be snapped
into locating plate groove.
Tightening torque: 12N.m
