UXPW 125 ENGINE SERVICE MANUAL AND EFI DIAGNOSTIC
- 91 -

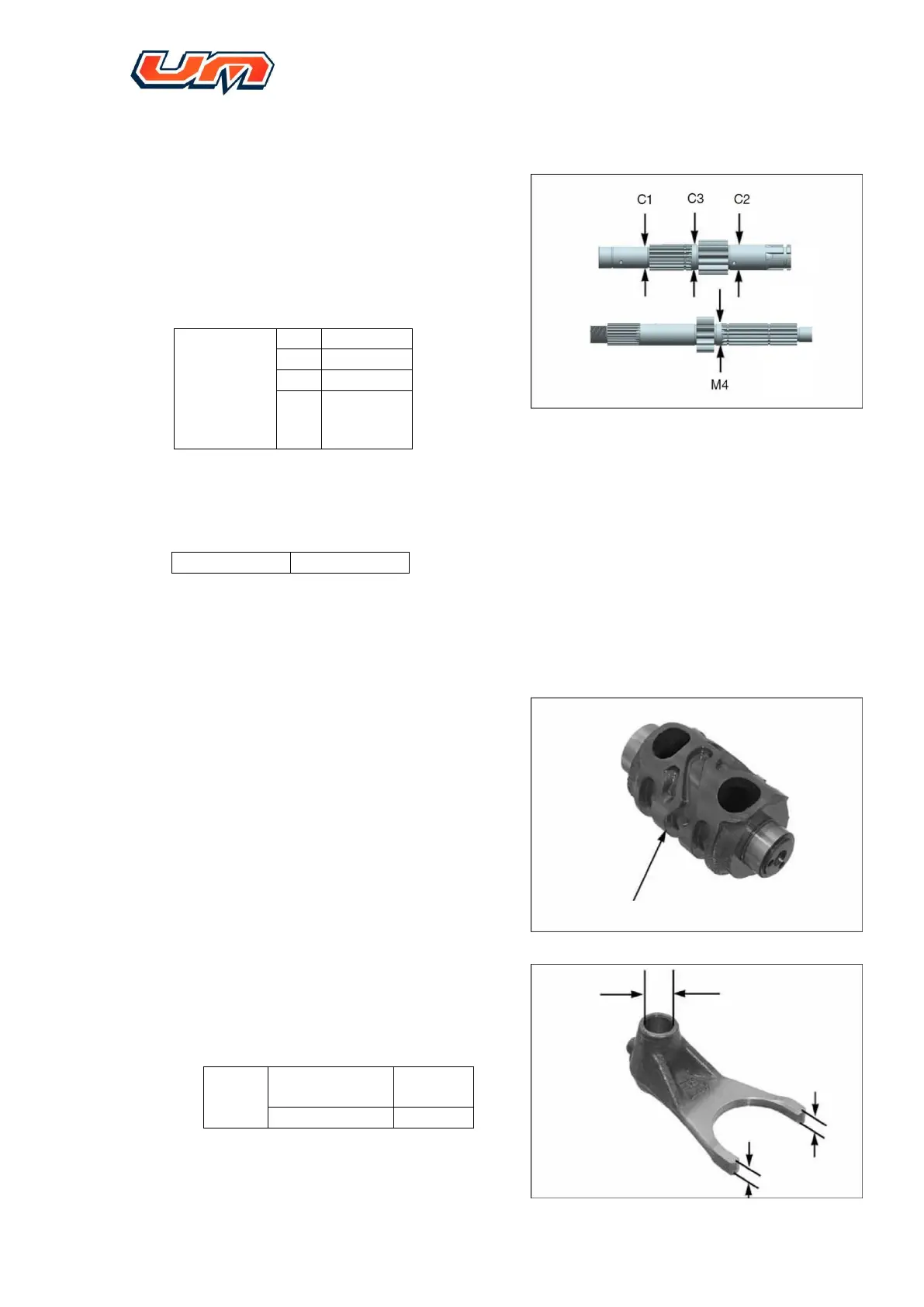

Check spline key and main and counter shaft for
abnormal wear and damage
Measure diameter of shaft at
gear-matching position.
Calculate fit clearance between gears and
shaft sleeve
8.4.5. Check of gearshift drum
8.4.5.1. Check both ends of gearshift drum and
profiled groove for abnormal wear or
damage
8.4.5.2. Check fork for abnormal wear and
deformation
Measure fork inner hole diameter and ear
thickness
Service limit
of outer
diameter of
main and
counter
shafts
M4
φ16.93mm
C1
φ16.93mm
C2
φ19.94mm
C3
φ19.95mm
Service limit
0.10mm
Service
limit
Inner hole
diameter
10.07mm
Ear thickness
4.50mm
