UNI-T UTG2122B User Manual

16 UTG2000B Series
ratio:

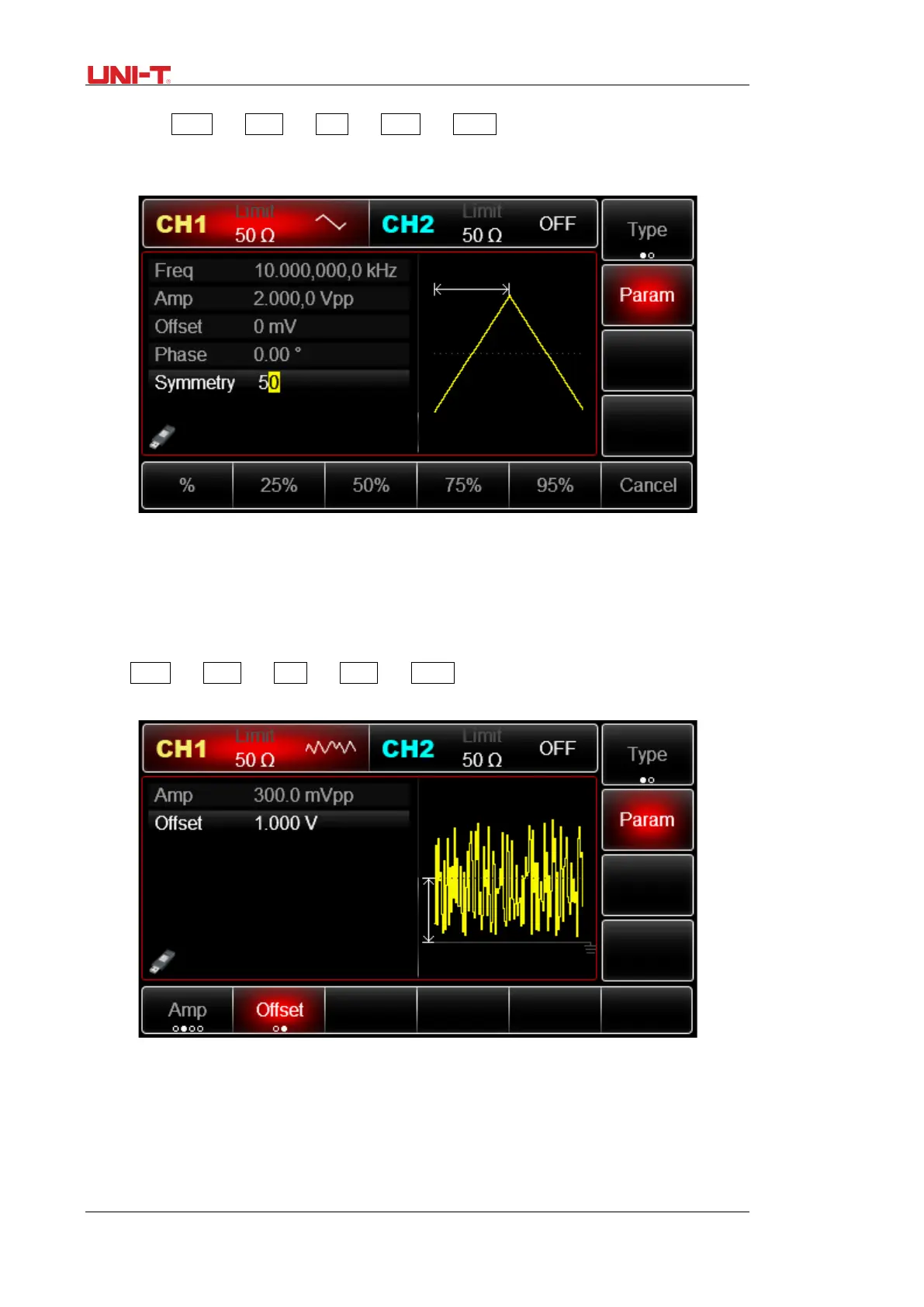

1. Press Menu → Wave → Type → Ramp →
Param
2. Select the parameter to enter edit mode, then input required numbers and select unit. Note:
When enter symmetry degree value, press 50% label at the bottom of the display.
2.4.8 Set noise wave
Default noise: Gauss noise with amplitude 100mVpp and DC offset 0mV.
Steps for setting Quasi Gauss noise with 300mVpp amplitude and 1V DC offset:
Press Menu → Wave → Type → Noise →
Param to enter parameter editing mode. After
setting, enter number and unit.
2.4.9 Set harmonic Wave
Default frequency:1kHz, amplitude 100mVpp, DC offset 0mV, phase position 0°,harmonic wave type
is odd order, total is 2 times, current is 2 times. Amplitude 100mV, phase position 0°Steps for
setting the harmonic wave type is all, wave time is 2 times, amplitude is 4Vpp, phase position is 0°:
