UTG2000B Series 57

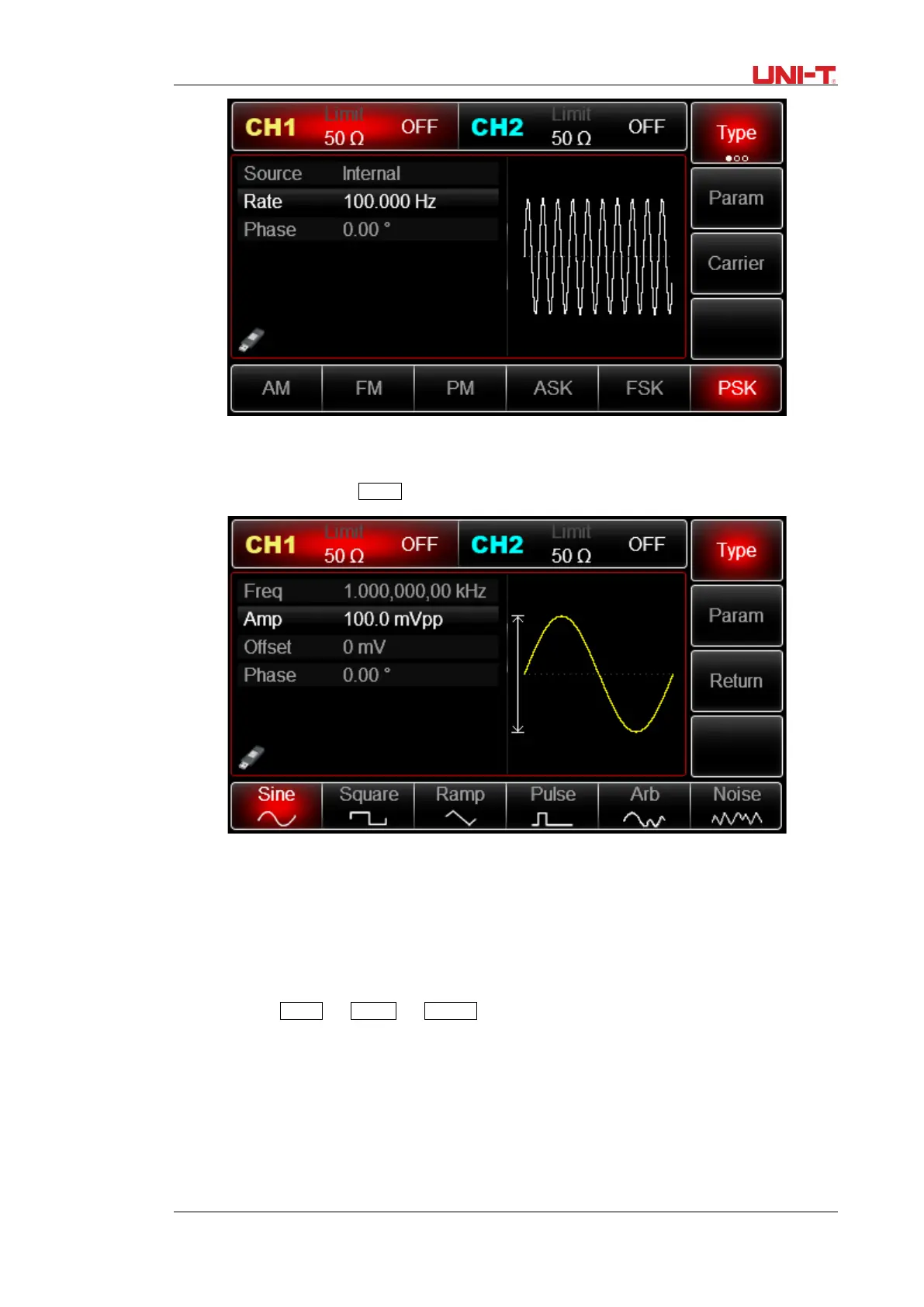

Carrier Wave Waveform Selection
PSK carrier waveform can be: Sine wave, square, ramp wave or arbitrary wave (except DC), and the
default is sine wave. Press Carrier soft key to enter carrier waveform selection interface.
Carrier Wave Frequency Setting
See Carrier Wave Frequency Setting
Modulation Source Selection
UTG2000B function/arbitrary waveform generator can select internal modulation source or external
modulation source. After enabling PSK function, the default of modulation source is internal. If need to
change, press Param → Source →
External in turn.
