9.WAVEFORM DISPLAY
74
9-7. X Start Point
Set the time to display by one screen in the range between 0.1 sec. and 99.9 sec.

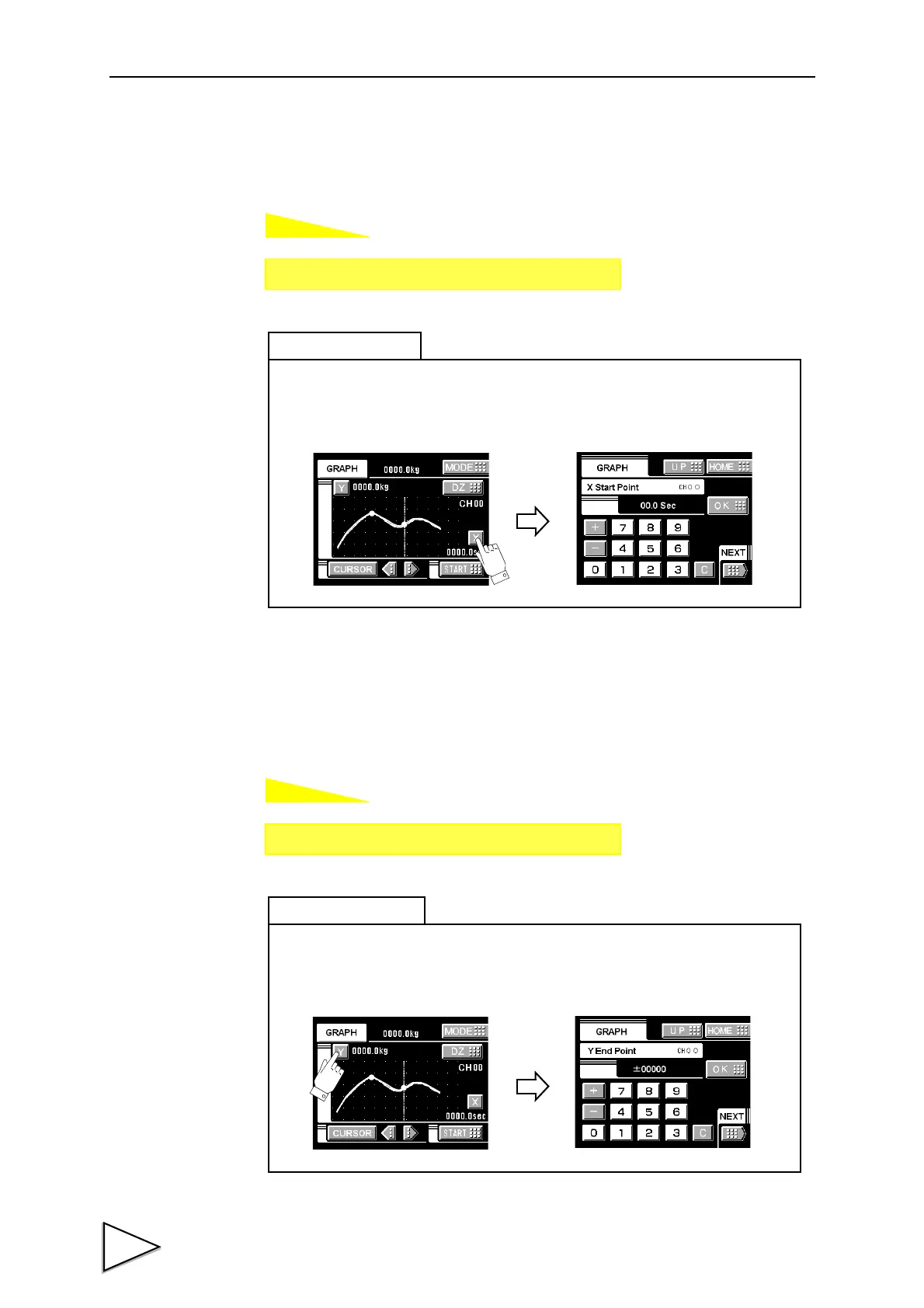

How to set
9-8. Y (Load) Start Point and Y (Load) End Point
Setting range: -99999 - 99999 (where Y start point < Y end point)
How to set
Setting call Page 1
→
→
Graph
Press the X button on the graph display to go direct to the X end point entry screen.
Simple setting call
Setting call Page 2
→
→
Graph
Press the Y button on the graph display to go direct to the Y end point entry screen.
Simple setting call
