10.BCD DATA OUTPUT(OPTION)
77
・Input
10-5. Signal Timing
・PC
This signal turns on at the same time as BCD data when stable.
・OVER
This signal is outputted at the time of -ADC OVER, +ADC OVER, +overflow or -
overflow.

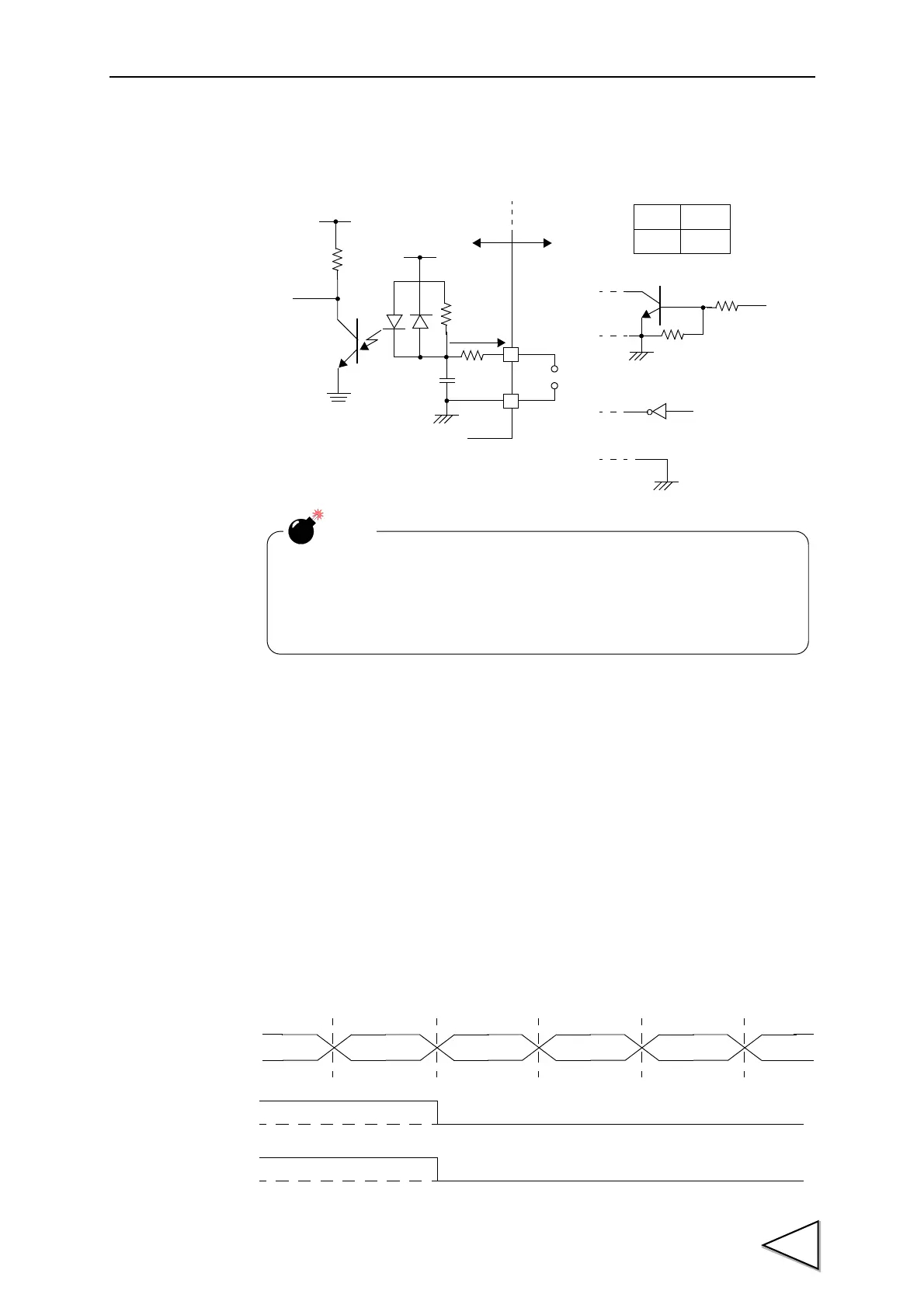

Vcc
F370
Inside
IC=Approx.6mA
COM
Switch
Transistor
+5V
TTL open collector output
Open OFF
Short ON
NOTE
- Do not apply external voltage to the signal input circuit.
- The external element is required to withstand Ic=10mA.
- Leakage from the external element is required to be 30μA or below.
Outside
(ON when IN is HI)
