DIN Rail Mounting
1. Snap the controller onto the DIN rail as shown in Figure 5.

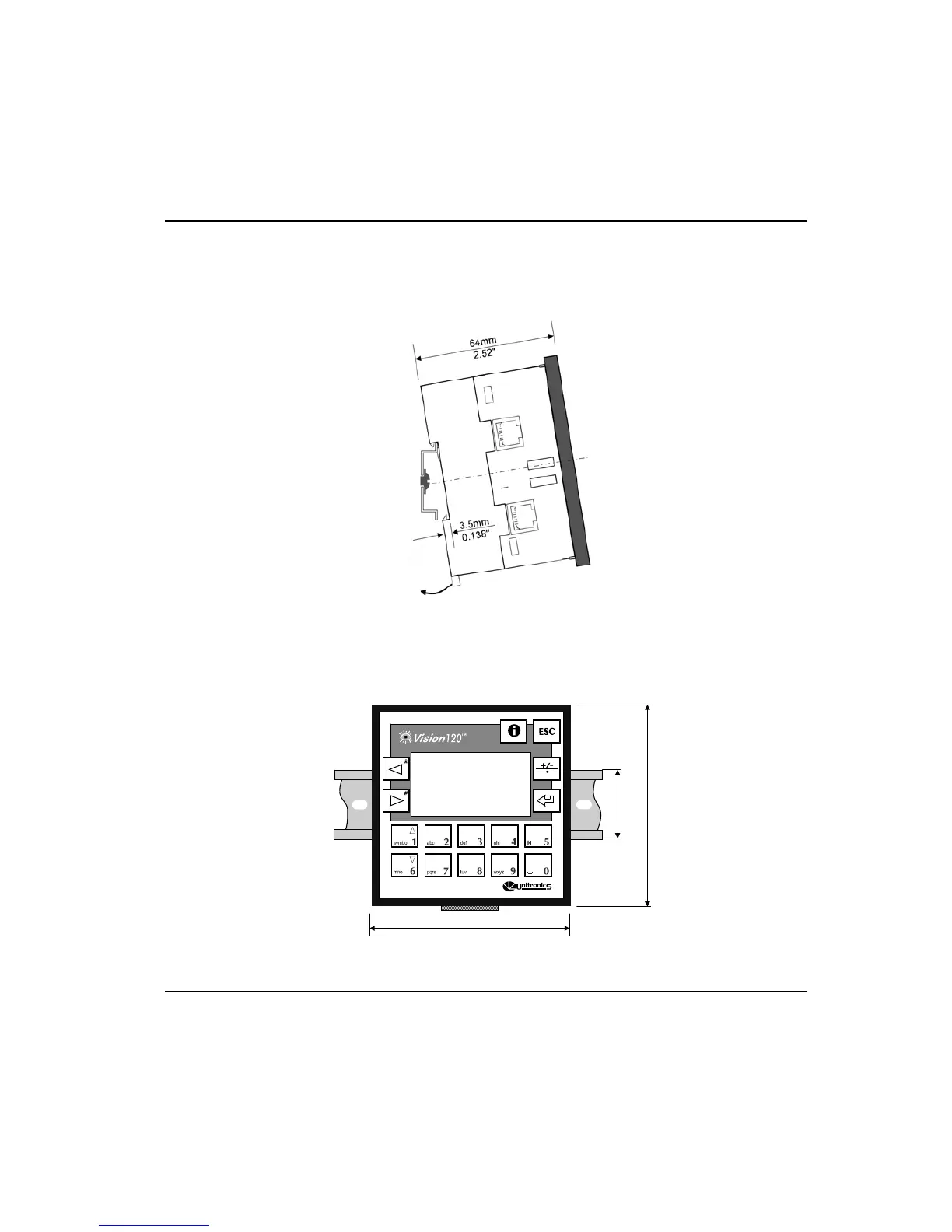

Figure 5. Snapping the Controller on to the DIN Rail
When properly mounted, the controller is squarely situated on the DIN rail as shown in
Figure 6.
96mm
3.78"
35mm
1.377"
96mm
3.78"
Figure 6. Proper DIN Rail Position
