UAD Powered Plug-Ins Manual - 67 - Chapter 5: CS-1 Channel Strip
DM-1 Delay Modulator
The DM-1 Delay Modulator provides stereo effects for delay, chorus, and
flange.
DM-1 Controls
Sync Button This button puts the plug-in into Tempo Sync mode. See Chapter 8 in the UAD
System Manual for more information.
L-Delay Knob Sets the delay time between the original signal and the delayed signal for the
left channel. When the Mode is set to one of the delay settings, the maximum
delay is 300 msec. When the Mode is set to one of the chorus or flange set-
tings, the maximum delay is 125 msec.
R-Delay Knob Sets the delay time between the original signal and the delayed signal for the
right channel. When the Mode is set to one of the delay settings, the maxi-
mum delay is 300 msec. When the Mode is set to one of the chorus or flange
settings, the maximum delay is 125 msec.
In the flanger modes, the L and R delay controls have slightly different func-
tions than when in the chorus modes. The high peak of the flanger is con-
trolled by the settings of the L and R delay controls. The low Peak of the flanger
is determined by the setting of the Depth control.
When delay times longer than 300ms are desired, use the DM-1L plug-in in-
stead. DM-1L has a maximum time of 2400ms per channel.

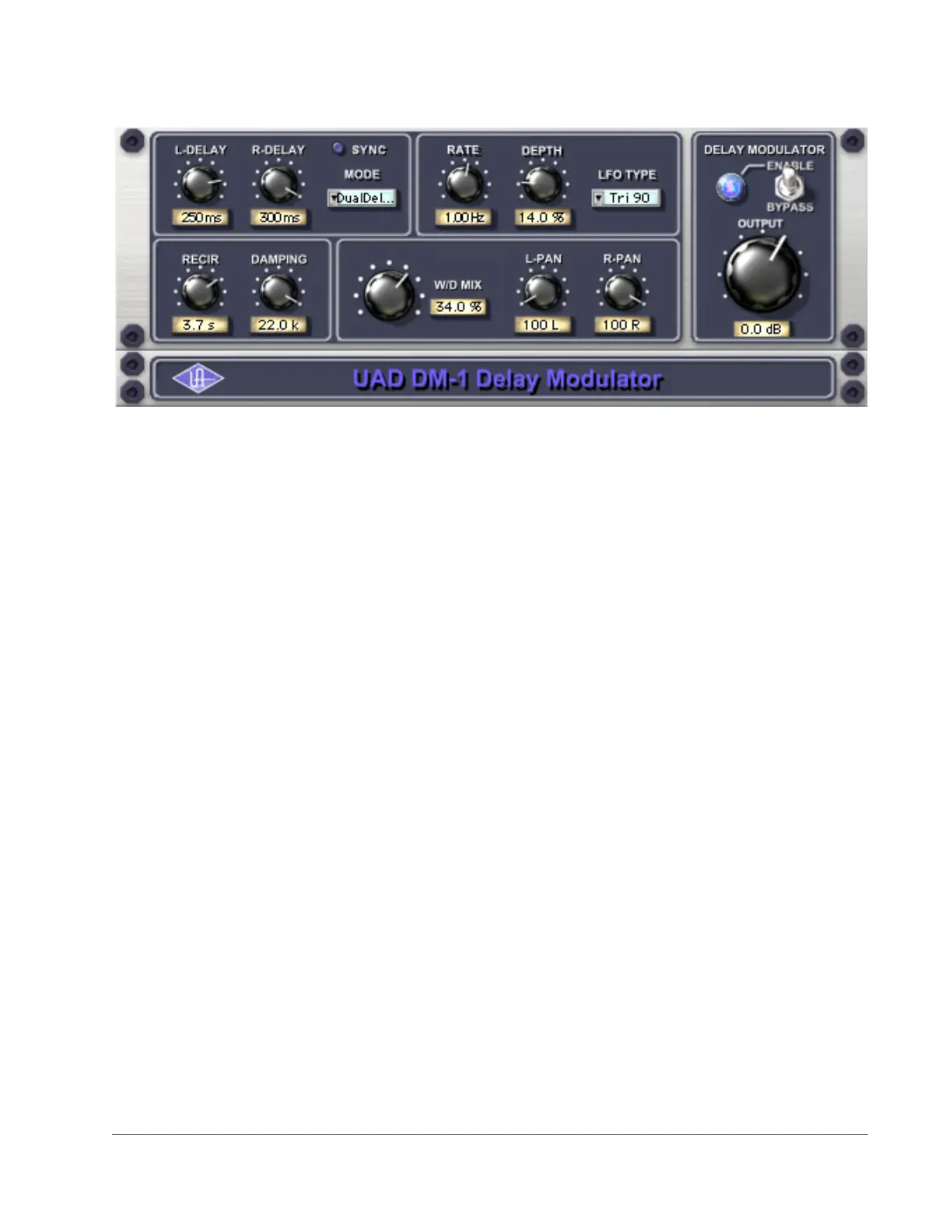

Figure 23. The DM-1 Delay Modulator plug-in window
