UAD Powered Plug-Ins Manual - 292 - Chapter 33: Precision K-Stereo Ambience Recovery
Output Gain Controls
Refer to Figure 91 below for the controls in this section.
L/R Gain Enable This switch enables/disables the Left/Right Gain and Link controls.
Link This switch links (gangs) the Left/Right Gain controls for ease of operation
when both channels require the same value. Disable Link when independent
left/right control is desired.
Note: When Link is inactive and Link is engaged, the left gain value is cop-
ied to the right gain. Any offset between the gain values is lost.
Left/Right Gain The independent Left and Right Gain have an available range of -24 dB to
+12 dB, available in 0.1 dB steps. To quickly return to the 0 dB setting, click
the respective LEFT or RIGHT text labels.
Note: The right channel gain control is disabled when the plug-in is used in
a mono-in/mono-out configuration.

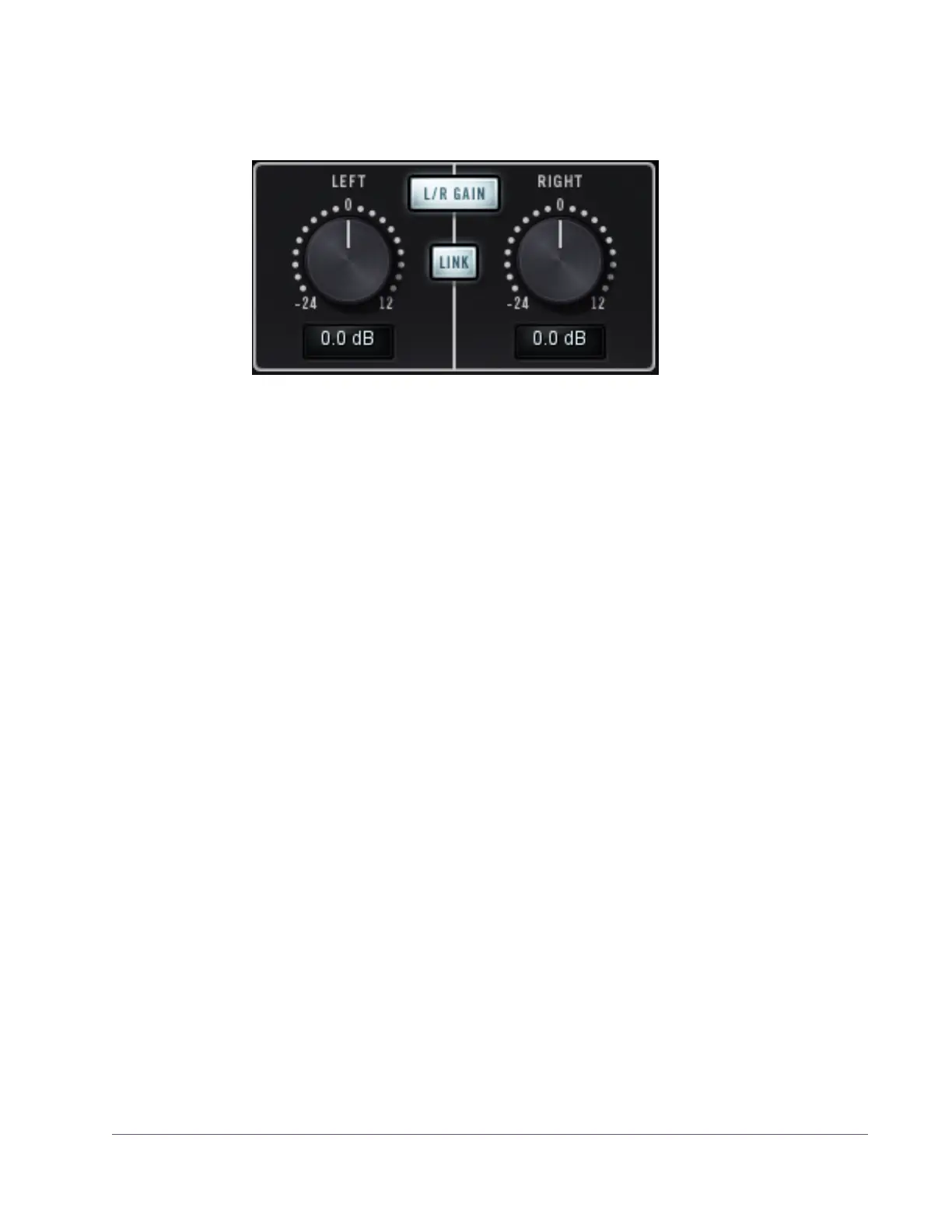

Figure 91. The Output Gain controls
