All rights reserved 172 Service Manual e-Series (EN) 1.1.8

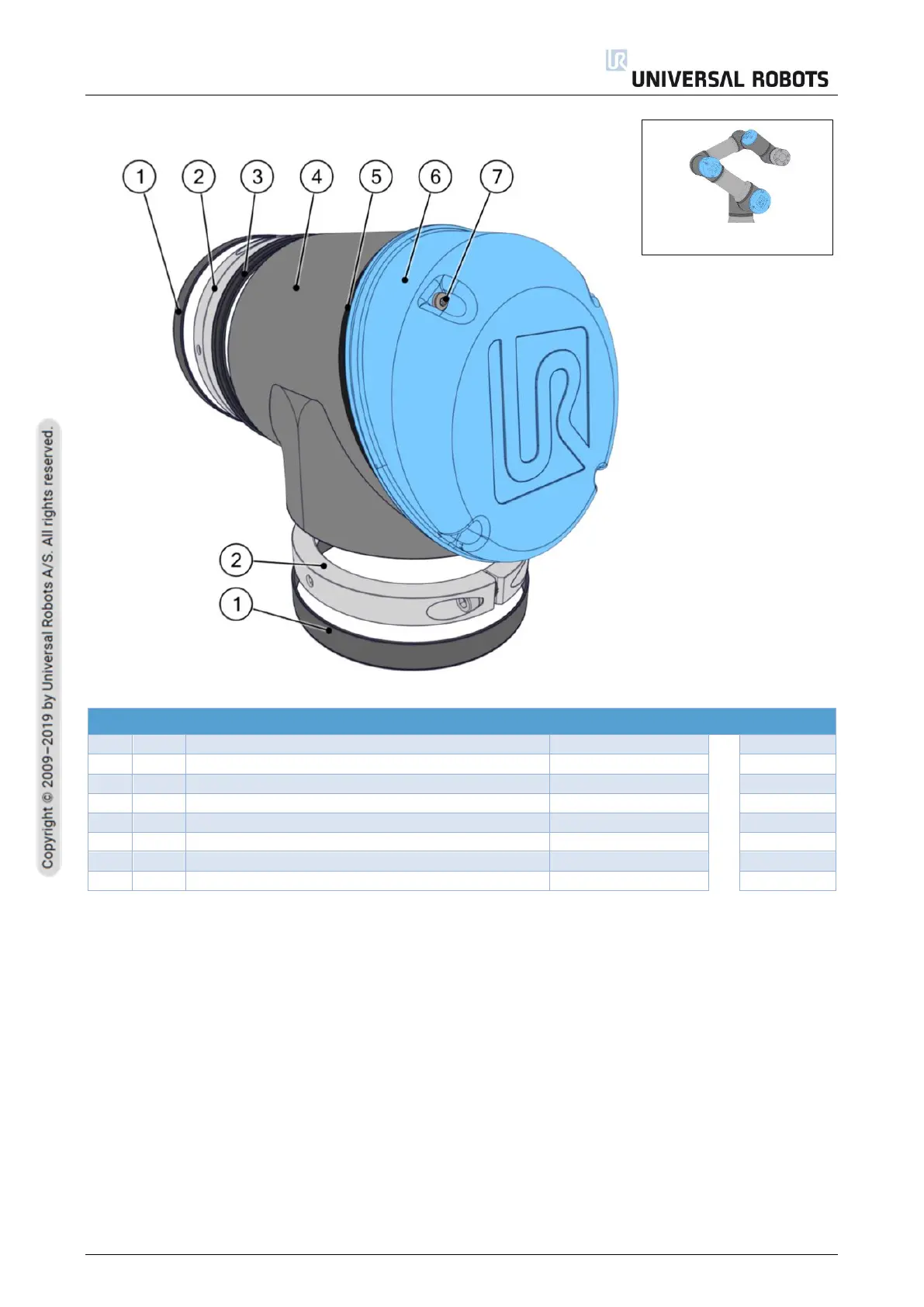

Shoulder joint for UR5e 124031
Shoulder joint for UR5e 124031
NO.
QTY.
DESCRIPTION
PART NUMBER(S)
PAGE NO.
1
2
Flat ring for size 3
103705
148
2
2
Bracket connection incl. bolts and seals size 3
N/A
N/A
3
1
Wear ring size 3
103705
148
4
1
Shoulder, size 3
N/A
N/A
5
1
O-ring for lid size 3
103405
151
6
1
Lid size 3
103405
151
7
4
Screws for lid size 3
103405
151
Return to overview
