8.2 Control Box

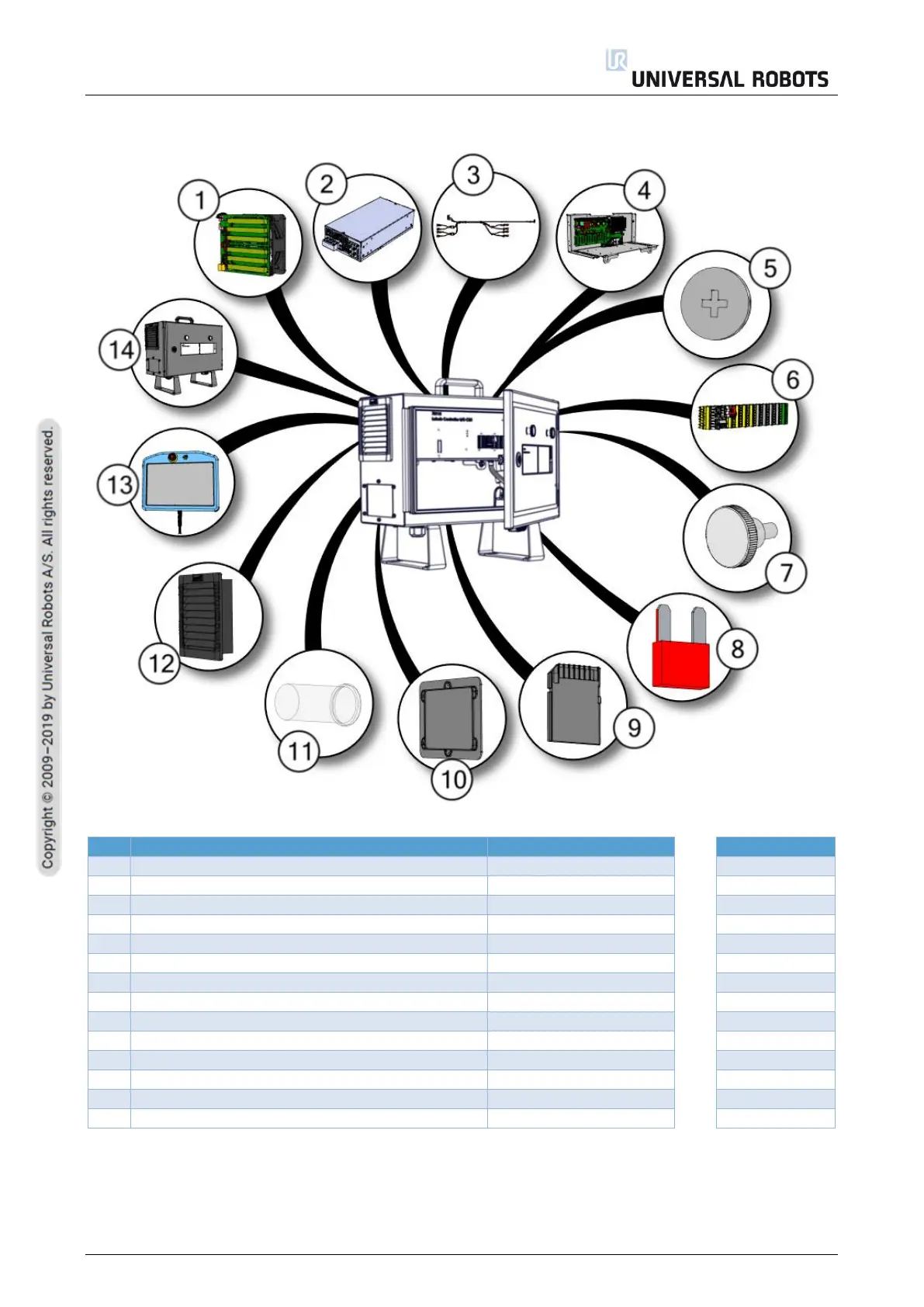

Click on the page no. in the right column to see part in detail or go to the page.
NO.
DESCRIPTION
PART NUMBER(S)
PAGE NO.
1
Fan & Energy Eater
122750
181
2
Power Supply
177525/177526/177005
182
3
Wire bundle Power Supply Unit
164071/164072
184
4
Control Board
124511
185
5
Battery for Control Board
170009
186
6
Terminals for Control Board
104007
187
7
Teach Pendant and Control Box mounting bolt
105202
188
8
Fuse for Control Board
170008
189
9
SD Card for Control Board
170010/170013
190
10
Cover plate with seal for Control Box
103240
191
11
Light Pipe for Control Box
170007
192
12
Fan housing and filter for Control Box
104008/170020
193
13
Teach Pendant
124091
194
14
Control Box
124500/124510
195
NOTE: If nothing is mentioned, the parts will also fit OEM version Control Box.
