All rights reserved 36 Service Manual e-Series (EN) 1.1.8
MANDATORY ACTION
The joint can fall off if not supported when removing the screws.

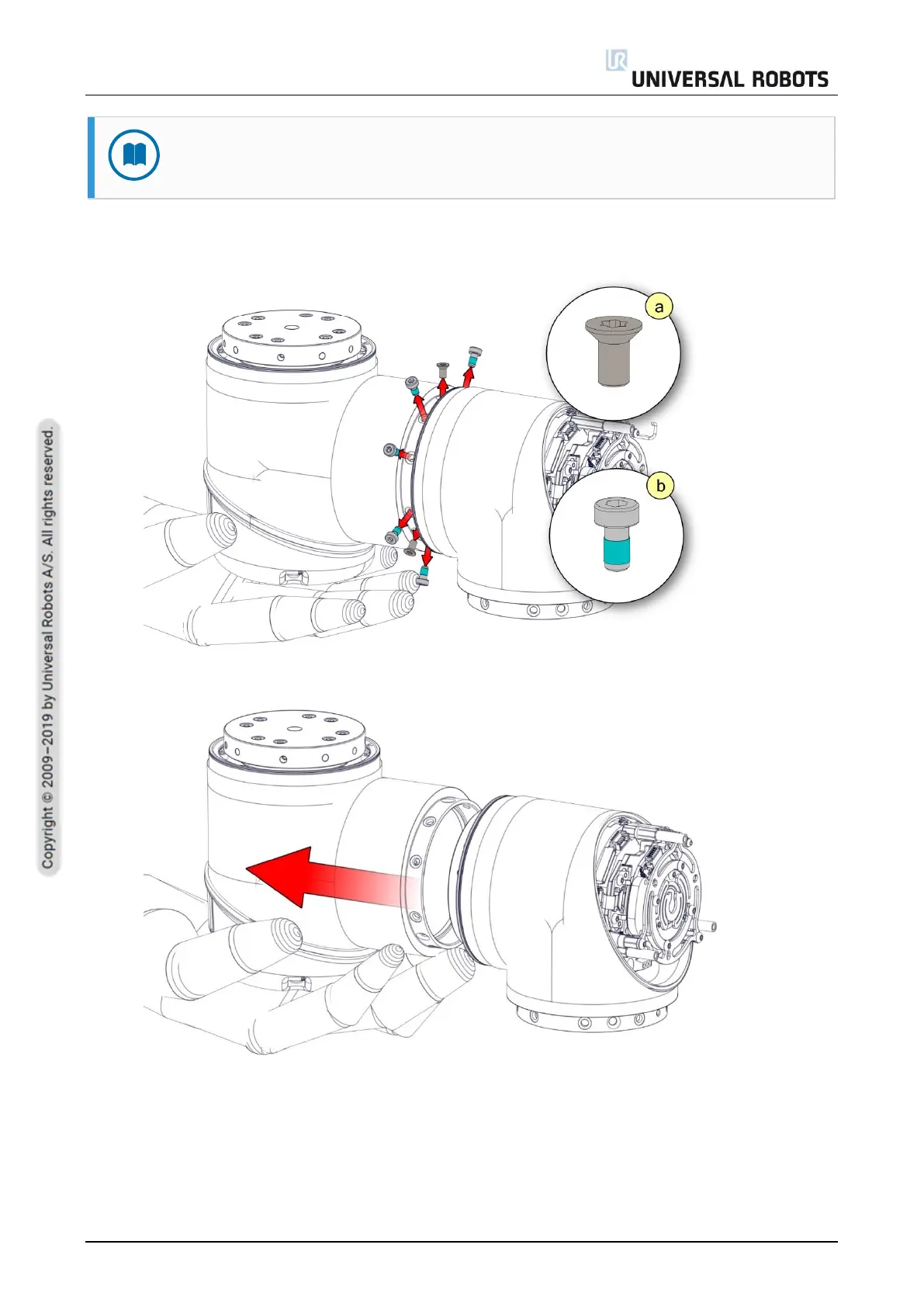

5. First remove the countersunk screws(a) then the remaining(b) screws.
6. The joint is now loose and can be removed. Remember to pull the wires out.
