Universal Robots E Series - Tool I;O Configuration

All rights reserved 65 Service Manual e-Series (EN) 1.1.8

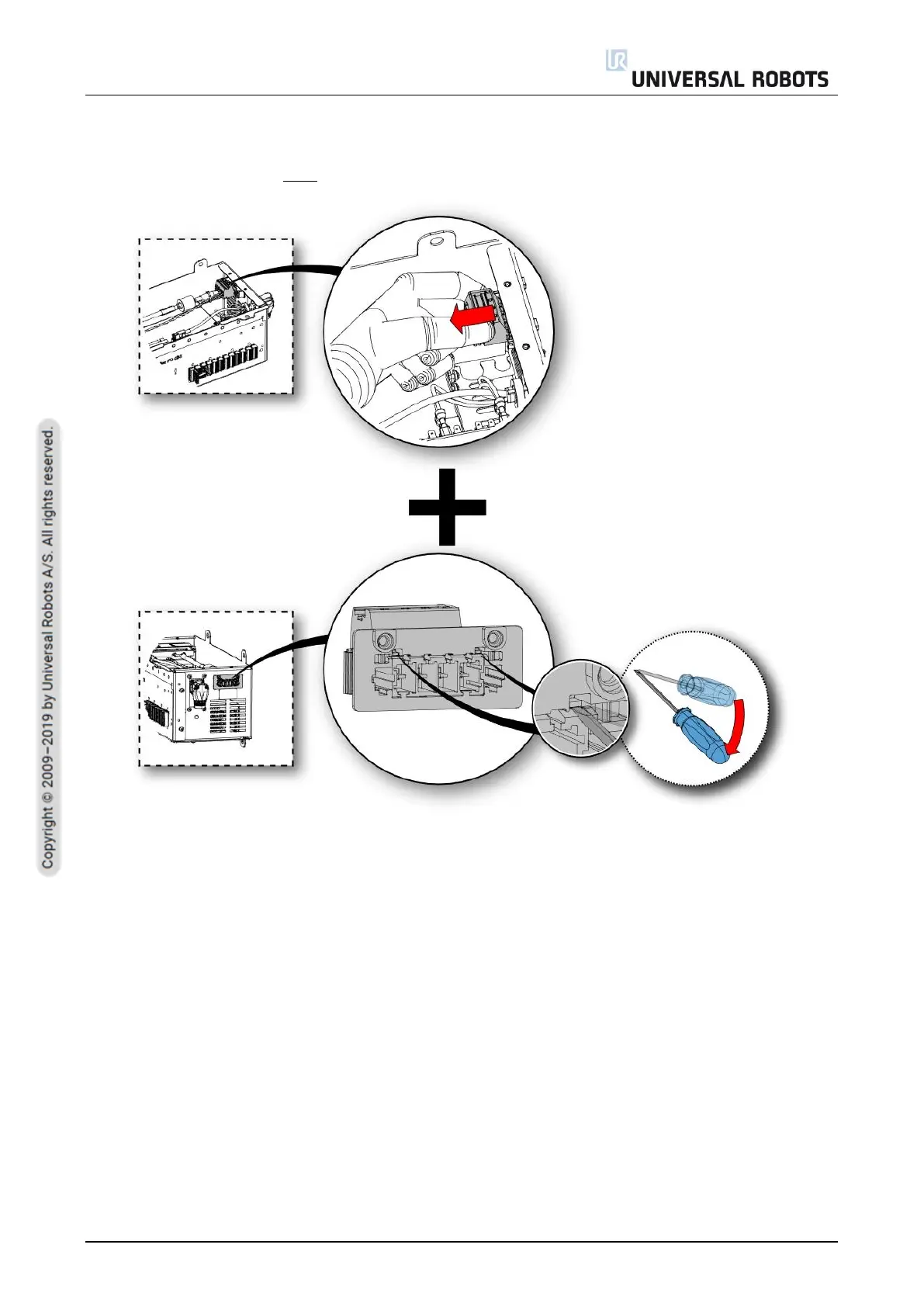

8) For removing the power plug, you will need a small 2mm flathead screwdriver.
Pull in the power plug AND tip the two front locks upwards at the same time
9) Remove all connections to the Control Board.
