Universal Robots UR-6-85-5-A Service Manual

Side 13 af 26 UR-FK 2011

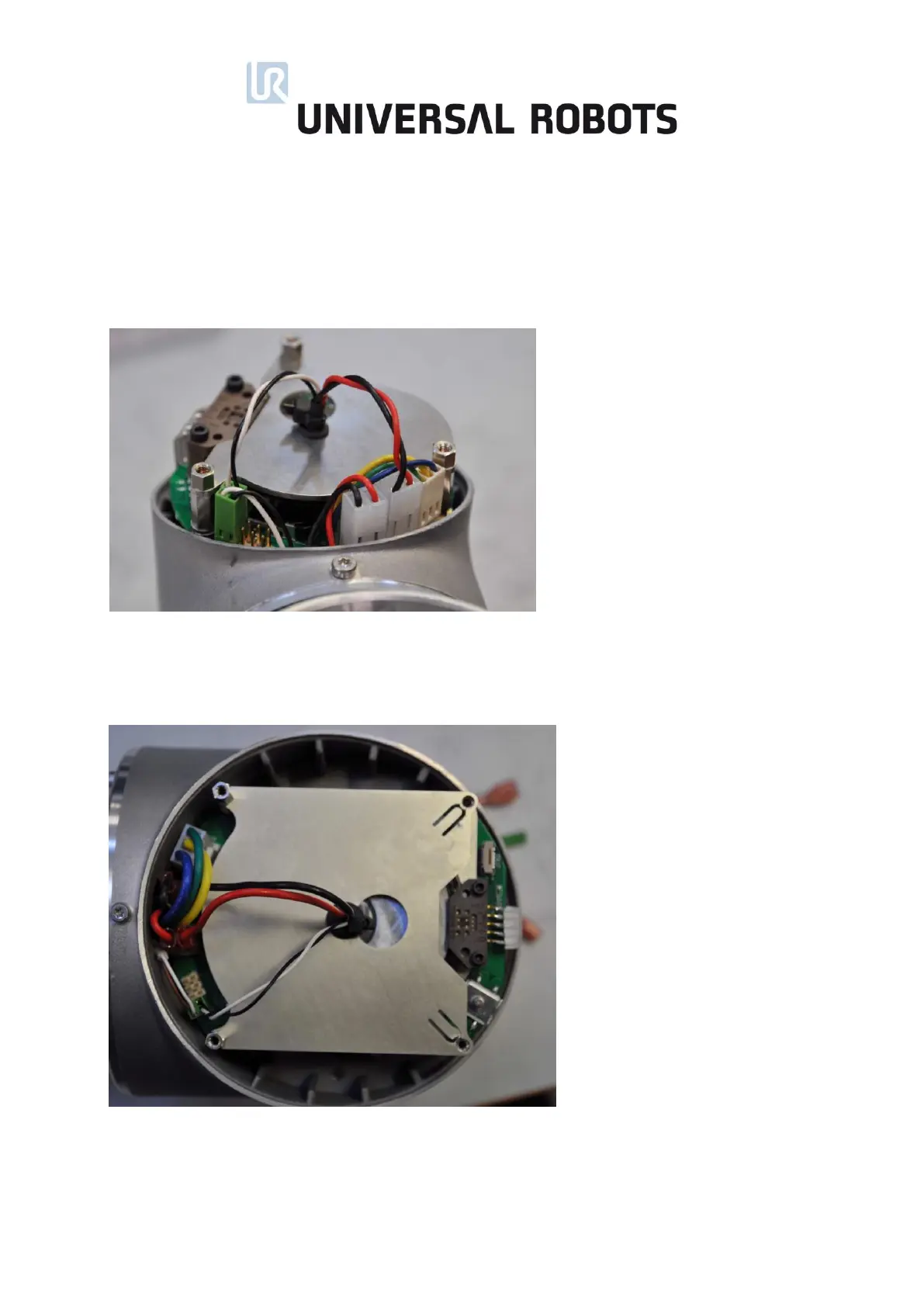

Fitting the wires
Fit the wires as shown in the image.
Size 1: Insert the white connector with the red and black live wire into the pin on
the circuit board. Insert the green communications connector into the pin on the
circuit board.
Size 3: Insert the red and black live wire on the spade lug on the circuit board.
Insert the green communications connector into the pin on the circuit board.
Replace the blue plastic protective cover, perform a reset and the robot is ready for
use.

Universal Robots UR-6-85-5-A Specifications

General

Brand	Universal Robots
Model	UR-6-85-5-A
Category	Robotics
Language	English
