Page 12
49668501 Rev. D Radial 8, 88, HT Feeders (Dispensing Heads)
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)

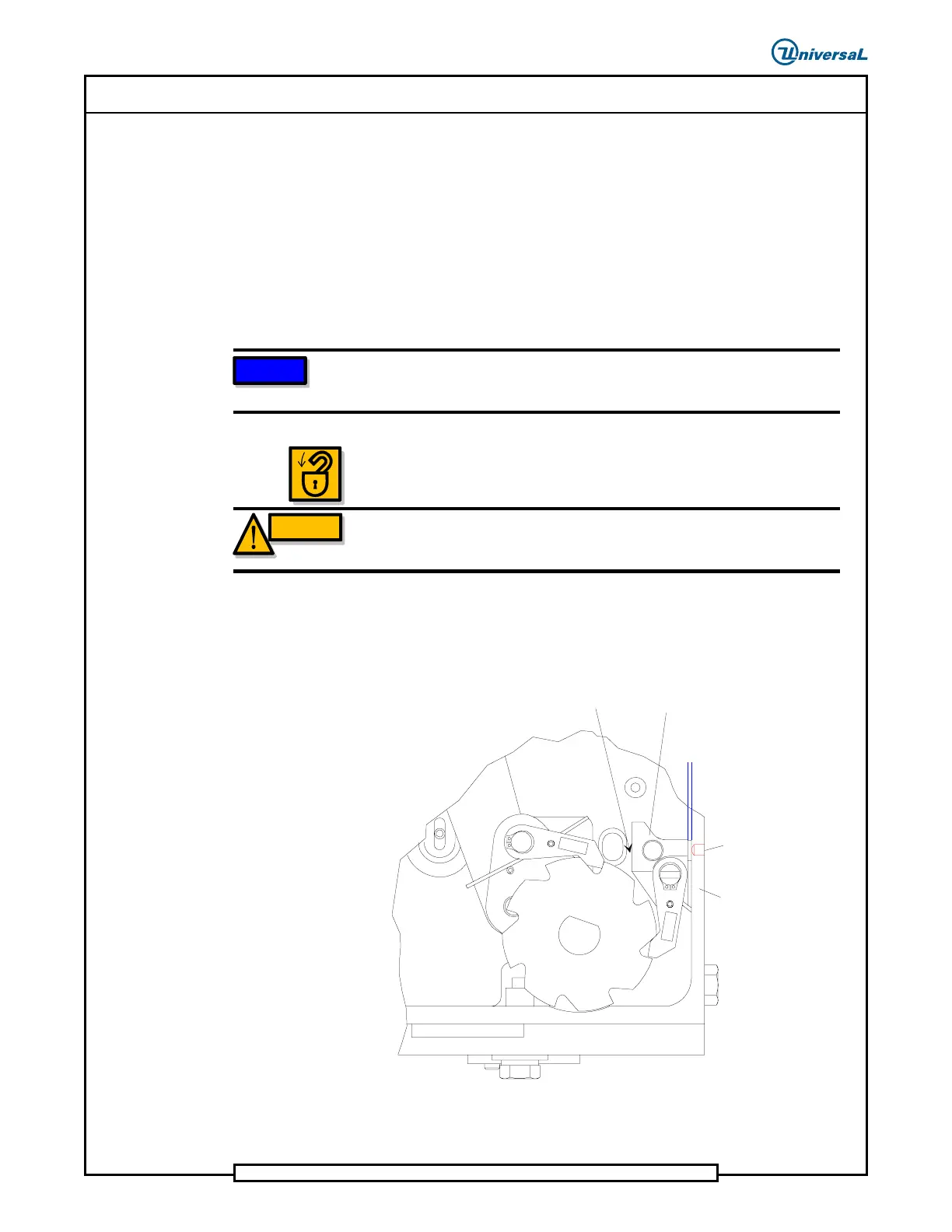

If the clearance between the anti-back-up dog and the ratchet wheel is too
small, the dog fails to properly position at the end of the return stroke. This
would allow the feed wheel to back up on the next forward stroke and fails to
advance the component carrying cardboard strip. If the clearance is too
large, the component carrying cardboard strip backs up a small amount
causing the components to become misaligned in relation to the pushers.
Prerequisites:
Feeder Return Stroke Stop Adjustment
NOTE
The tooth that was marked in the feeder return stroke stop adjustment
should be used for performing this adjustment.
1. Power down the machine and perform Lockout/Tagout according to
local procedures.
WARNING
The machine must be powered down and the local Lockout/Tagout
procedure performed to ensure personal safety during this procedure.
2. Remove the feeder from the machine.
3. Loosen the mounting block locking set screw. Turn the set screw in
until it just bottoms out, but do not tighten.
Insert Screwdriver Here
Locking
Set Screw
Parallel
Mounting Block
Housing
4. Use a flat blade screwdriver to turn the mounting block to be parallel
with the housing as shown.
