Page 34
49668501 Rev. D Radial 8, 88, HT Feeders (Dispensing Heads)
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)

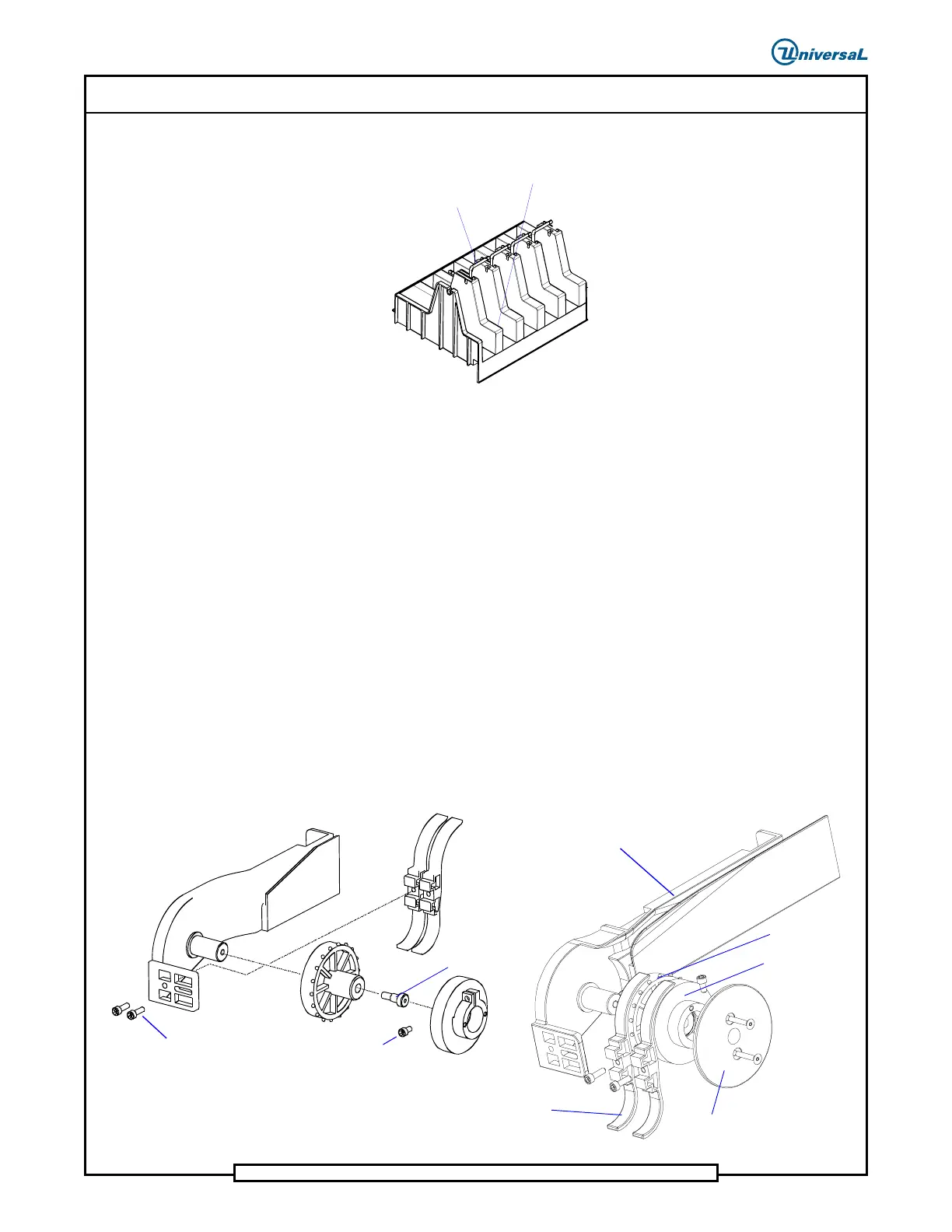

1. To load ammo boxes of components, slide them into the divider 2 slots.
Pivot Rod Reel
Divider 2 Slots
2. To load component reels, unlock and extend the pivot rod, inserting the
hub of the reel over the end of the pivot rod.
3. Lower the reel containing the pivot rod until the reel rests between the
appropriate divider in the reel bin holder assembly and the pivot rod
snaps into its receiver, securing the reel in the top of the divider.
4. When not in use, pivot the pivot rod 90 degrees and secure it in the slot
to keep it clear of tape components when running ammo packs.
End of procedure
Assembling The Component Lead Conditioner
To assemble the component lead conditioner, perform the following
procedure.
1. Attach to the component lead conditioner bracket, both tape guides
with the hardware shown.
Shoulder Bolt
SHCS 10-32 x 3/8
SHCS 10 - 32 x 5/8
Bracket
Component Guide
Wheel 1
Wheel 2
Tape Guide
To Next Page
