Universal Radial 8HT - Disassembling the Feeder

Page 23
Radial 8, 88, HT Feeders (Dispensing Heads) 49668501 Rev. D
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)
Disassembling The Feeder
The following steps and illustrations explain how to disassemble the feeder.
It provides sufficient information to access all parts but does not detail the
more obvious procedures. If additional assistance is required, refer to the
feeder assembly procedures.
11
8
9
37
17
2
1
3
4
6
7
14
Gib
Set Screw
5
12
13
15
16

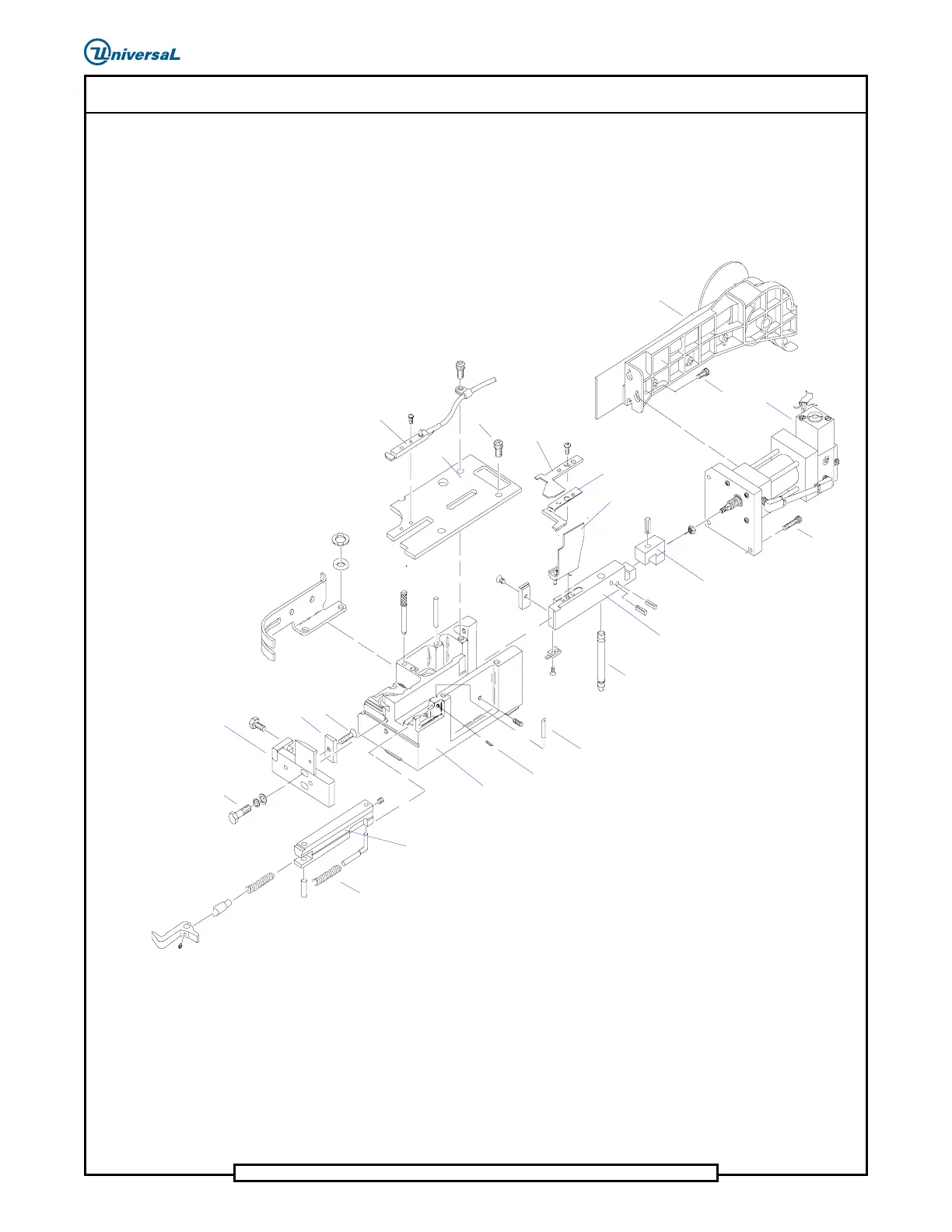

Feeder Assembly - Top View
43
44
42
To disassemble the feeder, use the following procedure.
1. Loosen the cap screws (1) that secure the component lead conditioner
assembly (2) to the cylinder and valve unit (3) only enough to allow
assembly removal. Refer to the drawing package for details pertaining
to the disassembly of the component lead conditioner.
