49668501 Rev. D Radial 8, 88, HT Feeders (Dispensing Heads)
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)

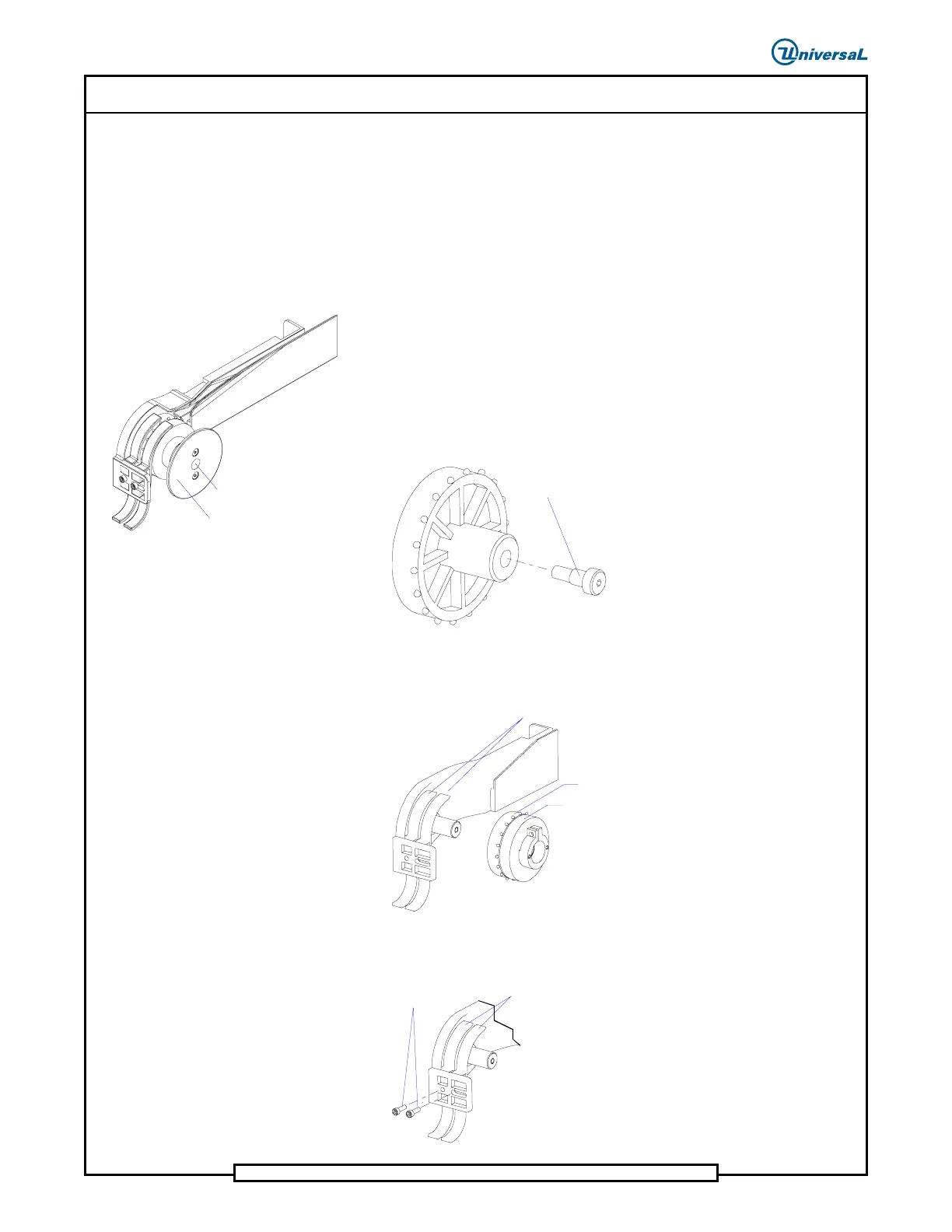

Component Lead Conditioner Tape Guide
Removal
It may become necessary to remove the tape guide in the event of wear.
To remove the component lead conditioner tape guide, perform the following
procedure.
1. With the component tape removed from the component lead
conditioner, loosen the two screws securing the component lead
conditioner to the feeder.
2. Remove the component lead conditioner from the feeder.
3. Remove the component guard.
Component Guard
Access Shoulder
Screw Through
Hole
4. Remove the shoulder screw.
Shoulder screw
5. While holding the tape guides up so that the small tabs on component
lead conditioner wheel 2 are clear, pull both wheels out from assembly.
Wheel 1
Tape Guides
Wheel 2
6. Remove the SHCS securing the tape guide to the component lead
conditioner bracket and replace the tape guide.
SHCS
Tape Guides
