49668501 Rev. D Radial 8, 88, HT Feeders (Dispensing Heads)
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)
Refire Assembly Adjustment
To ensure that components with small lead diameters will be accurately
sensed while maintaining the ability to detect missing components, the
overlap of the refire housing to the component support must be set.
Prerequisites:
Machine main power is on, machine is palmed down.
To adjust the feeder refire assembly, perform the following procedure.
1. Loosen the refire housing screws. Adjust the refire housing until the
refire contact is flush to within .010 inch (0,25mm) overlap with the
edge of the component support section of the cutter holder. Refer to the
illustration.

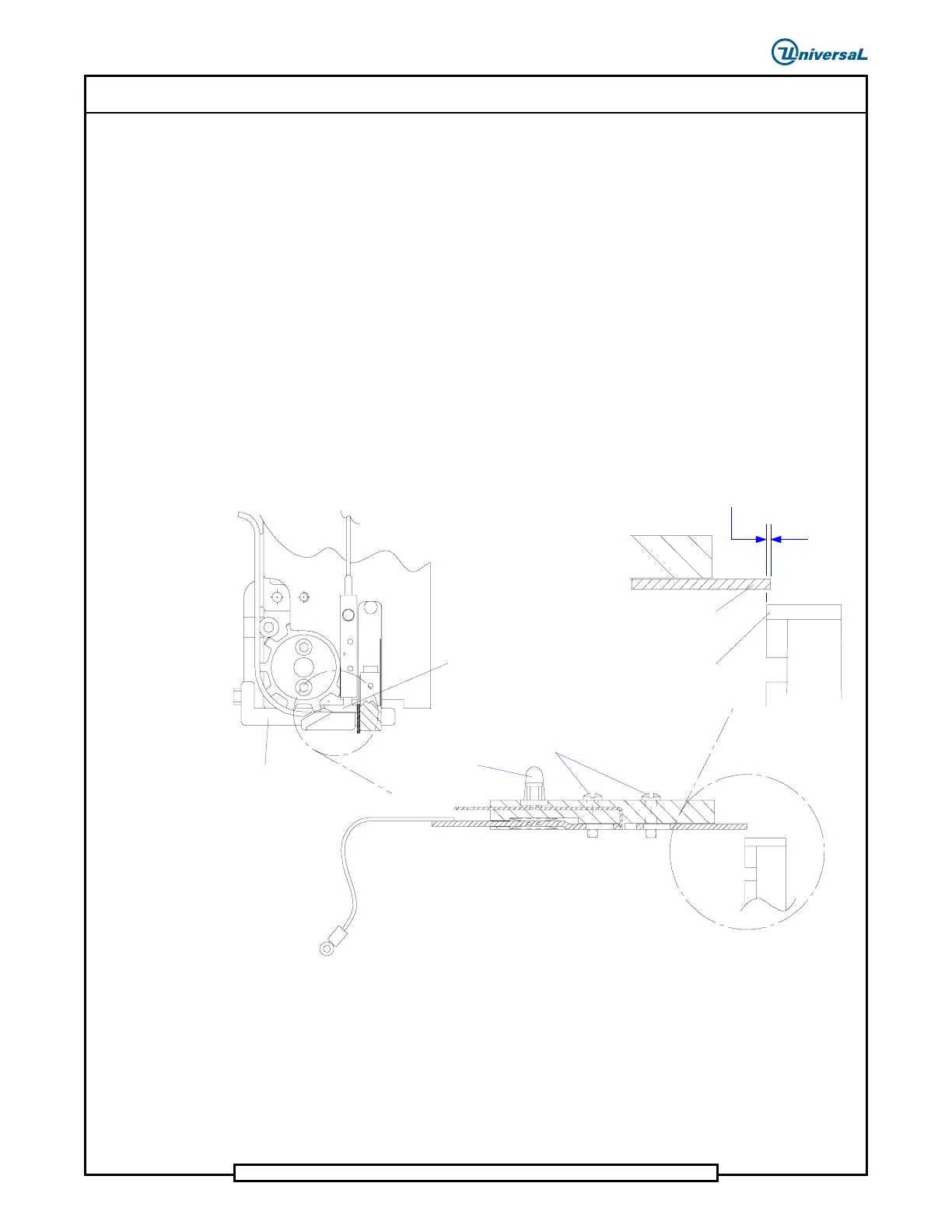

Dispensing Head - Top View
Cutter
Holder
Refire Contact
Refire Housing - Side View
Refire Housing Screws
Component Support
section of Cutter Holder
Refire Contact
LED
Align Refire Contact flush
to .010 inch (0,25mm) overlap
of top edge of Component Support
section of Cutter Holder
2. Loosen the screws and alternately adjust the position of the feeder
cover and the refire housing until the results described in step 1 are
achieved. Ensure that all screws are tight when the setup is completed.
End of procedure.
