Radial 8, 88, HT Feeders (Dispensing Heads) 49668501 Rev. D
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)

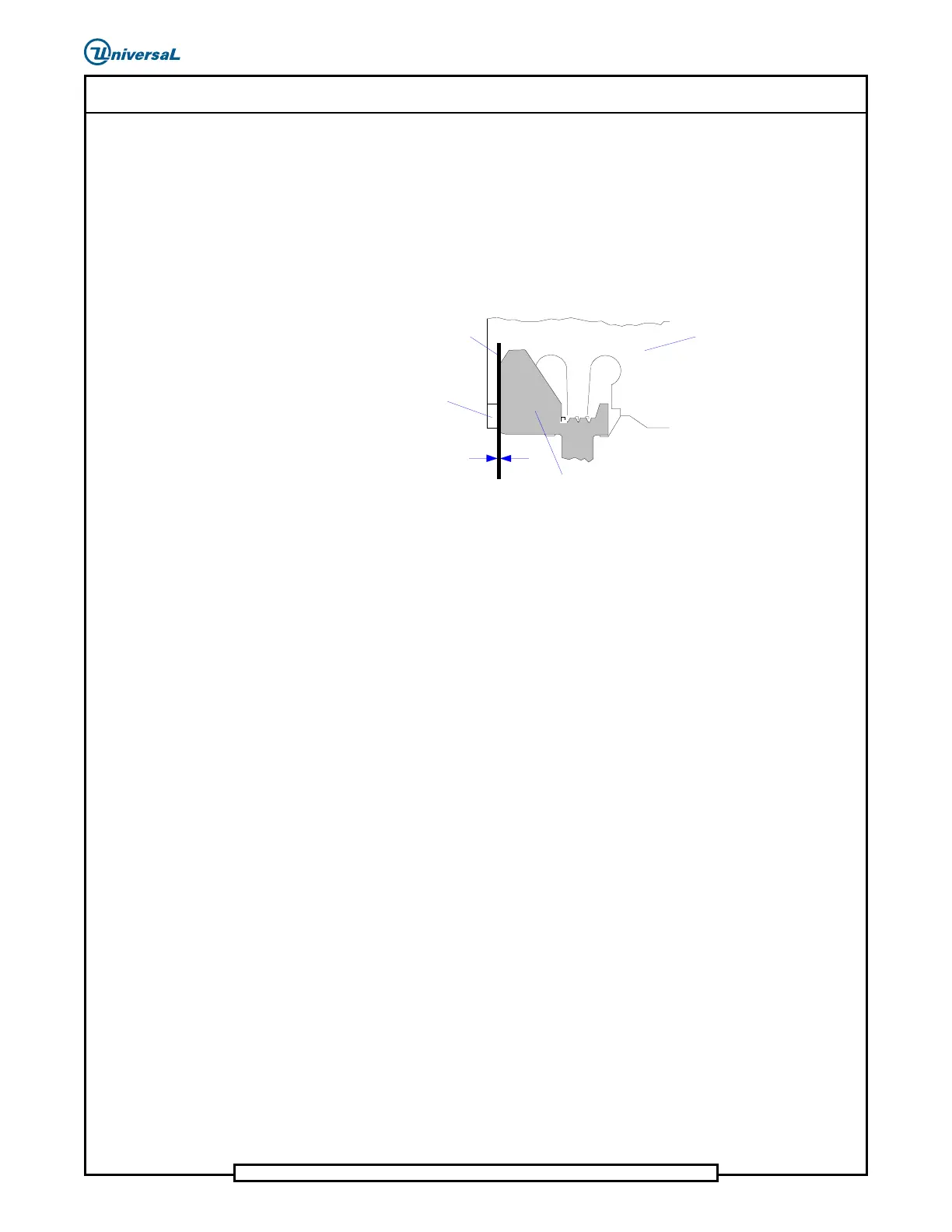

5. Insert the .030 inch (0.76mm) feeler gauge setup tool where illustrated
and check the clearance.
When properly aligned, the feeler gauge is touching both surfaces and
the carrier clip is displaced as far as it will go to the left.
If adjustment is necessary, loosen the socket head cap screw, which
holds the feeder on the sequencer, and push the dispenser to the left
until the correct alignment is obtained.
Feeler Gauge
Setup Tool
.030 inch
(0,76 mm)
Pusher
Carrier
Clip
Carrier Clip
Boss
6. After making the adjustment, retighten the socket head cap screw and
withdraw the feeler gauge setup tool.
7. Using the Manual Diagnostics window, turn the main air dump back
on.
8. Ensure that the main driver retracts and is clear of the chain clip.
9. Verify that the carrier clips, after being displaced to the left by the
pusher, return fully to the right after the pusher retracts.
10. After completing the alignment of all feeders, zero the chain again.
11. Refer to step 5 and verify that the alignment of the feeders is correct. If
needed, repeat the entire procedure again to obtain the proper
adjustment.
End of procedure
