2. While lifting the tape guide to clear the pins of wheel 1, slide wheels 1
and 2 onto the hub on the bracket as shown. Secure with the shoulder
bolt.
3. Attach the component guard to wheel 2 with the hardware as shown.
4. Insert 10-32 x 3/8 SHCS into the hub on wheel 2. Adjust the wheel up
against wheel 1 and tighten the socket head cap screw.
End of procedure
Assembling The Low Parts Warning

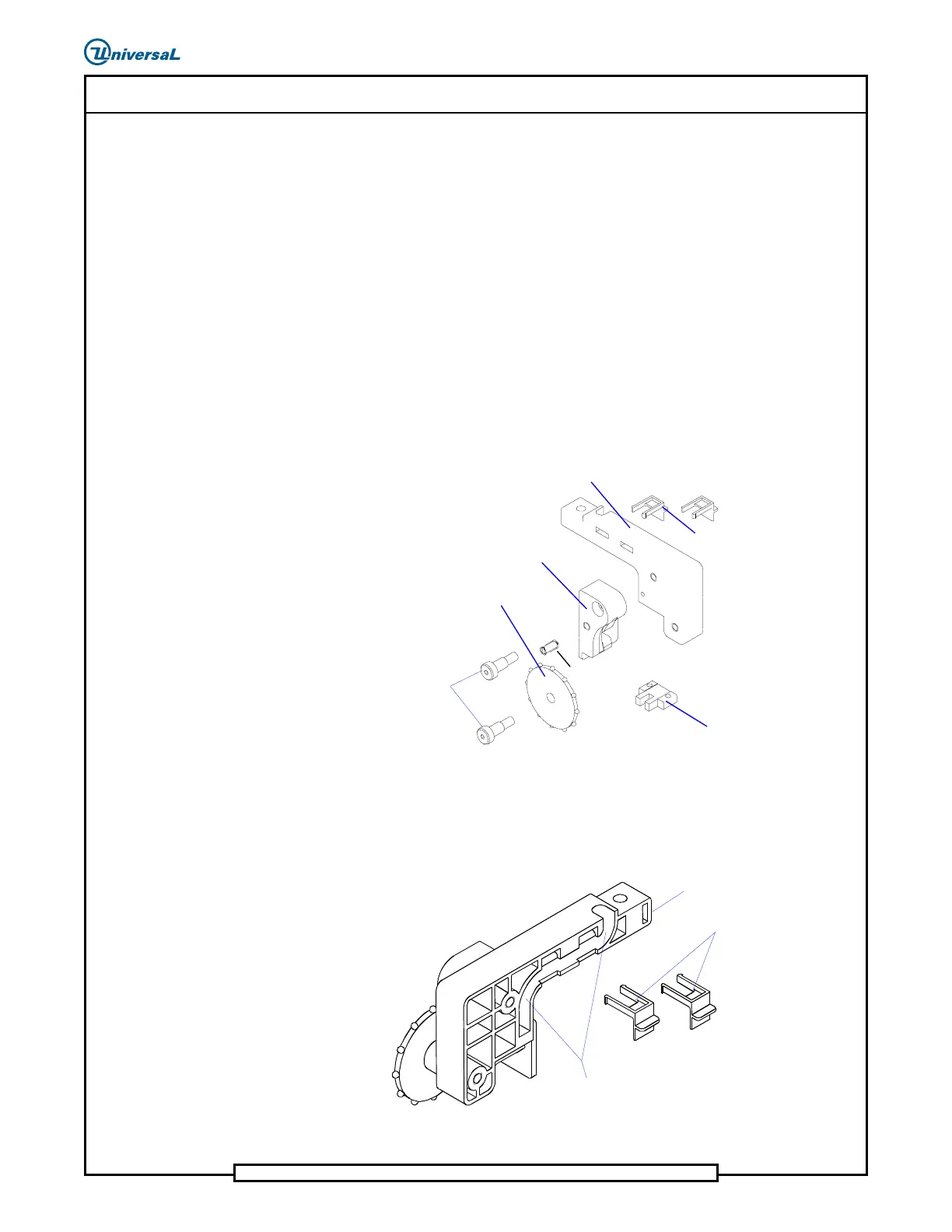

1. Attach the guide sensor to the assembly with a 5/16 x 1/2 inch shoulder
screw.
Guide Wheel
Sensor
Guide Sensor
Bracket Sensor
SHSS
5/16 x 1/2
Optical Switch
Wire Retainer
Ball Plunger
2. Attach the guide wheel sensor with a 5/16 x 1/2 inch shoulder screw.
3. Attach the optical switch with 2 pan head machine screws.
4. Attach the wire harness plug to the switch.
Wire Retainers
Sensor Bracket
Wire Track
5. Run the wire in the wire track and secure with 2 wire retainers.
