Radial 8, 88, HT Feeders (Dispensing Heads) 49668501 Rev. D
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)
Feeder Maintenance
This section contains feeder corrective maintenance procedures. Refer to the
Feeder Assembly Drawing section at the beginning of this module and the
Feeder Drawings section in the Maintenance Support Document for
additional feeder drawings. Refer to these drawings when ordering
replacement parts for the feeder.
Upon completion of feeder maintenance, refer to the adjustments section of
this module and perform the necessary procedures to ensure that the feeder
operates correctly.

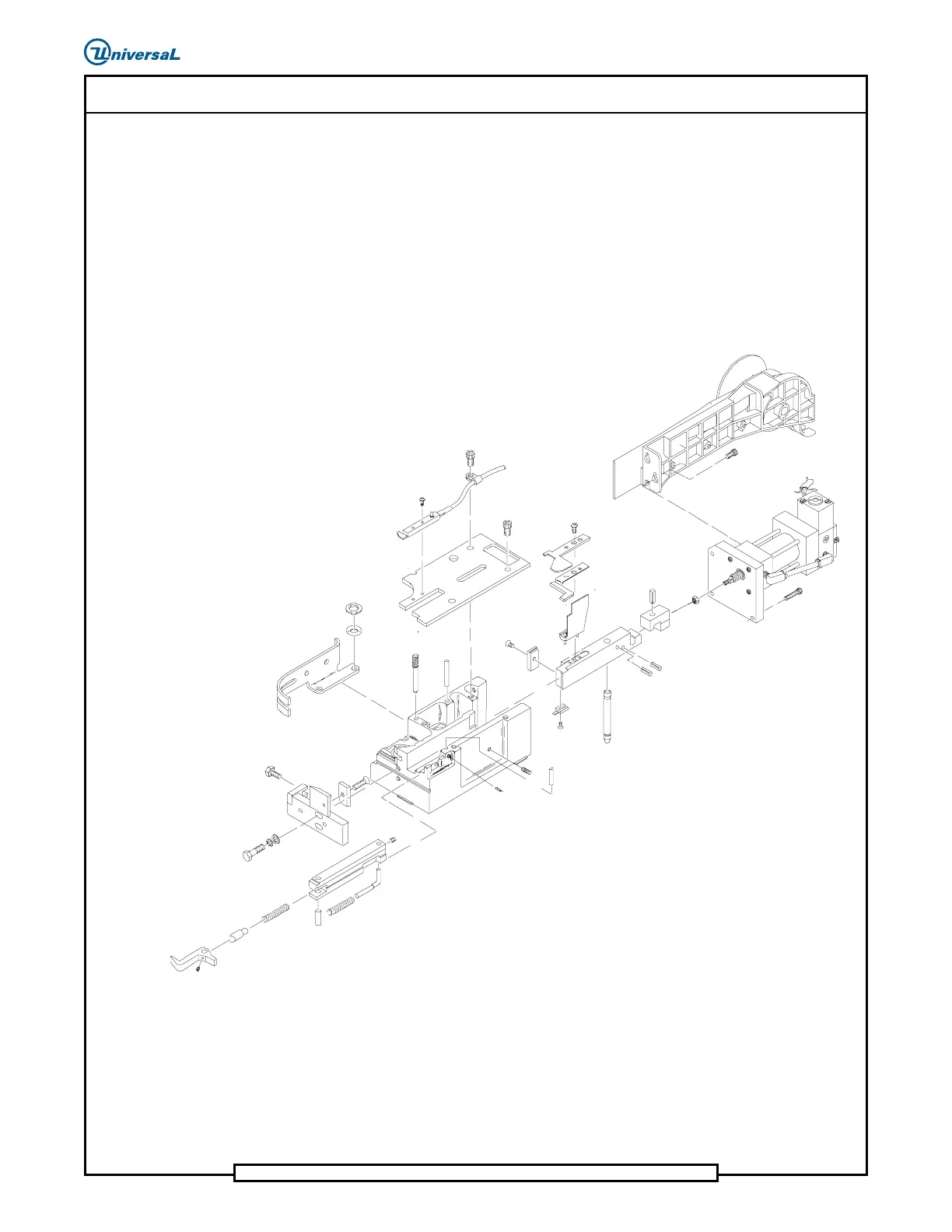

Exploded Parts View of the Feeder Assembly
Removing the Feeder From The Sequencer Module
The following steps explain how to remove the feeder from the sequencer
module.
