49668501 Rev. D Radial 8, 88, HT Feeders (Dispensing Heads)
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)
3. Observe whether the pushers are pushing the component leads all the
way into the notches in the carrier clip. The pusher should be
contacting the front of the leads, and the leads should be contacting the
back of the notches in the carrier clip. The component should move
easily up and down in the clip.

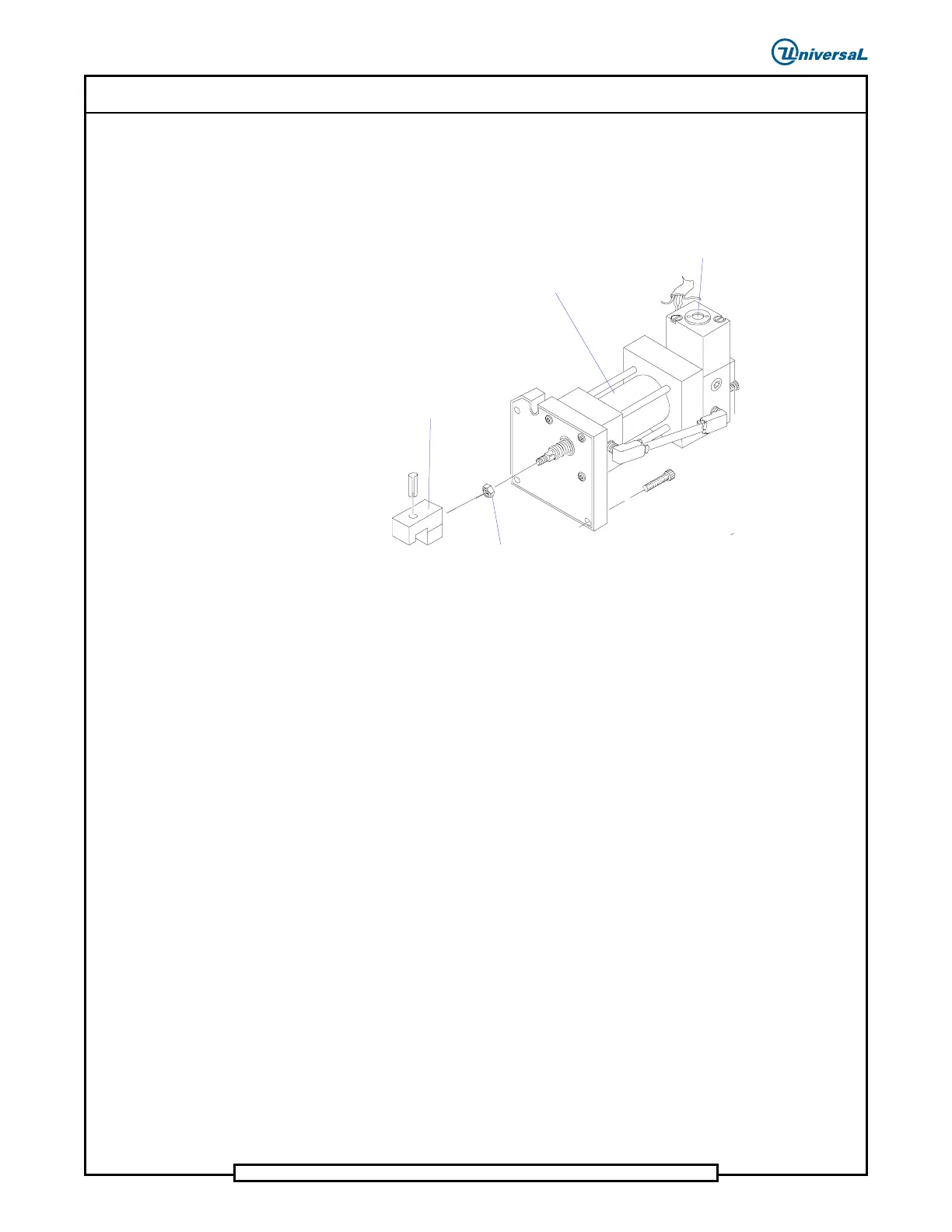

Solenoid Valve Button
Link Driver
Pneumatic Cylinder
Lock Nut
4. Release the button on the solenoid and remove the component from the
carrier clip. Check from the side and verify that the leads are straight.
5. If the leads are bent, an adjustment is necessary. Push the Emergency
Stop palm switch in to remove the air from the feeder.
6. Loosen the lock nut on the shaft of the pneumatic cylinder and thread
the shaft into or out of the link driver as shown below.
7. Repeat steps 3 through 7 until the correct adjustment is achieved.
8. Tighten the lock nut.
End of procedure
