Page 22
49668501 Rev. D Radial 8, 88, HT Feeders (Dispensing Heads)
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)
1. Power down the machine and perform Lockout/Tagout according to
local procedures.
WARNING
The machine must be powered down and the local Lockout/Tagout
procedure performed to ensure personal safety during this procedure.
2. Disconnect the electrical cable from the feeder.
3. Disconnect the pneumatic lines at the rear of the feeder.

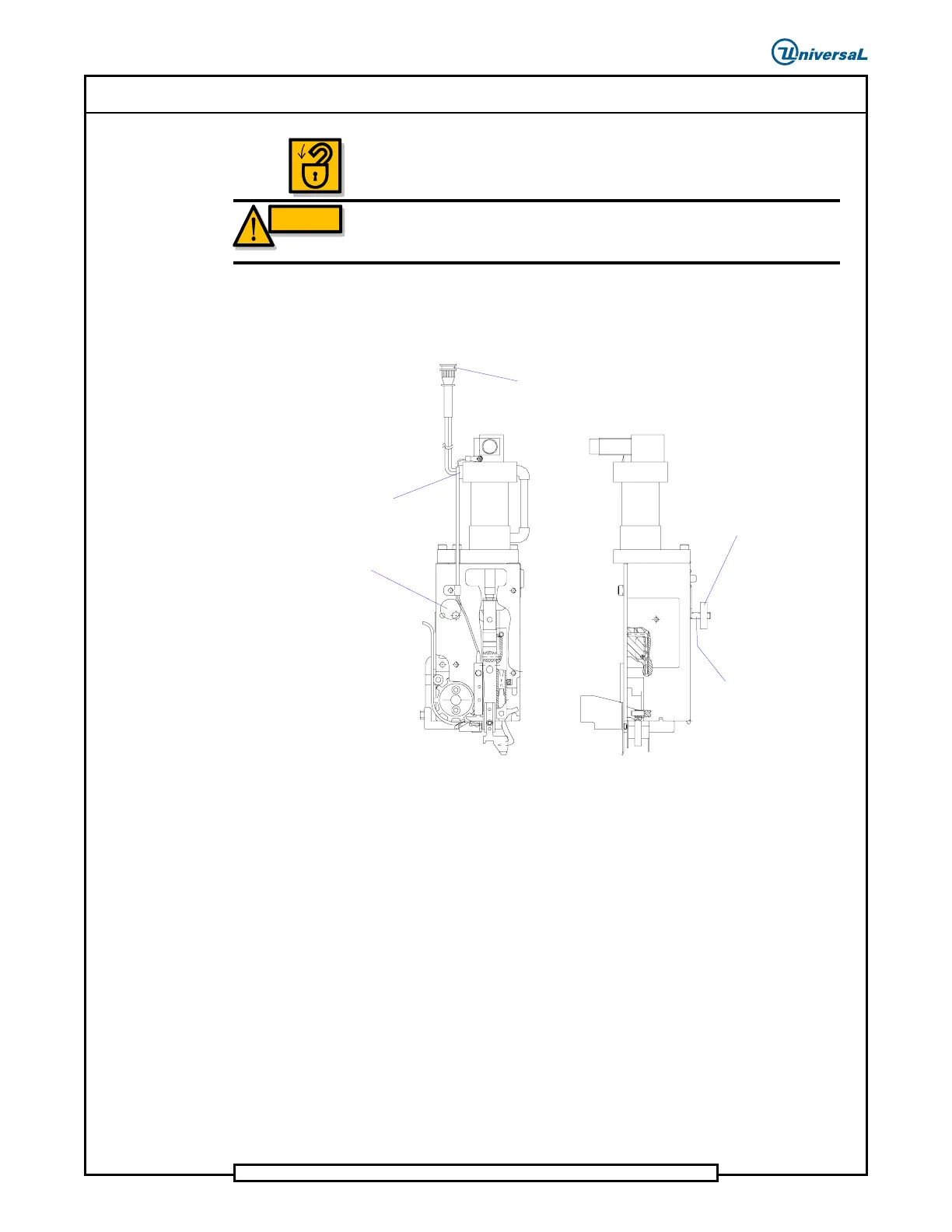

Nut Plate - located in
Sequencer machined
casting slot
Mounting Screw
SHCS 1/4 - 20 x 1 3/4
Side ViewTop View
Electrical
Disconnect
Pneumatic
Disconnect
Access hole for
mounting screw
4. Remove the mounting screw which threads into the nut plate. This
mounting screw can be accessed through the hole in the Feeder top
cover.
5. Lift the feeder off the sequencer module.
End of procedure
