Radial 8, 88, HT Feeders (Dispensing Heads) 49668501 Rev. D
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)
NOTE

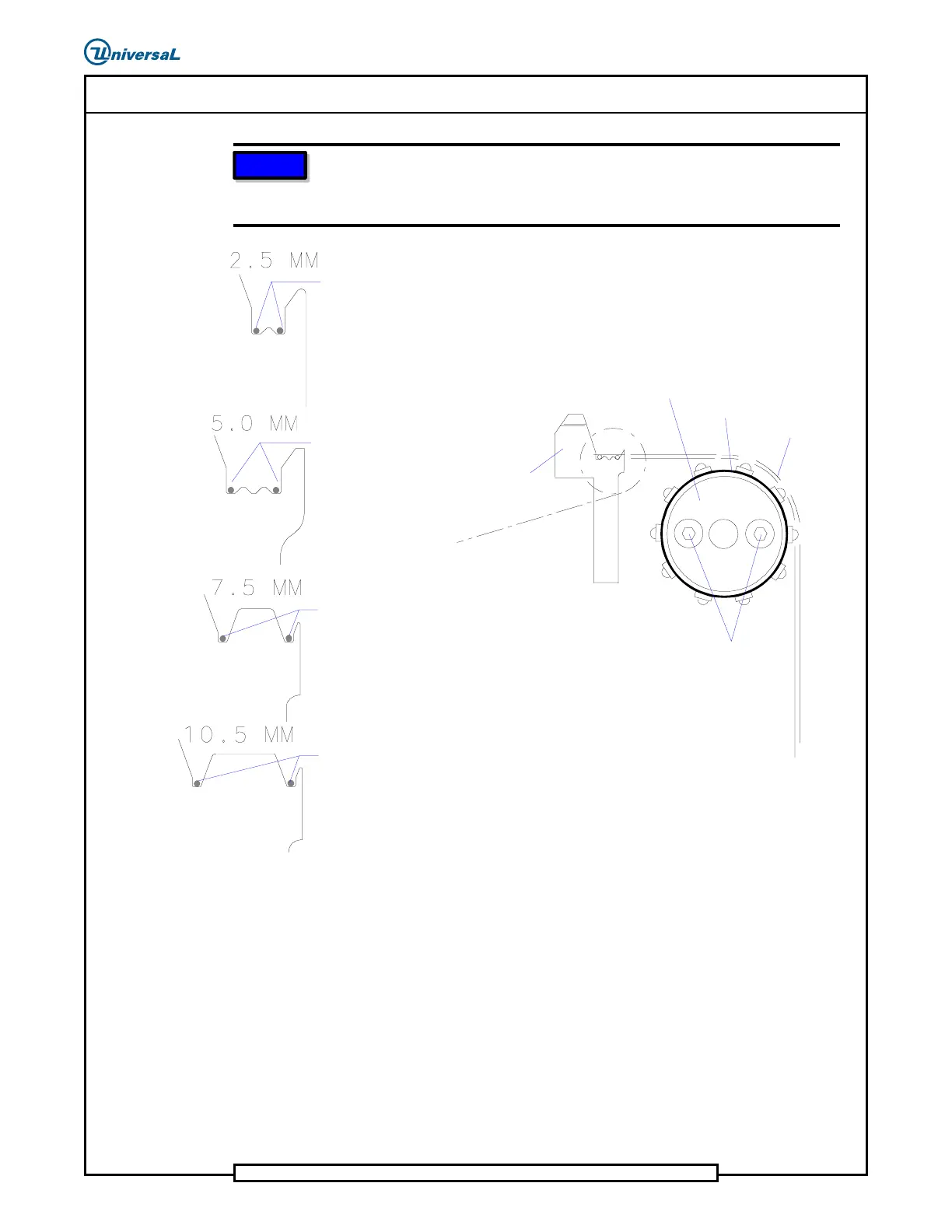

For 2.5mm and 5.0mm, and 7.5mm and 10mm components, turn the feed
wheel to align the leads as shown in the illustration. In the next step, be
careful to keep the clamp plate parallel with the top of the feed wheel.
5
.
0
Pusher
Socket Head Cap Screws
Component Input
Clamp Plate
Feed Wheel
Ensure that the
leads are centered here
Ensure that the
leads are centered here
Ensure that the
leads are centered here
Ensure that the
leads are centered here
6. While holding the feed wheel in place with the pitch wheel tool,
alternately tighten the cap screws.
End of procedure
