49668501 Rev. D Radial 8, 88, HT Feeders (Dispensing Heads)
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)
5. Retract the driver. Loosen the hex jam nut on the shaft of the
pneumatic cylinder and thread the shaft into or out of the driver block
as necessary.
6. Check the dimension and repeat step 4 until the proper dimension is
achieved.

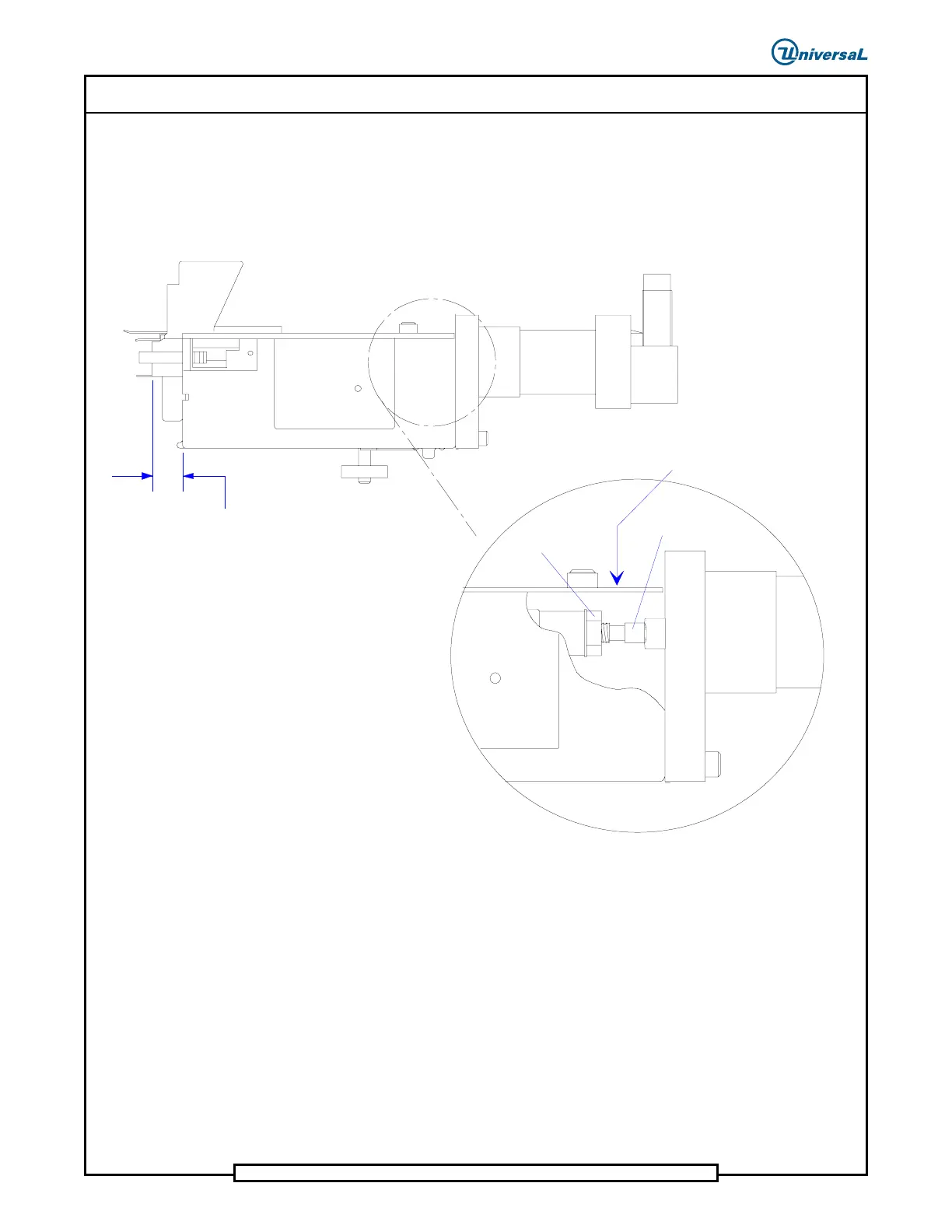

Feeder Side View
(Shown with driver fully extended)
Adjust air cylinder shaft for
.656 ±.002 (16,66 ±0,05mm)
from fully extended driver to
front of housing
Feeder Side View
(Cutaway view with driver fully retracted)
Access jam nut and air cylinder
shaft through slot in top of
dispensing head assembly
Air Cylinder Shaft
Hex Jam Nut
7. Tighten the hex jam nut.
End of procedure
