ARM ASSEMBLE

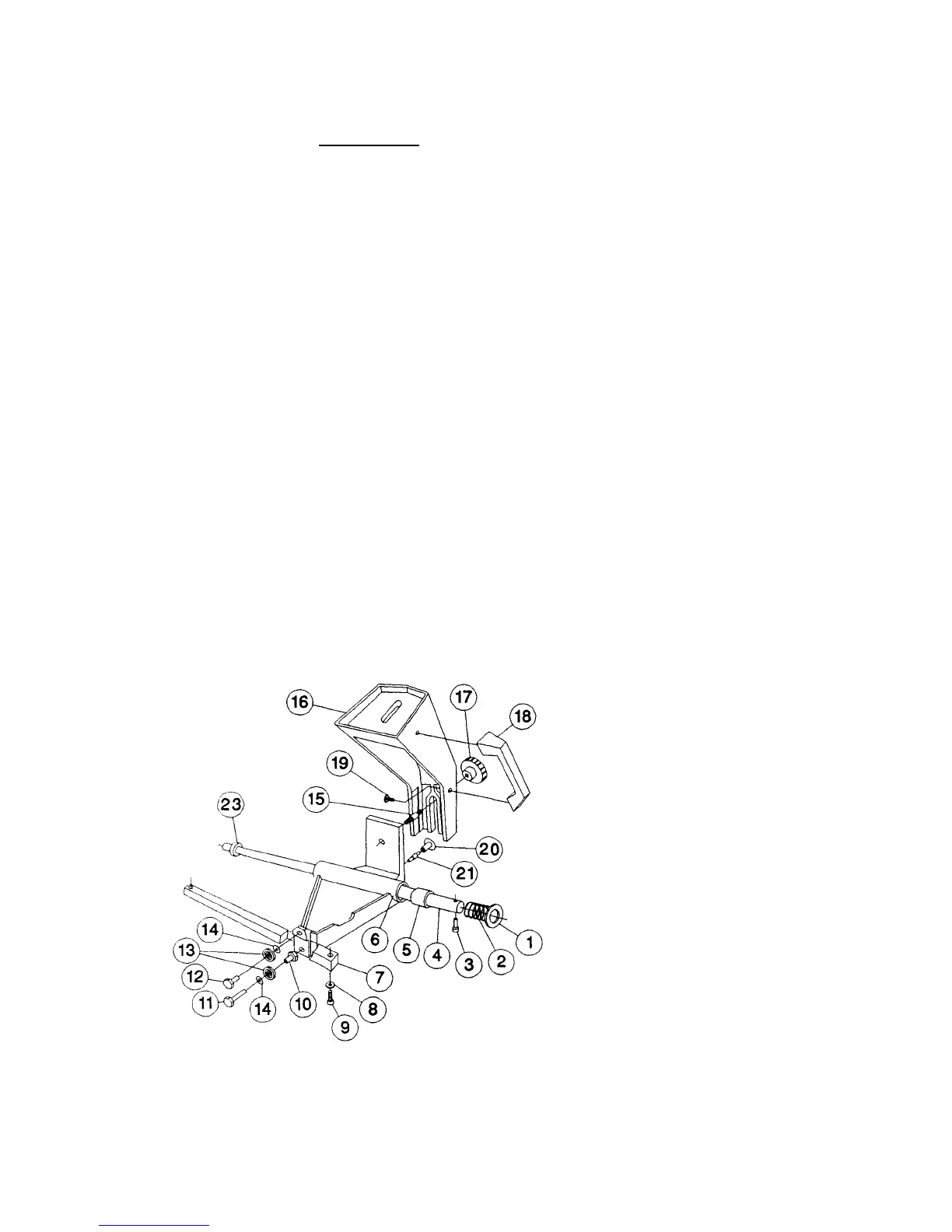

Figure 3
ILLUS.NO. PART NO. DESCRIPTION QTY.
1. 7510038 RUBBER SHOCK ABSORBER 2
2. 8512314 SPRING, DAMPER 2
3. 8512313 SCREW, SOC HD CAP M8-1.25 X 30MM 2
4. 8512312 ROD, ROUND GUIDE 1
5.* 8512301 BUSHING 2
6. 9512300 ARM BUSHING 1
7. 8512316 BAR, FRAME 1
8. 8512318 WASHER, EXTERNAL TOOTH 2
9. 8512317 SCREW 2
10. 9512299 BUSHING, ECCENTRIC 1
11. 1053510 SCREW, CAP, M6-1.0 X 25MM HXHD 1
12. 8512308 BOLT, BEARING LOCKING 1
13. 6509031 BEARING 2
14. 6509028 WASHER, M8 2
15. 6509042 STUD, ARM ATTACHMENT 1
16. 8512319 CARRIAGE ARM 1
17. 6509044 KNOB, CARRIAGE ARM 1
18. 6509045 HANDLE, CARRIAGE ARM 1
19. 6509046 SCREW, HEX HD WASHER M6-1.0 X 15MM 2
20. 8512325 CARRIAGE ANCHOR 1
21. 8512326 STUD, CARRIAGE ANCHOR 1
22.
RESERVED
23. 7510152 SHIM 1
• Illus 5 (8512301) can not be purchased separately; included in Illus 6 (8512300).
