Univex 9512 - Figure 5 Carriage Assembly

9512

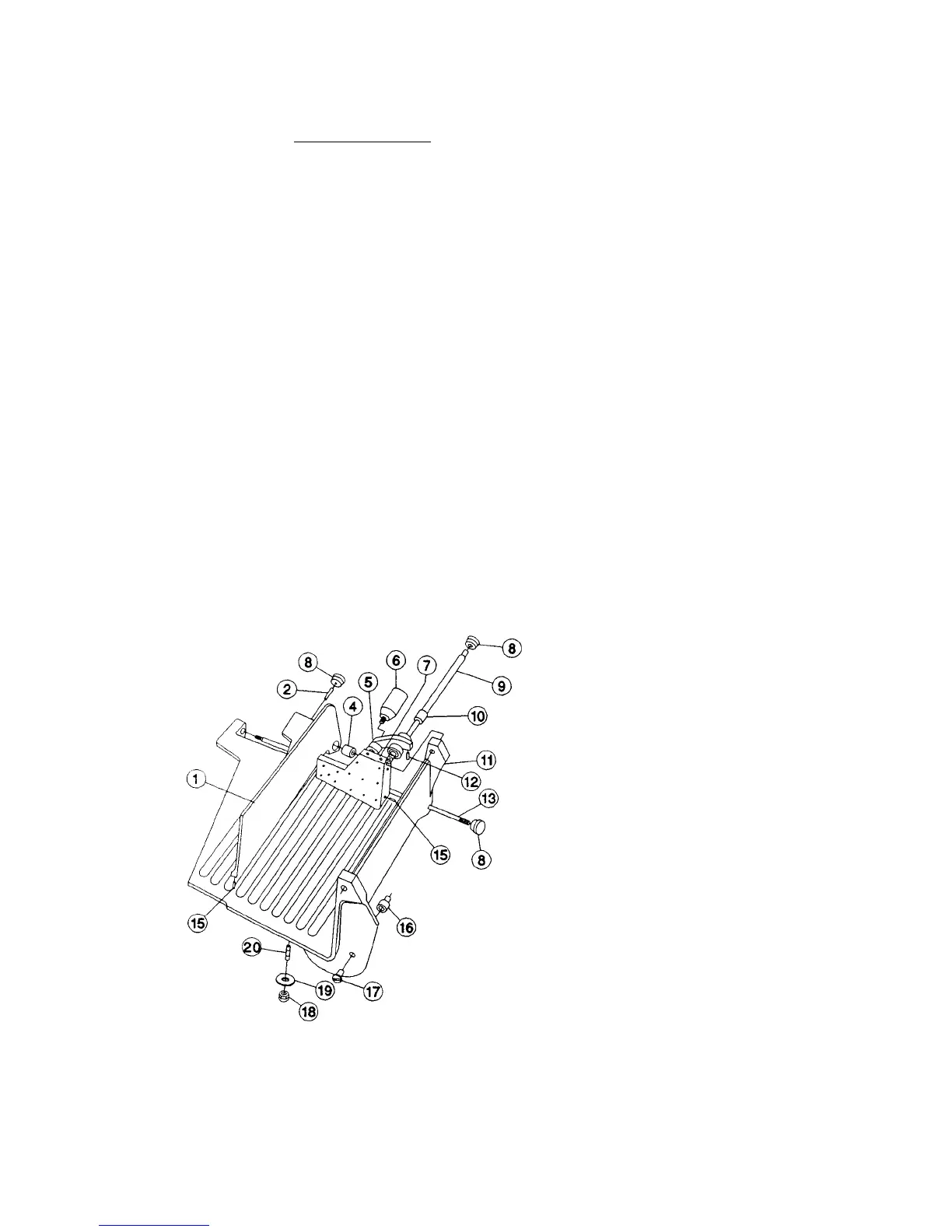

CARRIAGE ASSEMBLY
Figure 5
ILLUS NO. PART NO. DESCRIPTION QTY.
1 8512432 SPACER, ADJUSTMENT 1
2 8512437 STUD & KNOB, ADJUSTMENT SPACER 1
3
RESERVED
4 * 8512433 BUSHING, ADJUSTMENT SPACER 1
5 8512925 SUPPORT, LAST SLICE DEVICE 1
6 8512924 HANDLE, LAST SLICE DEVICE 1
7 8512926 LAST SLICE DEVICE 1
8 6509153 KNOB, LAST SLICE DEVICE SHAFT 3
9 8512428 SHAFT, LAST SLICE DEVICE 1
10 ** 8512427 BUSHING, LAST SLICE DEVICE 1
11 8512425 CARRIAGE 1
12 8512438 NYLON PIP, ADJUSTMENT SPACER 1
13 8512434 SHAFT, ADJUSTMENT SPACER 1
14
RESERVED
15 8512431 NYLON PIP, LAST SLICE DEVICE 8
16 8512927 STUD, LAST SLICE DEVICE 1
17 8512229 SCREW, FLAT HD M5-0.8 X 12MM 1
18 6509058 BOX NUT, M10-1.5 1
19 6509059 WASHER, SPECIAL 1
20 8512439 STUD, CARRIAGE 1
* = PART OF ILLUS 1 (8512432), CANNOT BE PURCHASED SEPARATELY.
**= PART OF ILLUS 5 (8512925), CANNOT BE PURCHASED SEPARATELY.
Page 16
