9512

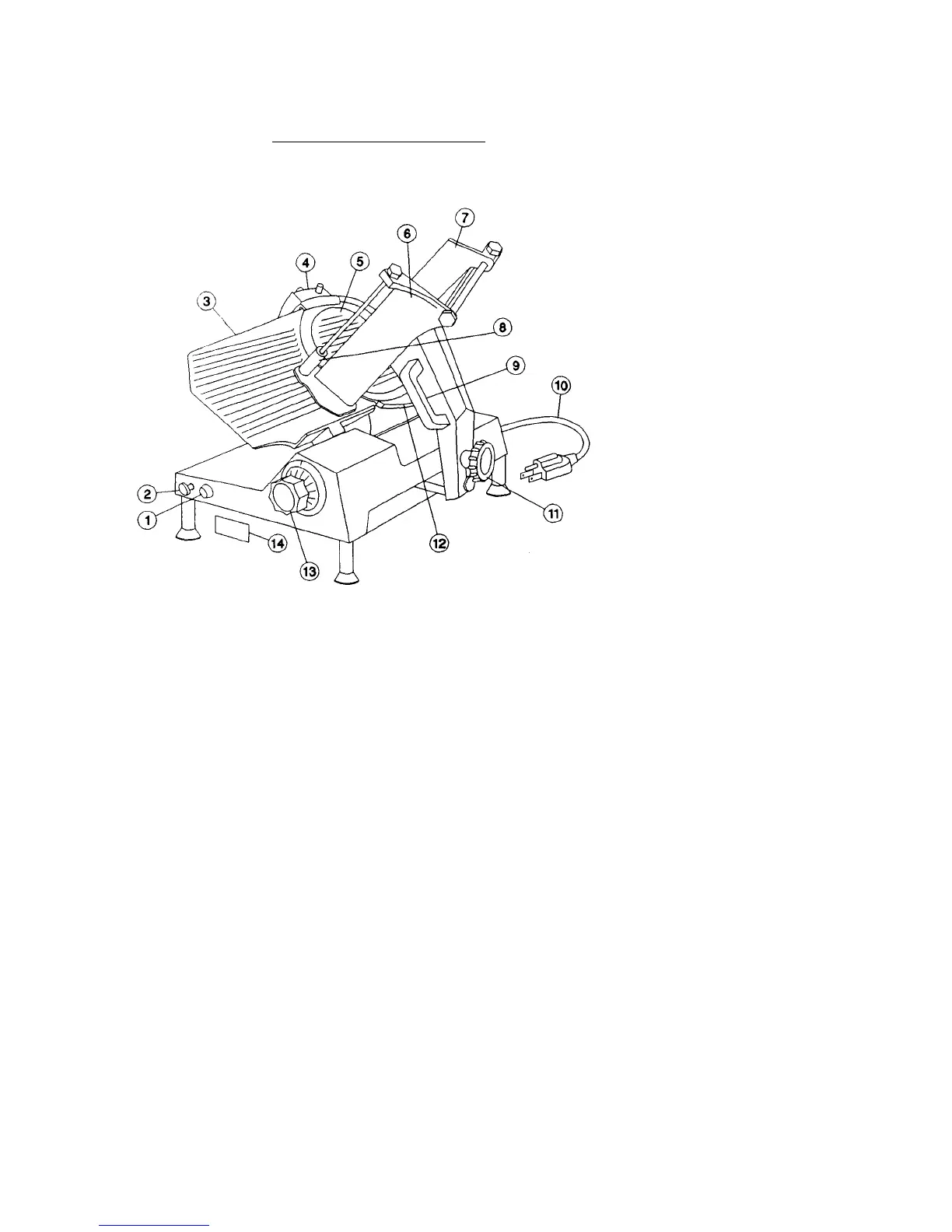

OVERALL VIEW OF MEAT SLICER
Figure 1
1 INDICATOR LIGHT 8 LAST SLICE DEVICE
2 ON-OFF SWITCH 9 CARRIAGE ARM
3 FENCE 10 ELECTRIC CORD
4 KNIFE SHARPENER 11 CARRIAGE ARM KNOB
5 KNIFE GUARD 12 PROTECTIVE GUARD
6 CARRIAGE 13 GRADUATED KNOB
7 ADJUSTMENT SPACER 14 SERIAL NAME PLATE (ON REAR)
Page 2
