Univex 9512 - Figure 4 Slice Control Assembly

9512

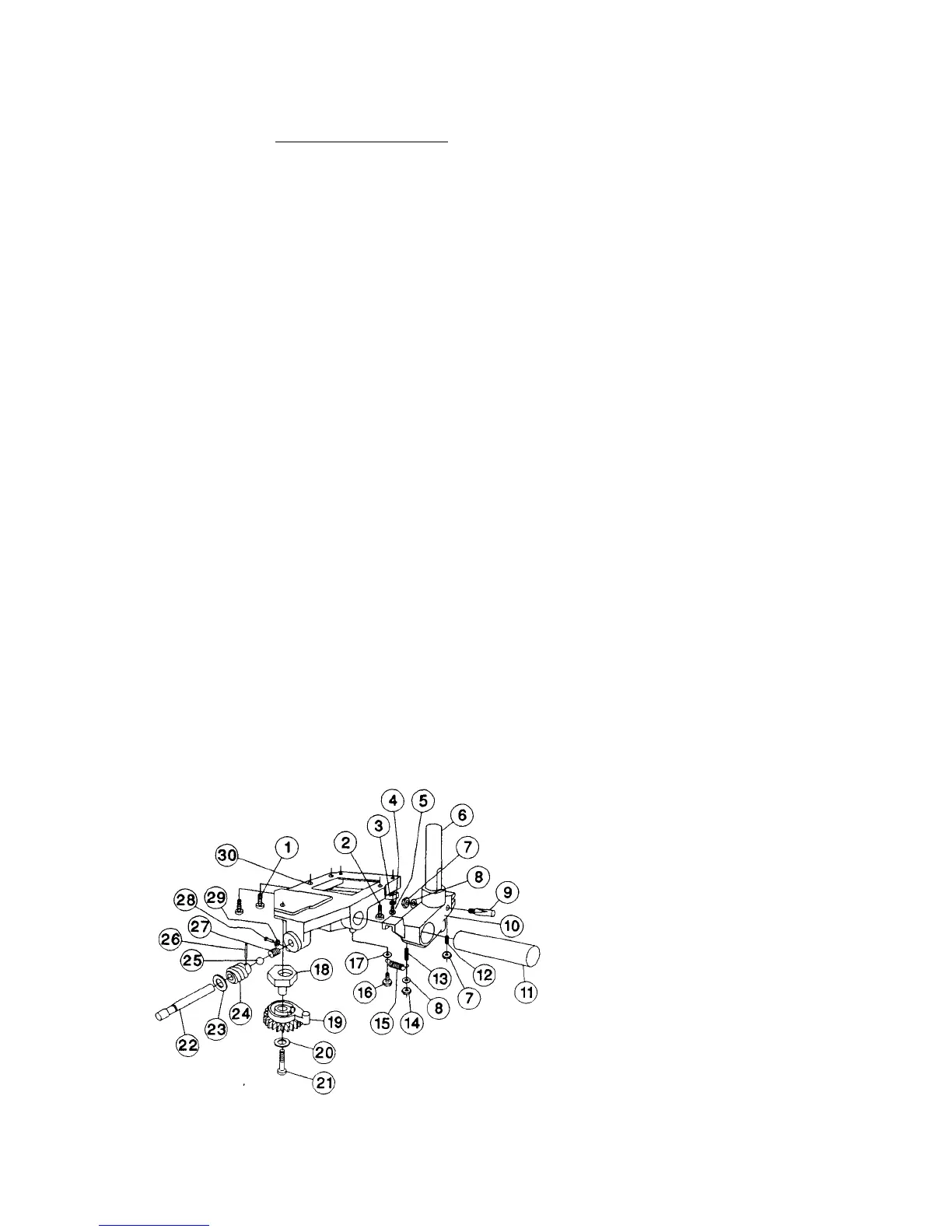

SLICE CONTROL ASSEMBLY
Figure 4
ILLUS.NO. PART NO. DESCRIPTION QTY.
1. 7510067 BOLT, SOC HD CAP M6-1.0 X 20MM 2
2. 8512527 BOLT, HEX HD M8-1.25 X 30MM 1
3. 8512526 JIB 1
4. 8512525 WASHER, EXTERNAL TOOTH M6 2
5. 7510065 SCREW, HEX HD M6-1.0 X 20MM 2
6. 7512076 SUPPORT, TAPER 1
7. 8512839 NUT, M8-1.25 1
8. 6509028 WASHER, M8 2
9. 6509071 STUD, CRANK 1
10. 8512511 BLOCK, SLICE CONTROL MOVING 1
11. 8512512 SHAFT, SLICE CONTROL 1
12. 7510073 STUD, JIB ATTACHMENT 1
13. 8512326 SET SCREW, M8-1.25 X 20MM 1
14. 6509131 NUT, THIN M8-1.25 2
15. 7510061 SPRING 1
16. 8512518 SCREW, HEX HD M6-1.0 X 10MM 1
17. 6509046 WASHER. M6 1
18. 8512501 ECCENTRIC PIN 1
19. 8512502 GEAR 1
20. 8512503 WASHER, SPECIAL 1
21. 8512504 BOLT, HEX HD M8-1.25 X 50MM 1
22. 8512510 SHAFT, GRADUATED KNOB 1
23. 6509086 FLEXIBLE WASHER 1
24. 8512507 WORM GEAR 1
25. 8512506 BALL 1
26. 8512508 ROLL PIN 1
27. 8512505 BALL STUD 1
28. 8512529 SCREW, PAN HD M5-0.8 X 25MM 1
29. 8512530 NUT, M5-0.8 1
30. 8512500 SLICE CONTROL GUIDE UNIT 1
Page 15
