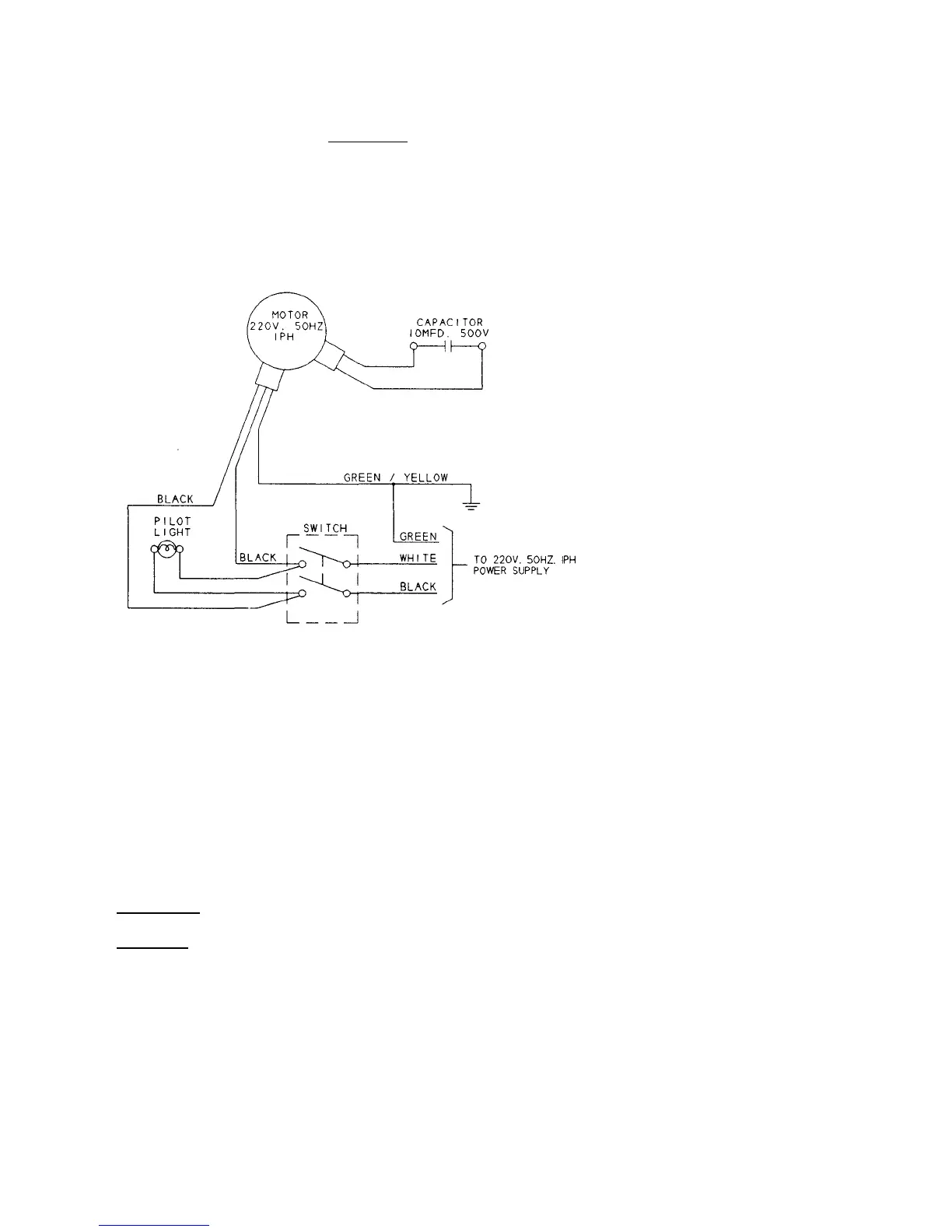

Univex 9512 - Figure 9 Schematic 220 V, 50 HZ, 1 PH, 100 V, 50-60 HZ, 1 PH

9512
SCHEMATIC
220V, 50HZ, 1PH
FIGURE 9
IMPORTANT:
Before making electrical connections, check the specifications on the data plate
to assure they agree with those of your electrical service.
WARNING:
Whenever maintenance is being performed DISCONNECT electrical cord.
Page 21
